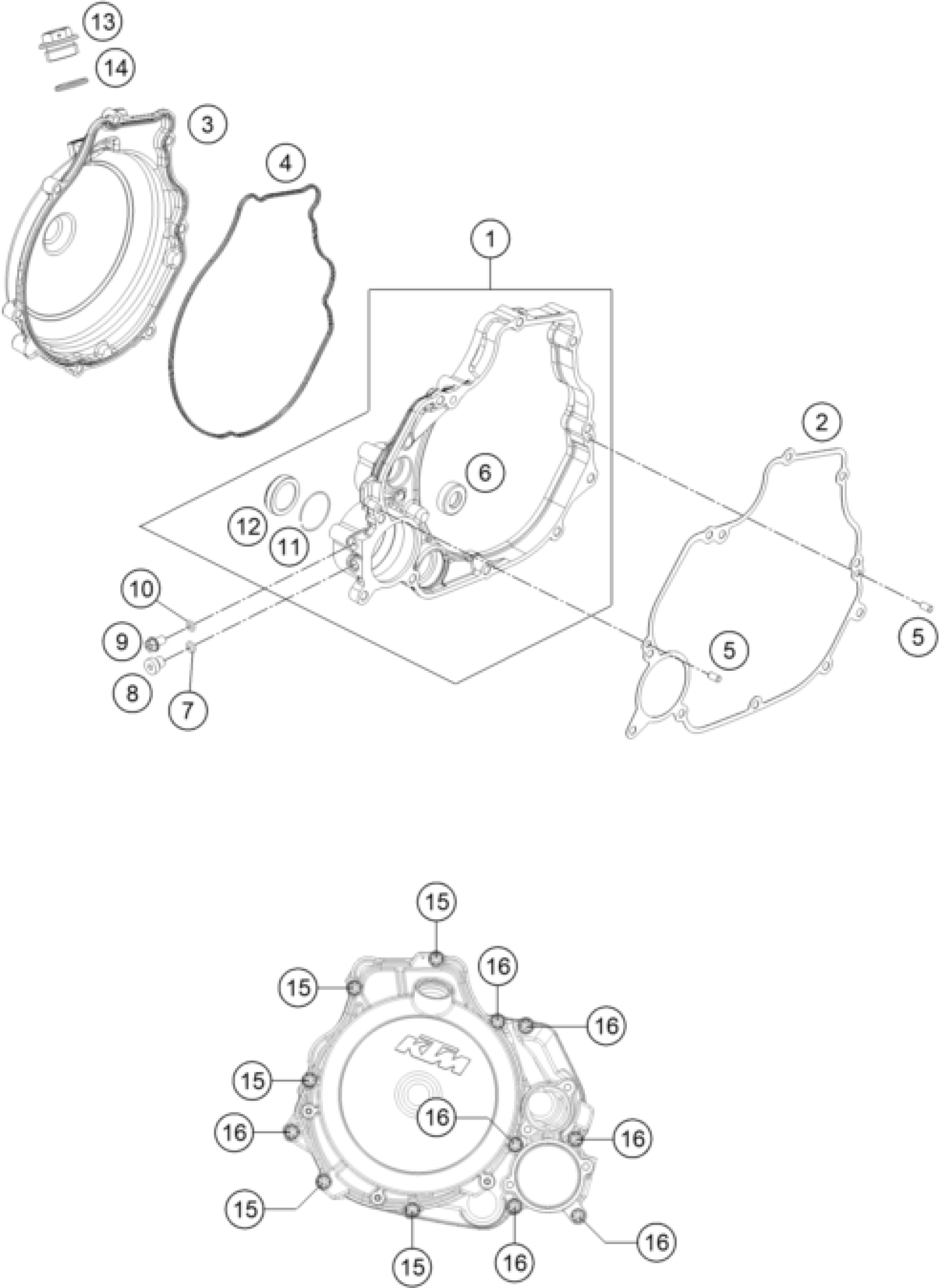

KTM RC 250 R 2013 CLUTCH COVER Diagram

#

Description
Price

1

CLUTCH COVER CPL.

M3230001044

Unavailable

2

CLUTCH COVER GASKET

M3230025000V01

Unavailable

3

OUTER CLUTCH COVER

M3230085000

Unavailable

4

OUTER CLUTCH COVER GASKET

M3230085001

Unavailable

5

needle roller DIN 5402 5x9.8

0402050980

$1.49

6

SHAFT SEAL RING 12X24X7 PTFE

0760122407

Unavailable

7

O-ring 6,00x1,50 NBR 70

0770060015

$5.23

8

PLUG M8X1 DIN 908

0908080013

$3.08

9

HH collar screw M6x10 TX30

0025060106

$3.08

10

O-RING 5,0X1,5

0770050015

Unavailable

11

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

12

OIL LEVEL GLASS VITON

78030095100

$14.02

13

OILPLUG

SB806450200

Unavailable

14

O-RING 19,00X3,00 NBR

0770191015

$2.05

15

HH collar screw M6x50 TX30

0025060506

$3.08

16

HH collar screw M6x25 TX30

0025060256

$3.08
