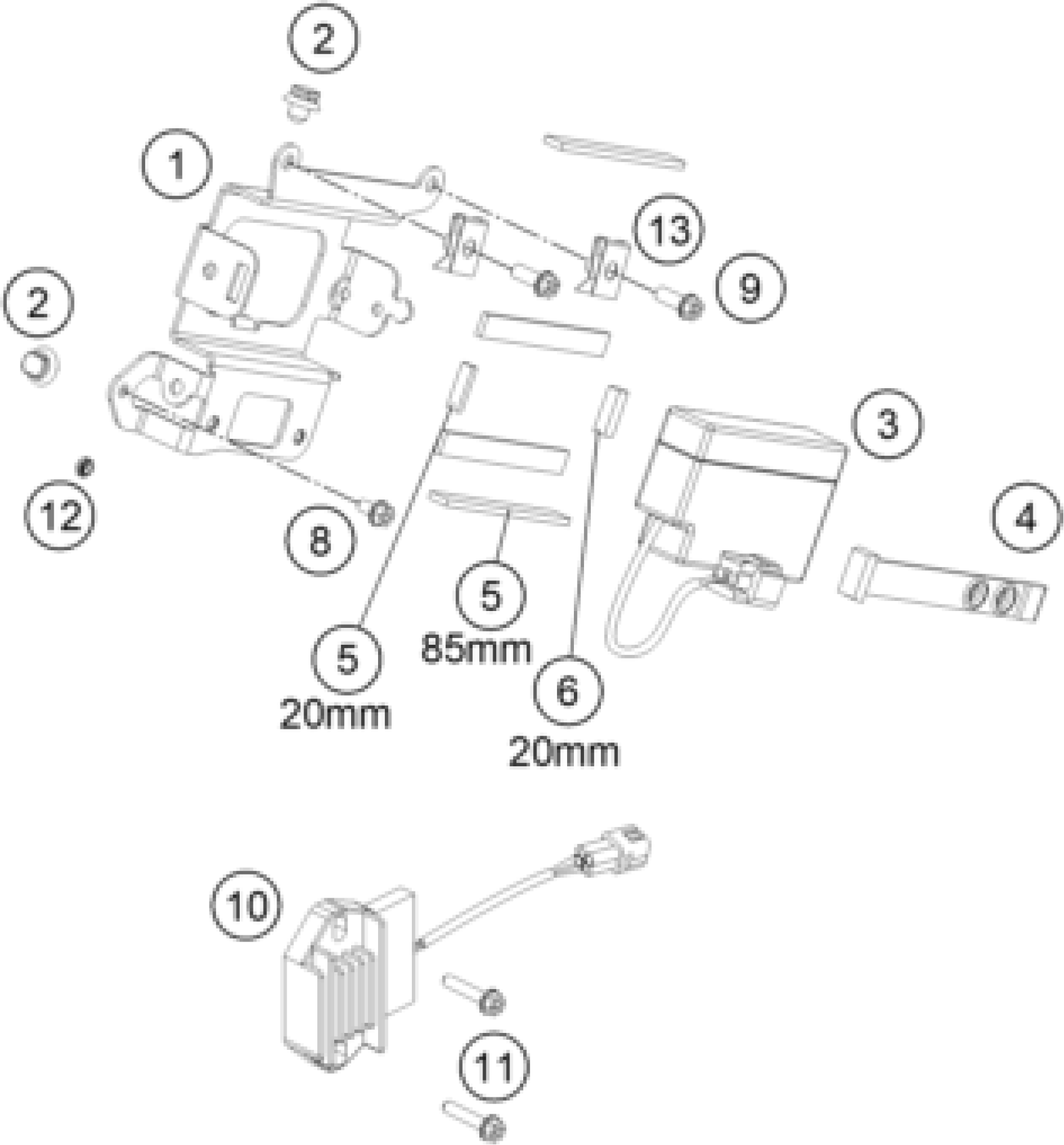

KTM RC 250 R 2013 BATTERY Diagram

#

Description

Price

1

BATTERY HOLDER BRACKET

B3311054001

Unavailable

2

CABLE TIE CLAMP

B3311090000

Unavailable

3

BATTERY YUASA CPL.

B3311053044

Unavailable

4

RUBBER BAND

54611186000

Unavailable

5

FOAM SELF ADHESIVE 3MM

B3311054005

Unavailable

6

FOAM SELF ADHESIVE 6MM

B3311054006

Unavailable

8

HH collar screw M5x10 TX30

0025050106

Unavailable

9

HH collar screw M6x16 TX30

0025060166

Unavailable

10

Voltage regulator

77211034000

Unavailable

11

HH collar screw M5x16 TX30

0025050166

Unavailable

12

PRESS NUT M5

54603055052

Unavailable

13

clip nut M6

54603048100

Unavailable
