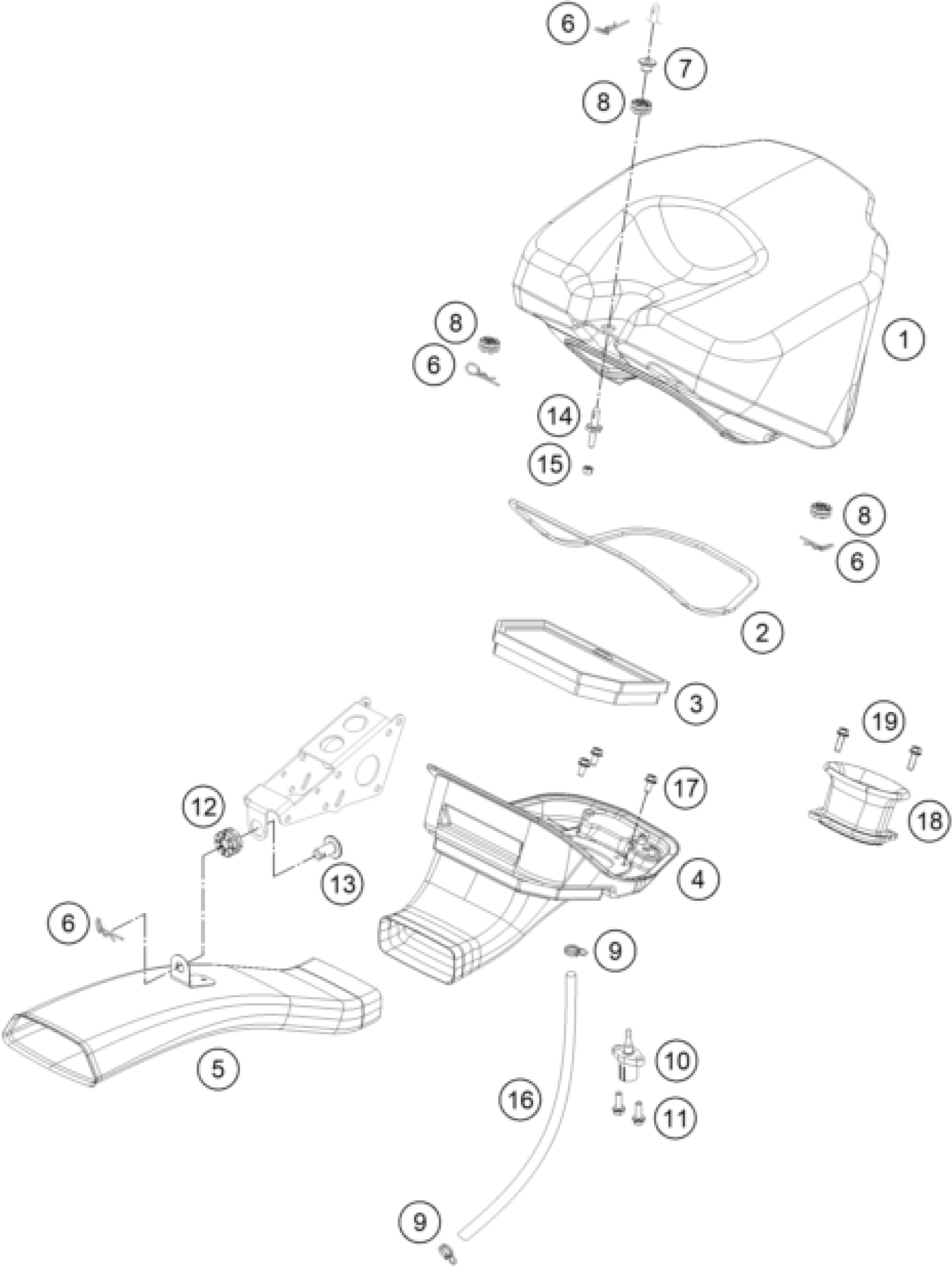

KTM RC 250 R 2013 AIR FILTER Diagram

#

Description
Price

1

AIRBOX COVER UNPAINTED

B3306003044

Unavailable

10

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

17

HH collar screw M5x10 TX30

0025050106

Unavailable

18

INTAKE AIR DUCT L210

B3341040106

Unavailable

19

HH collar screw M5x16 TX30

0025050166

Unavailable

2

AIRBOX SEAL B33+R33

B3306040002

Unavailable

3

AIR FILTER B33+R33

B3306015000

Unavailable

4

REAR INTAKE DUCT B33+R33

B3306040044

Unavailable

5

FRONT INTAKE DUCT B33+R33

B3306041044

Unavailable

6

R-CLIP SMALL

B3306016000

Unavailable

7

BUSH

B3306010000

Unavailable

8

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

9

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

11

HH collar screw M5x16 TX30

0025050166

Unavailable

12

RUBBER DAMPER

GP3350120100

Unavailable

13

LOCATOR PIN

M3235012000

Unavailable

14

AIRBOX PIN

B3303070000

Unavailable

15

HEXAGON NUT DIN0934-M 5

0934050003

Unavailable

16

ENGINE BREATHER TUBE 00

59031050100

Unavailable
