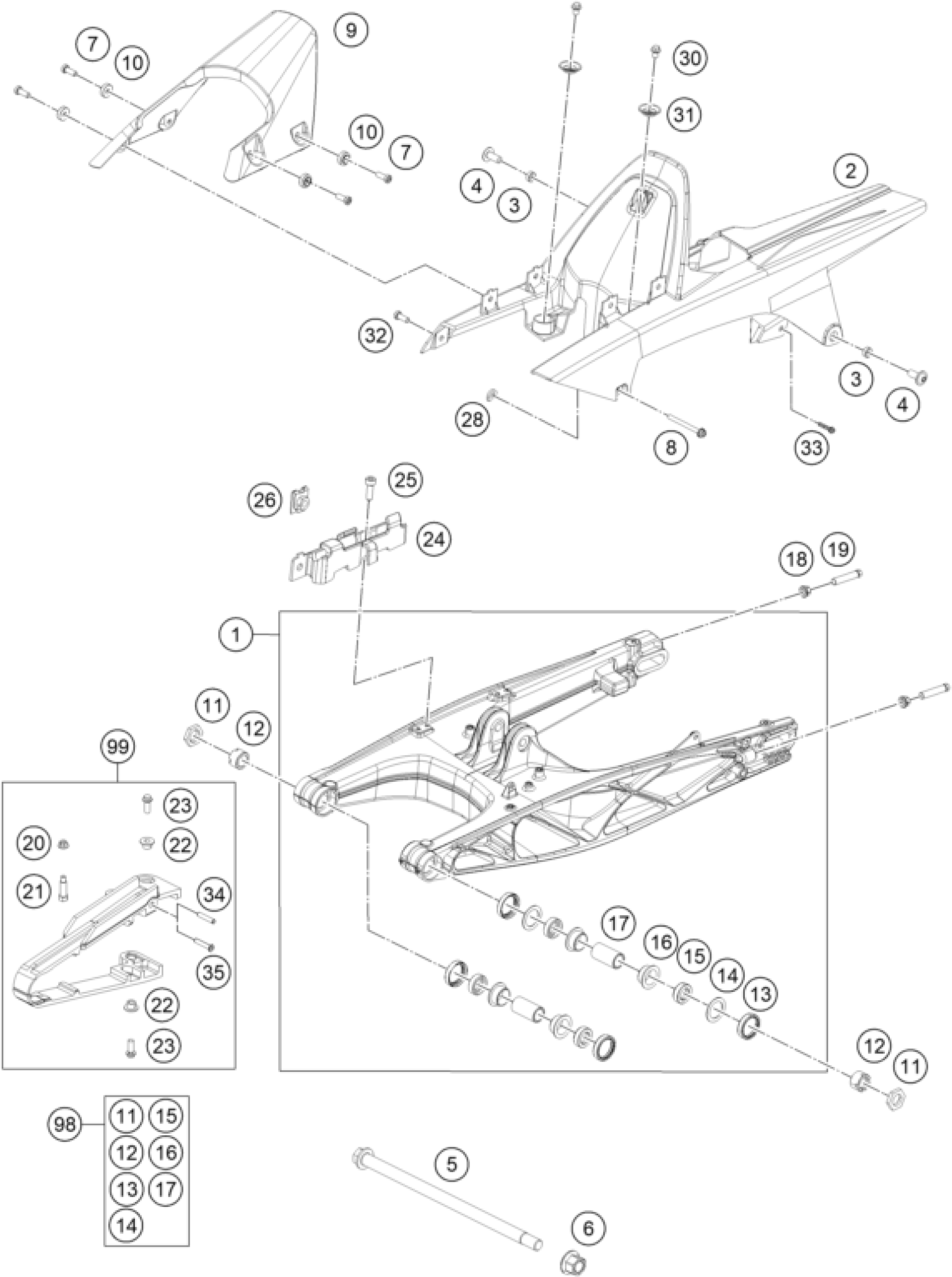

KTM RC 250 ORANGE B.D. 17 <2017> SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL.

90504030044

$437.20

2

CHAIN COVER BLACK

9050406000033

$30.00

3

SLEEVE FOR CHAIN COVER

90504060050

$2.05

4

AH SCREW M8X20

90508008001

$1.49

35

SLEEVE CHAIN GUARD

90904070020

Unavailable

5

Shaft swing arm L=299mm

90104037000

$17.76

6

FLANGED NUT M14X1.5

90104038000

$3.08

7

BOLT SOCKET M6X1XL

90808043001

$1.49

8

BOLT FLANGED M5X0.8XL

J025050504

$1.49

9

REAR FENDER HD

90504050100

Unavailable

10

SPECIAL WASHER

90508046000

$4.11

11

hex thrust washer

90104042000

$3.64

12

swingarm adjusting ring

90104046000

$5.88

13

OIL SEAL RING 25X32X7

90104034001

$3.08

14

Thrust washer 22.2x31.7x1

90104036000

$1.49

15

cup for radial shaft seal

90104034000

$4.11

16

Igus plain bearing

90104031000

$5.23

17

sleeve bushing 15.1x20x38

90104032000

$6.63

18

flanged hex nut M10x1.25 WS13

90104010002

$2.05

19

BOLT HEX M10X1.25X50 WS10

90104040000

$5.23

20

HH COLLAR NUT

90204060001

$1.49

21

screw M5x0.8x30

90104040100

$1.49

22

chain slider bushing

90604062000

$1.49

23

HH COLLAR SCREW M6X16 SW8

J025060169

$1.49

24

BRAKE HOSE GUIDE

90513147000

$3.08

25

AH SCREW M5X14 BLACK

J912050151

$1.49

26

clip nut

90103097000

$4.11

28

WASHER CHAIN SLIDING GUARD

90504067000

$1.49

34

SLEEVE CHAIN GUARD

90104070020

Unavailable

30

HH COLLAR SCREW M6X8 SW8

J025060083

$1.49

31

BUCKET

90104067000

$3.08

32

SPECIAL SCREW M6X1X16

90808043000

$1.49

33

SCREW SELF TAP D=6

90504060001

$1.49

98

SWINGARM REP. KIT 11-17

90104230010

Unavailable

99

CHAIN GUARD KIT 250/390

90104066210

Unavailable
