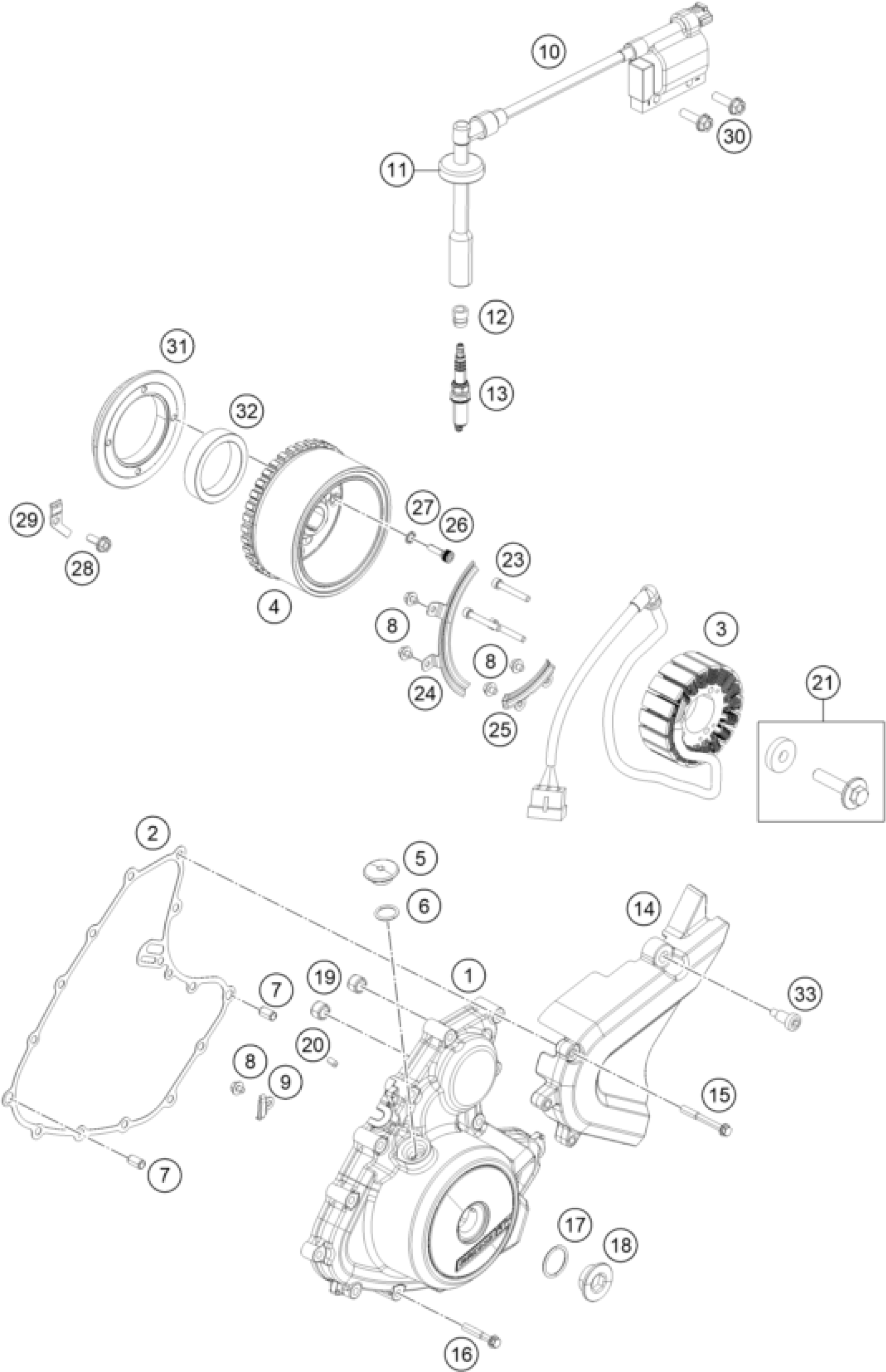

KTM RC 250 ORANGE B.D. 17 <2017> IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER

93730002000

$87.88

2

GASKET IGNITION COVER

93730040000

$5.51

3

STATOR CPL.

90839004100

$104.24

4

ROTOR CPL.

90839005000

$134.26

5

PLUG

90139010000

$4.11

6

O-RING 15,8X2,4

J770015824

$1.49

7

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

8

HH COLLAR SCREW M5X6

J025060083S

$1.49

9

BRACKET HARNESS MAGNETO

90230062000

$2.05

10

ignition coil cpl. with plug

90239006044

$39.45

11

RUBBER GASKET SPARK PLUG

90239090001

$2.05

12

RUBBER GASKET SPARK PLUG

90139093001

$2.05

13

SPARK PLUG M12X1,25

90239093000

$8.22

14

front sprocket cover

90230060002

$12.71

15

FLANGED BOLT M6X50 WS8

J025060500

$1.49

16

Hex collar screw M6X35

J025060353

$1.49

17

O-RING 24X2,5

J770024015

$3.08

18

PLUG SCREW M24X1,5

90230094000

$2.05

19

BUSH STARTER SHAFT

90240018000

$4.11

20

OIL NOZZLE

90230066300

$1.49

21

ROTOR SCREW CPL.

90239005050

$5.41

23

SOCKET HEAD BOLT M5X0,8X40

90530002010

$1.49

24

PLATE HARNESS MAGNETO

90230058000

$3.08

25

PLATE HARNESS 2

93730059000

$1.49

26

SOCKET HEAD SCREW M6X20

90130001001

$1.49

27

TOOTHED LOCK WASHER

90130001002

$1.49

28

HH COLLAR SCREW M6X16

90130059000

$1.49

29

RETAINER GEAR STARTER

90240020002

$1.49

30

HH COLLAR SCREW M6X20

J025060209

$1.49

31

SUPPORT FREEWHEEL CLUTCH

90130001000

$37.95

32

FREEWHEEL CLUTCH

90140026000

$97.42

33

special screw M6x24 WS6

90104060010

$1.49
