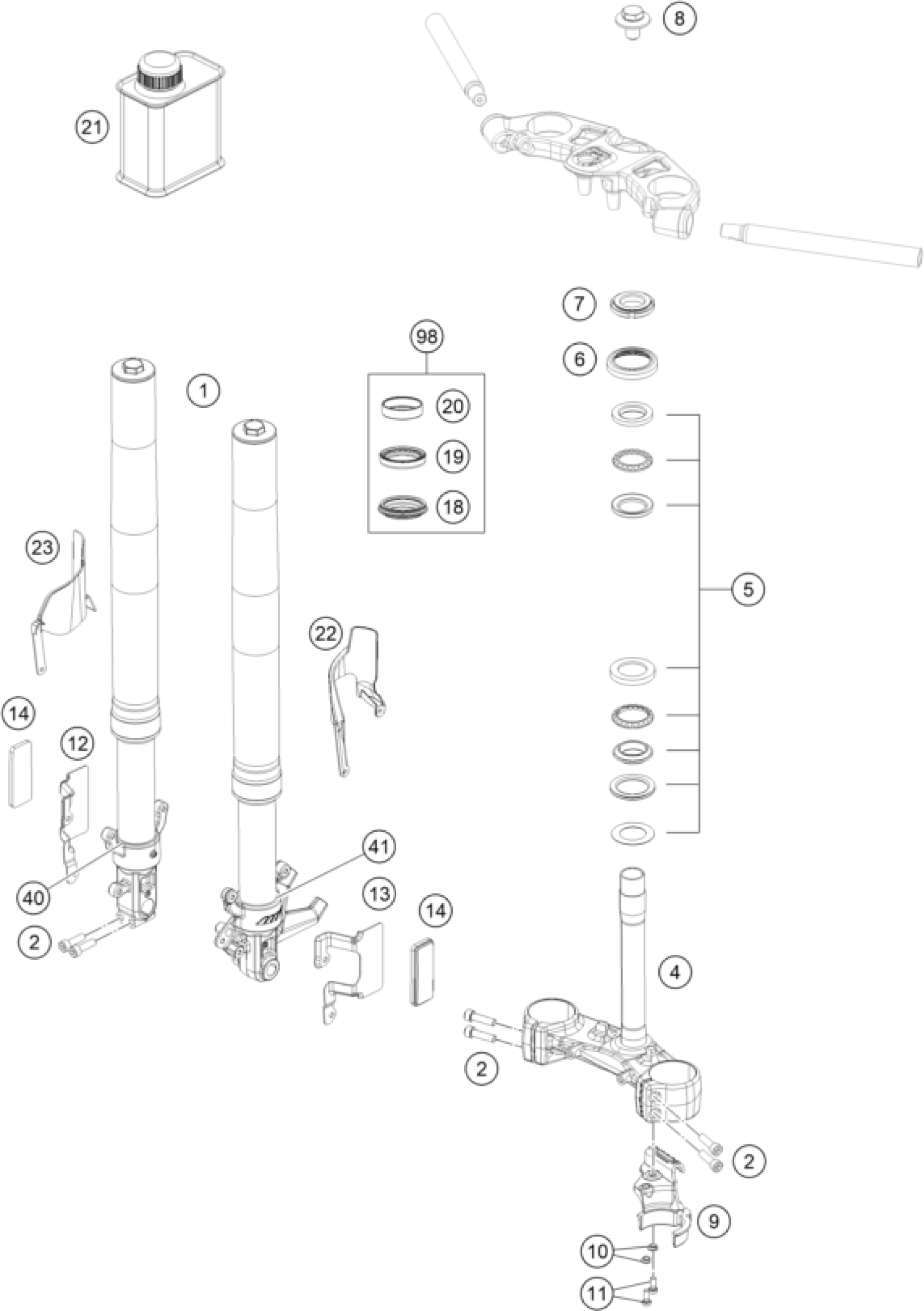

KTM RC 250 ORANGE B.D. 17 <2017> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

leg assembly left - heavy duty

93801001100

Unavailable

1

Leg assembly right - heavy dut

93801002100

Unavailable

2

AH SCREW M8X1.25X30

90501045000

Unavailable

4

Lower triple clamp cpl.

9010103210033

Unavailable

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

Unavailable

7

adjusting ring steering head

90101036000

Unavailable

8

steering head screw

90501044000

Unavailable

9

HOSE CLAMP

90113055000

Unavailable

10

sleeve for hose clamp

90113055010

Unavailable

11

AH SCREW M6X15 10.9

J021060156

Unavailable

12

BRACKET SIDE REFLECTOR FR R/S

90512181000

Unavailable

13

BRACKET SIDE REFLECTOR FR L/S

90512081000

Unavailable

14

SIDE REFLECTOR FRONT

90512082000

Unavailable

18

Dirt scarper SKF 43mm black

43570624

Unavailable

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

Unavailable

20

Guide bushing 43x47x12

43570618

Unavailable

21

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

40

Axle clamp and fork pipe right

93501007000

Unavailable

41

Axle clamp and fork pipe left

93501006000

Unavailable

98

REP. KIT FORK KPL.

90101000010

Unavailable

22

FORK PROTECTION L/S

90101092000

Unavailable

23

FORK PROTECTION R/S

90101093000

Unavailable
