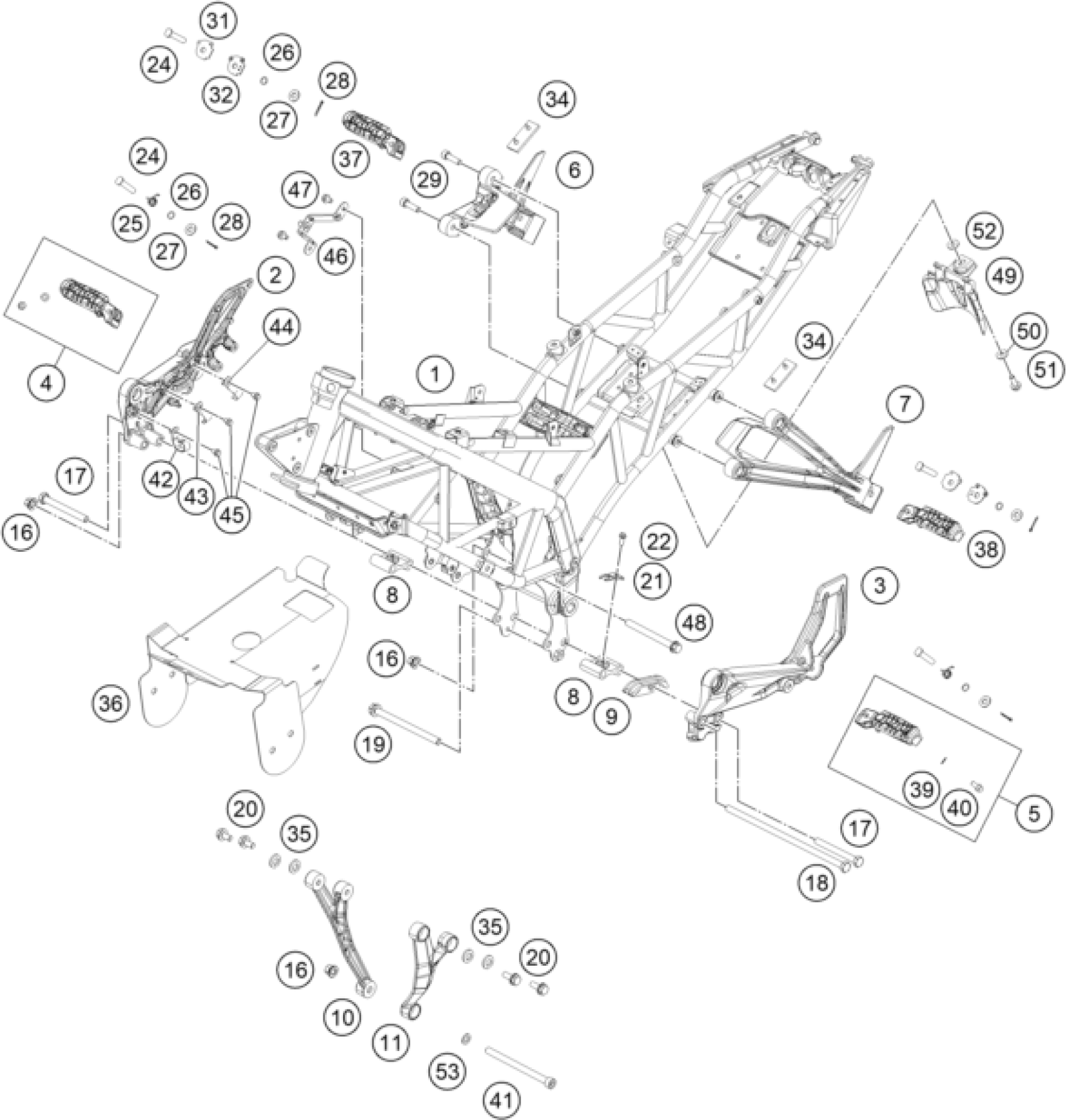

KTM RC 250 ORANGE B.D. 17 <2017> FRAME Diagram

#

Description
Price

1

Frame

9350300110030

Unavailable

2

FOOTREST BRACKET FRONT R/S

90503039000

$68.43

3

FOOTREST BRACKET FRONT L/S

90503038000

$70.86

4

footrest front right cpl.

90103041033

Unavailable

5

footrest front left cpl.

90103040033

Unavailable

6

FOOTREST BRACKET REAR R/S

90503049000

$55.53

7

FOOTREST BRACKET REAR L/S

90503048000

$55.53

8

footrest support holder, front

90103038001

$9.90

9

chainguide

90104070000

$10.84

10

Engine brace right

93303006000

$18.22

11

Engine brace left250/390

93303005000

$17.66

16

FLANGED NUT M10X1.25 WS14

90103038002

$2.05

17

HH COLLAR SCREW M10X1,25X92

J025100926

$3.08

18

HH COLLAR SCREW M10X1,25X265

J025102656

$6.35

19

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

20

SOCKET HEAD SCREW M8X25 8.8

J912080253

$1.49

21

CABLE BRACKET

90111045050

$1.49

22

FLANGED BOLT M6X14

90103032000

$1.49

24

BOLT FOR FOOTREST

90503045000

$1.49

25

footrest return spring

90103042000

$4.11

26

O-RING 9X1,5

J770009015

$1.49

27

WASHER D=8,5

90503048010

$2.05

28

PIN 25X1,8MM

J094018250

$1.49

29

BOLT SOCKET M8X1.25XL

90503098000

$1.49

31

LOCK PLATE LOWER

90503053000

$1.49

32

LOCK PLATE UPPER

90503052000

$1.49

34

RUBBER DAMPER FOR FOOTREST

90503050000

$2.05

35

WASHER M8

J125080005

$1.49

36

HEAT SHIELD

90805090000

$16.07

37

footrest rear right cpl.

90103051033

$21.87

38

footrest rear left cpl.

90103050033

$21.87

39

PLAIN WASHER 6,4X12X1

90103040001

$1.49

40

CAP SCREW M6X10 SS

J029060103S

$2.05

41

BOLT M10X135

90203008000

$5.23

42

BRAKE HOSE GUIDE FRONT

90113025000

$1.49

43

BRACKET HOSE CLAMP 2

90513046000

$1.49

44

BRACKET HOSE CLAMP 1

90513045000

$1.49

45

HH COLLAR SCREW M6X8 SW8

J025060083

$1.49

46

BRACKET SIDECOVER

90503034000

$4.11

47

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

48

HH COLLAR SCREW M10X110 WS14

J025101103

$3.08

49

SPLASH PROTECTION

93808073000

Unavailable

50

WASHER

90108015020

$1.49

51

HH COLLAR SCREW M6X18 SW10

J025060183

$1.49

52

COLLAR UNDER TRAY

90508016060

$1.49

53

Washer M10

J125100009

$1.49
