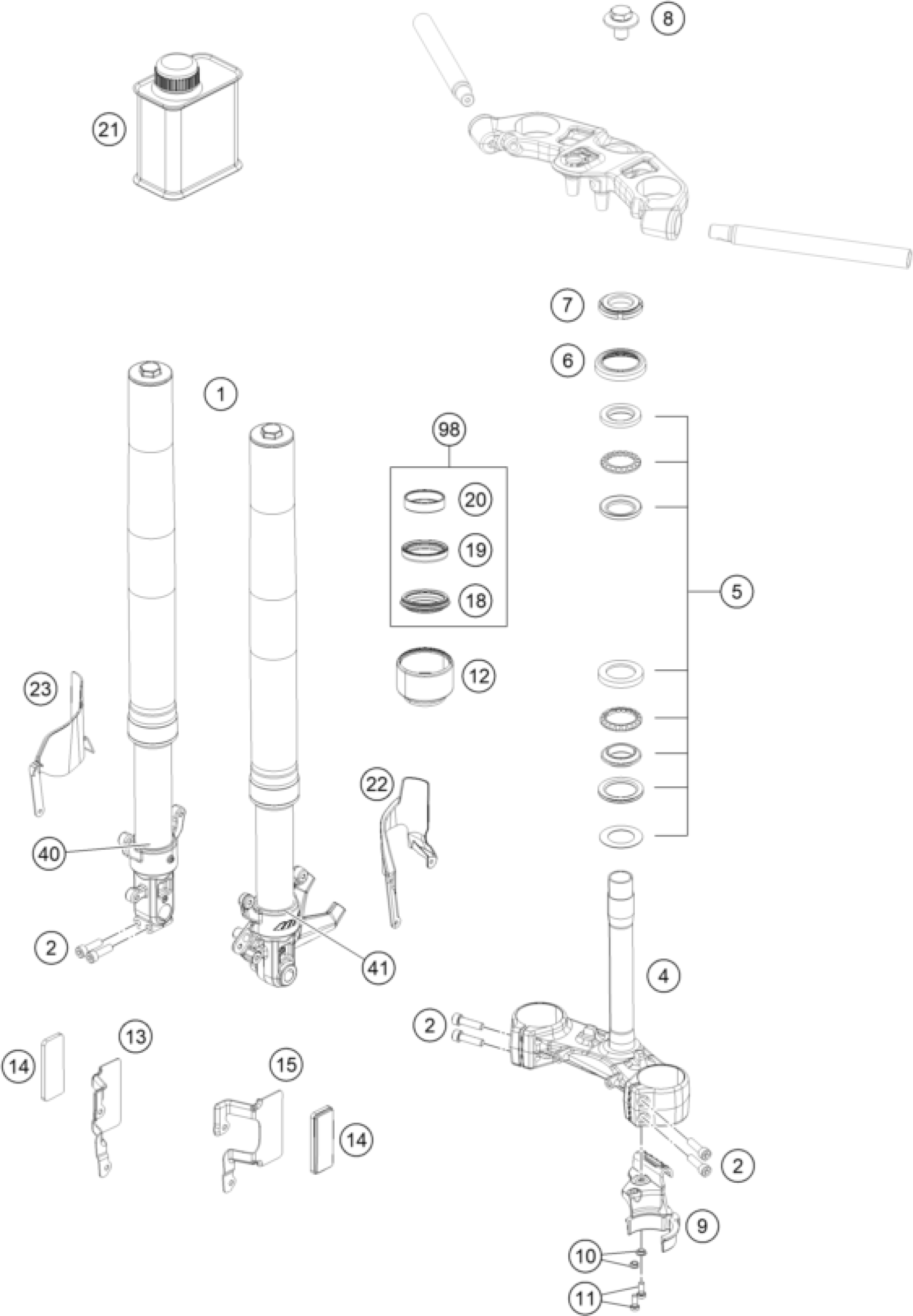

KTM RC 200 WHITE W/O ABS CKD 16 <2016> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK LEG L/S CPL.

90501101000

Unavailable

1

FORK LEG R/S CPL.

90501102000

Unavailable

2

AH SCREW M8X1.25X30

90501045000

$1.49

4

Lower triple clamp cpl.

9010103210033

$434.11

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

$3.08

7

adjusting ring steering head

90101036000

$5.88

8

steering head screw

90501044000

$13.92

9

HOSE CLAMP

90113055000

$7.28

10

sleeve for hose clamp

90113055010

$1.49

11

AH SCREW M6X15 10.9

J021060156

$1.49

18

Dirt scarper SKF 43mm black

43570624

$16.73

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

$16.63

20

Guide bushing 43x47x12

43570618

$11.68

21

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

22

FORK PROTECTION L/S

90101092000

Unavailable

23

FORK PROTECTION R/S

90101093000

Unavailable

98

REP. KIT FORK KPL.

90101000010

Unavailable

41

AXLE CLAMP CPL. WITH PIPE L/S

90101006144

$351.18

40

WHEEL CLAMP CPL. WITH PIPE R/S

90101007044

$289.00

12

FORK FRONT DUST COVER

90201025000

$4.11

13

BRACKET SIDE REFLECTOR FR R/S

90512181000

$4.11

14

SIDE REFLECTOR FRONT

90512082000

$5.23

15

BRACKET SIDE REFLECTOR FR L/S

90512081000

$5.23
