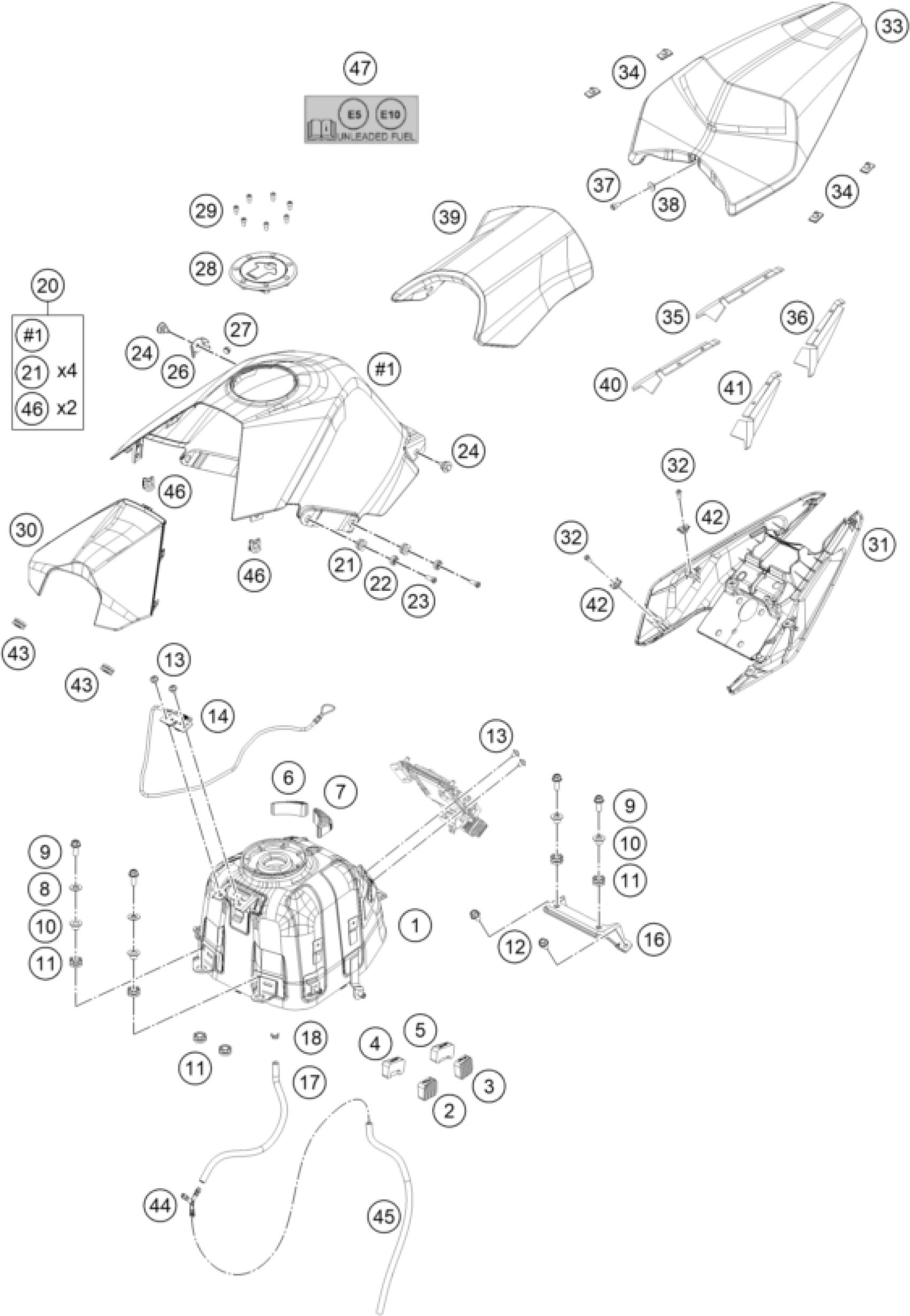

KTM RC 200, white, w/o ABS 2019 TANK, SEAT Diagram

#

Description
Price

1

Fuel tank compl.

93607013000

Unavailable

2

TANK PAD FRONT L/S

90507011040

$2.05

3

TANK PAD REAR L/S

90507011060

$2.05

4

TANK PAD FRONT R/S

90507011050

$2.05

5

TANK PAD REAR R/S

90507011070

$2.05

6

TANK PAD TOP R/S

90507011020

$3.08

7

TANK PAD TOP L/S

90507011010

$3.08

8

SLEEVE BATTERY MTG CASE

90511055001

$1.49

9

HH COLLAR SCREW M8X20 SW12

J025080203

$1.49

10

SLEEVE TANK MOUNTING

90507013005

$1.49

11

GROMMET TANK MOUNTING

90507013006

$1.49

12

HH COLLAR SCREW M8X12 SW12

J025080123

$1.49

13

SOCKET HEAD BOLT M6X1X8

90508006004

$1.49

14

LOCK BATTERY CASE CPL.

90508025033

$18.41

16

TANK MOUNTING REAR

90503071000

$7.66

17

HOSE

90507013012

$3.08

18

HOSE CLAMP

90507017000

$1.49

20

TANK COVER BLACK

9050804900033

$105.18

21

RUBBER SLEEVE

90507040001

$1.49

22

WASHER GFN

90508045000

$1.49

23

BOLT SOCKET M6X1XL

90808043001

$1.49

24

SPECIAL SCREW

90107040003

$6.35

26

BRACKET CABLE LID LOCK

90508025070

$1.49

27

GROMMET

90141023003

$1.49

28

Fuel tank cap

93807008000

$86.10

29

AH SCREW M5X14 BLACK

J912050151

$1.49

30

LID BATTERY BLACK

9050802500033

$12.15

31

UNDER TRAY BOTTOM BLACK

9050801800033

$22.99

32

SOCKET HEAD BOLT M5X12

90508018001

$1.49

33

PILLION SEAT

90507049000

$461.23

34

SEAT DUMPER SOZIUS SEAT

90507047041

$3.08

35

PROTECTION SOZIUSSEAT TOP L/S

90507056000

$1.49

36

PROTECTION SOZIUSSEAT TOP L/S

90507055000

$1.49

37

AH SCREW M6X12

90507047001

$1.49

38

COLLAR UNDER TRAY

90508016060

$1.49

39

SEAT

93807040000

$40.94

40

PROTECTION SOZIUSSEAT DOWN R/S

90507058000

$1.49

41

PROTECTION SOZIUSSEAT DOWN L/S

90507057000

$1.49

42

CLIP NUT M5

90108050001

$2.05

43

GROMMET BATTERY BOX

90508024050

$1.49

44

CONNECTOR Y SHAPE

90507015000

$3.08

45

TUBE DRAIN 2

90507013013

$3.08

47

Sticker fuel labelling

21007098000

$3.08

46

clip nut

90103097000

$4.11
