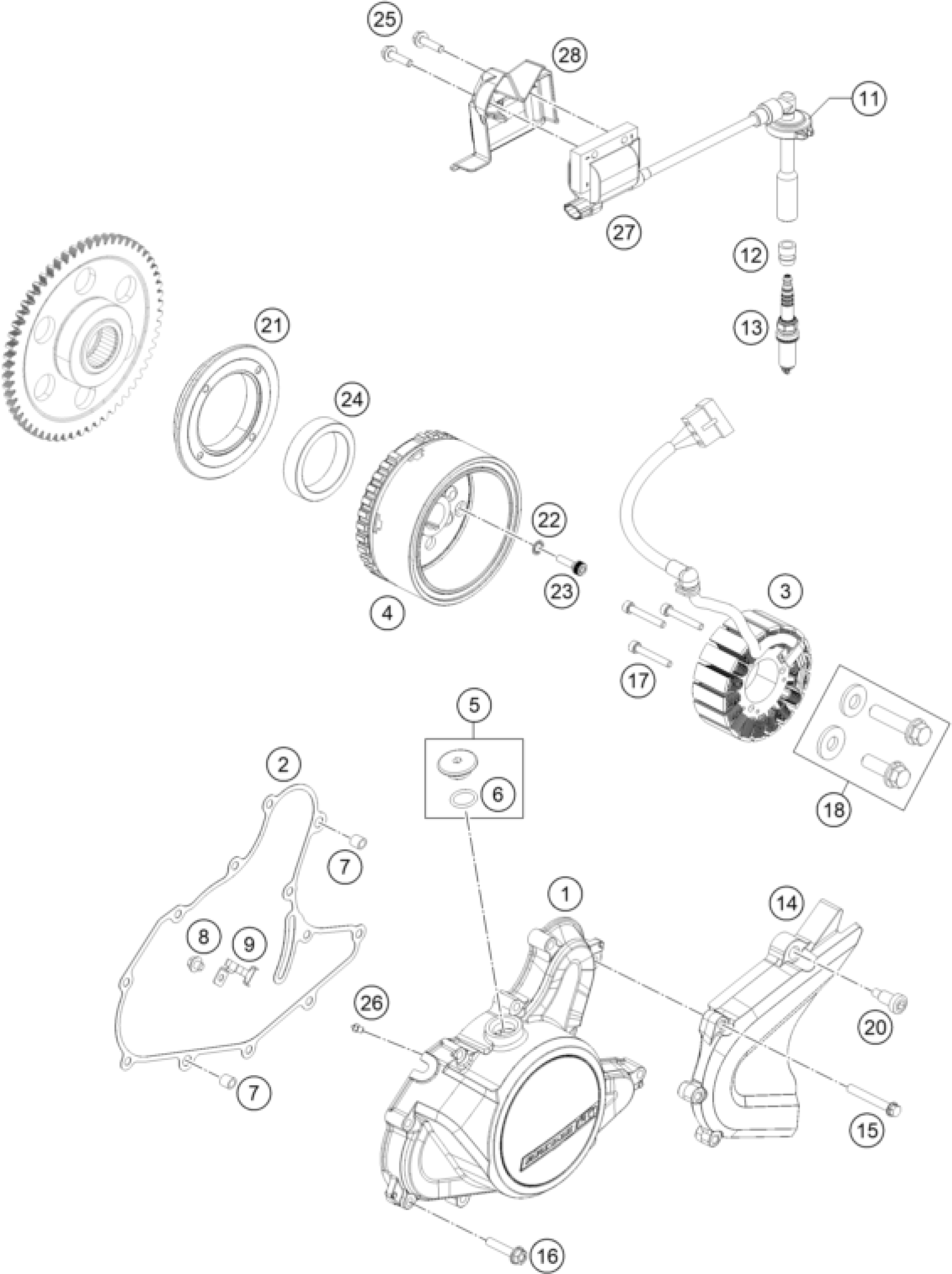

KTM RC 200, white, w/o ABS 2019 IGNITION SYSTEM Diagram

#

Description
Price

1

cover magneto-plug

93030002010

Unavailable

2

Gasket magneto cover

93530040000

Unavailable

3

Stator cmpl.

90539004100

Unavailable

4

ROTOR CPL.

90139005100

Unavailable

5

PLUG INCL. O-RING

90130002010

$4.11

6

O-RING 15,8X2,4

J770015824

$1.49

7

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

8

HH COLLAR SCREW M5X6

J025060083S

$1.49

9

BRACKET F. STATORCABLE

90139004002

$1.49

11

GASKET SPARK PLUG CONNECT.

90139090001

$2.05

12

Sealing boot spark plug

93839091000

$1.49

13

SPARK PLUG M12X1,25

90239093000

$8.22

14

CHAIN SPROCKET GUARD

90103096000

$8.31

15

HH COLLAR SCREW M6X45

J025060451

$1.49

16

HH COLLAR SCREW M6X30

J025060301

$1.49

17

AH SCREW M5X35 SELF LOCKING

J912050353S

$1.49

18

SCREW DRIVE GEAR KIT

90130018044

$9.20

20

special screw M6x24 WS6

90104060010

$1.49

21

SUPPORT FREEWHEEL CLUTCH

90130001000

$37.95

22

TOOTHED LOCK WASHER

90130001002

$1.49

23

SOCKET HEAD SCREW M6X20

90130001001

$1.49

24

FREEWHEEL CLUTCH

90140026000

$97.42

25

HH COLLAR SCREW M6X20

J025060209

$1.49

26

OIL NOZZLE

90130164000

$27.57

27

coil assembly ignition

93039006033

$37.95

28

COVER HT COIL

90508047000

Unavailable
