Description

Price

1

Muffler

93105083000

Unavailable

2

pipe assembly a

94605007033

Unavailable

3

GASKET EXHAUST

90105004100

$5.98

4

GASKET EXHAUST

94305050172

$6.82

5

Exhaust clamp

94305051000

$14.30

6

clip nut

90103097000

$4.11

7

muffler mounting spacer bushin

90205086001

$2.05

8

damper, bottom

90205068000

$2.05

9

BOLT SILENCER MTG

90105000002

$1.49

10

Oxygen sensor

94341090000

$100.69

11

Hex collar nut M6

J926080003

$1.49

12

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

13

muffler mounting tube

90105084000

$4.11

14

damper, bottom

90105068100

$1.49

16

SHIELD ASSEMBLY MUFFLER

28305011033

$50.20

17

GROMMET MUFFLER SHIELD

93805011003

$1.49

18

HH COLLAR SCREW M6X14 SW10

J025060146

$1.49

19

Heat protection, cmpl.

94005065033

$63.76

20

HH COLLAR SCREW M6X90

J026060903

$2.05

21

WASHER 6,5X2 MM

J126061252

$1.49

22

Hexagon nut M6

J926060001

$1.49

23

BOLT FLANGED M6X14

J028060143

$1.49

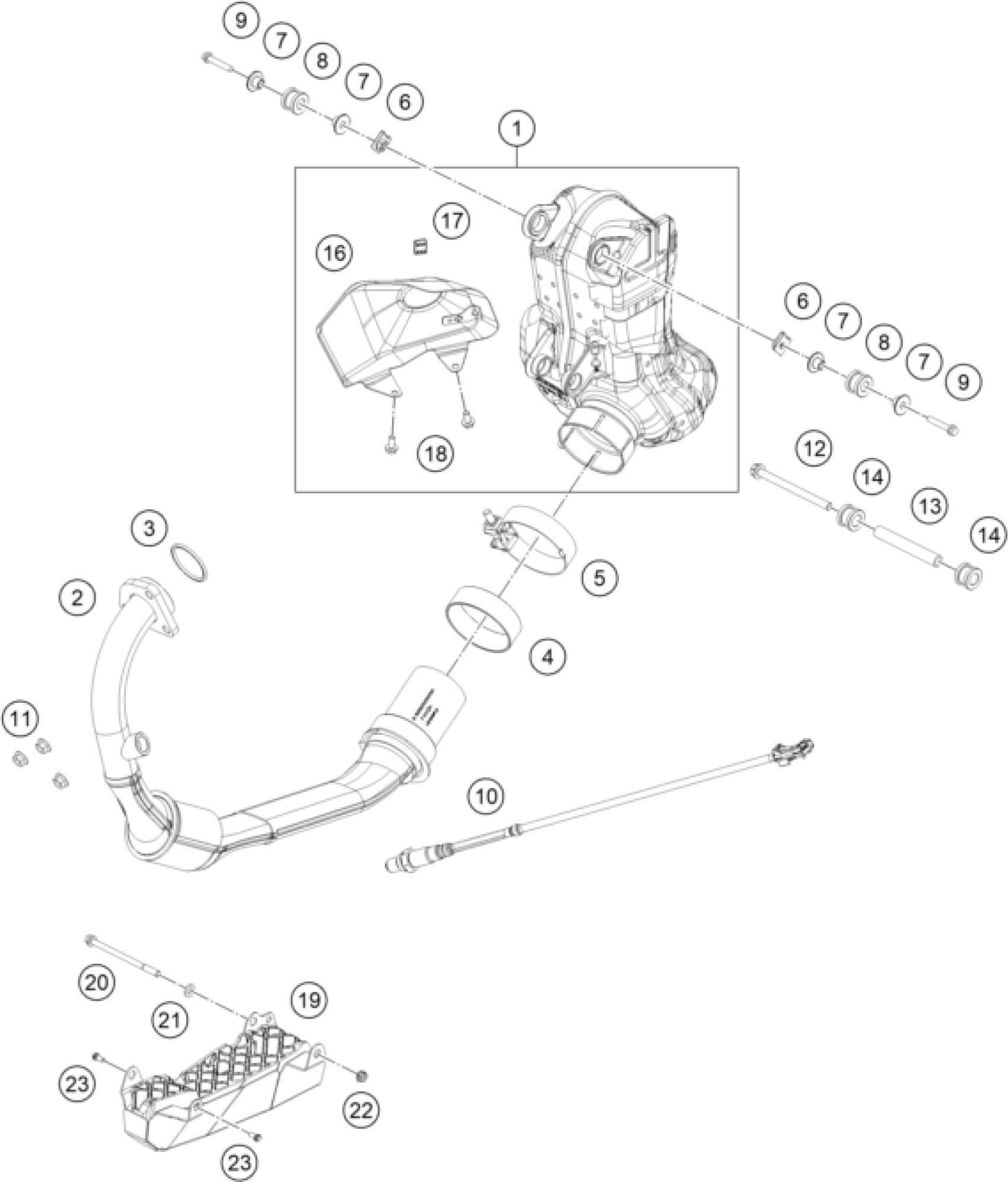

KTM RC 200, GP orange 2023 EXHAUST SYSTEM Diagram

Muffler

pipe assembly a

GASKET EXHAUST

GASKET EXHAUST

Exhaust clamp

clip nut

muffler mounting spacer bushin

damper, bottom

BOLT SILENCER MTG

Oxygen sensor

Hex collar nut M6

HH COLLAR SCREW M8X105 SW12

muffler mounting tube

damper, bottom

SHIELD ASSEMBLY MUFFLER

GROMMET MUFFLER SHIELD

HH COLLAR SCREW M6X14 SW10

Heat protection, cmpl.

HH COLLAR SCREW M6X90

WASHER 6,5X2 MM

Hexagon nut M6

BOLT FLANGED M6X14
