VALVE DRIVE

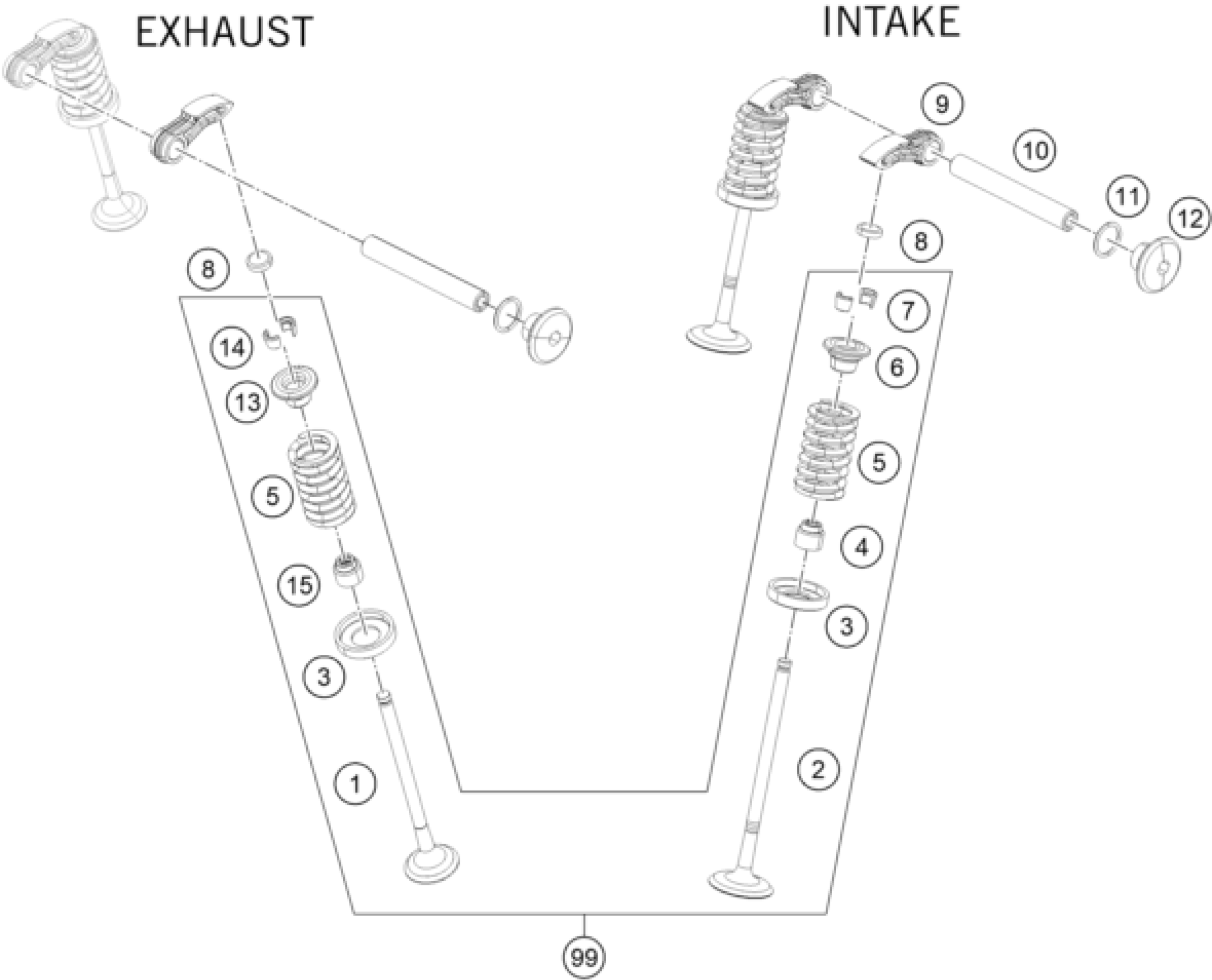

KTM RC 200, black, w/o ABS - B.D. 2021 VALVE DRIVE Diagram
#
1
Exhaust valve
94136031000
Unavailable
2
INTAKE VALVE
90636030000
Unavailable
3
SEAT SPRING VALVE
94036036000
Unavailable
4
VALVE-STEM SEALING
90136027000
Unavailable
5
SPRING VALVE
94036028000
Unavailable
6
VALVE SPRING RETAINER
90136032000
Unavailable
7
VALVE COLLET
90136033000
Unavailable
8
SHIM KIT 125/200 Duke
90136035010
Unavailable
8
SHIM D=8,7/2,00
90136035200
Unavailable
8
SHIM D=8,7/2,04
90136035204
Unavailable
8
SHIM D=8,7/2,08
90136035208
Unavailable
8
SHIM D=8,7/2,12
90136035212
Unavailable
8
SHIM D=8,7/2,16
90136035216
Unavailable
8
SHIM D=8,7/2,20
90136035220
Unavailable
8
SHIM D=8,7/2,24
90136035224
Unavailable
8
SHIM D=8,7/2,28
90136035228
Unavailable
8
SHIM D=8,7/2,32
90136035232
Unavailable
8
SHIM D=8,7/2,36
90136035236
Unavailable
8
SHIM D=8,7/2,40
90136035240
Unavailable
8
SHIM D=8,7/2,44
90136035244
Unavailable
8
SHIM D=8,7/2,48
90136035248
Unavailable
8
SHIM D=8,7/2,52
90136035252
Unavailable
8
SHIM D=8,7/2,56
90136035256
Unavailable
8
SHIM D=8,7/2,60
90136035260
Unavailable
8
SHIM D=8,7/2,64
90136035264
Unavailable
8
SHIM D=8,7/2,68
90136035268
Unavailable
8
SHIM D=8,7/2,72
90136035272
Unavailable
8
SHIM D=8,7/2,76
90136035276
Unavailable
8
SHIM D=8,7/2,80
90136035280
Unavailable
8
SHIM D=8,7/2,84
90136035284
Unavailable
8
SHIM D=8,7/2,88
90136035288
Unavailable
8
SHIM D=8,7/2,92
90136035292
Unavailable
8
SHIM D=8,7/2,96
90136035296
Unavailable
8
SHIM D=8,7/3,00
90136035300
Unavailable
8
SHIM D=8,7/3,04
90136035304
Unavailable
9
cam follower
90136060000
Unavailable
10
VALVE LEVER SHAFT
90136056000
Unavailable
11
O-RING 10,3X1,2 MM
J770010312
Unavailable
12
SCREW PLUG
90136056001
Unavailable
13
retainger spring valve
90636032000
Unavailable
14
VALVE COLLET
90236033000
Unavailable
15
valve stem seal
90236027000
Unavailable
99
Valve Kit Duke 200
94136030010
Unavailable
