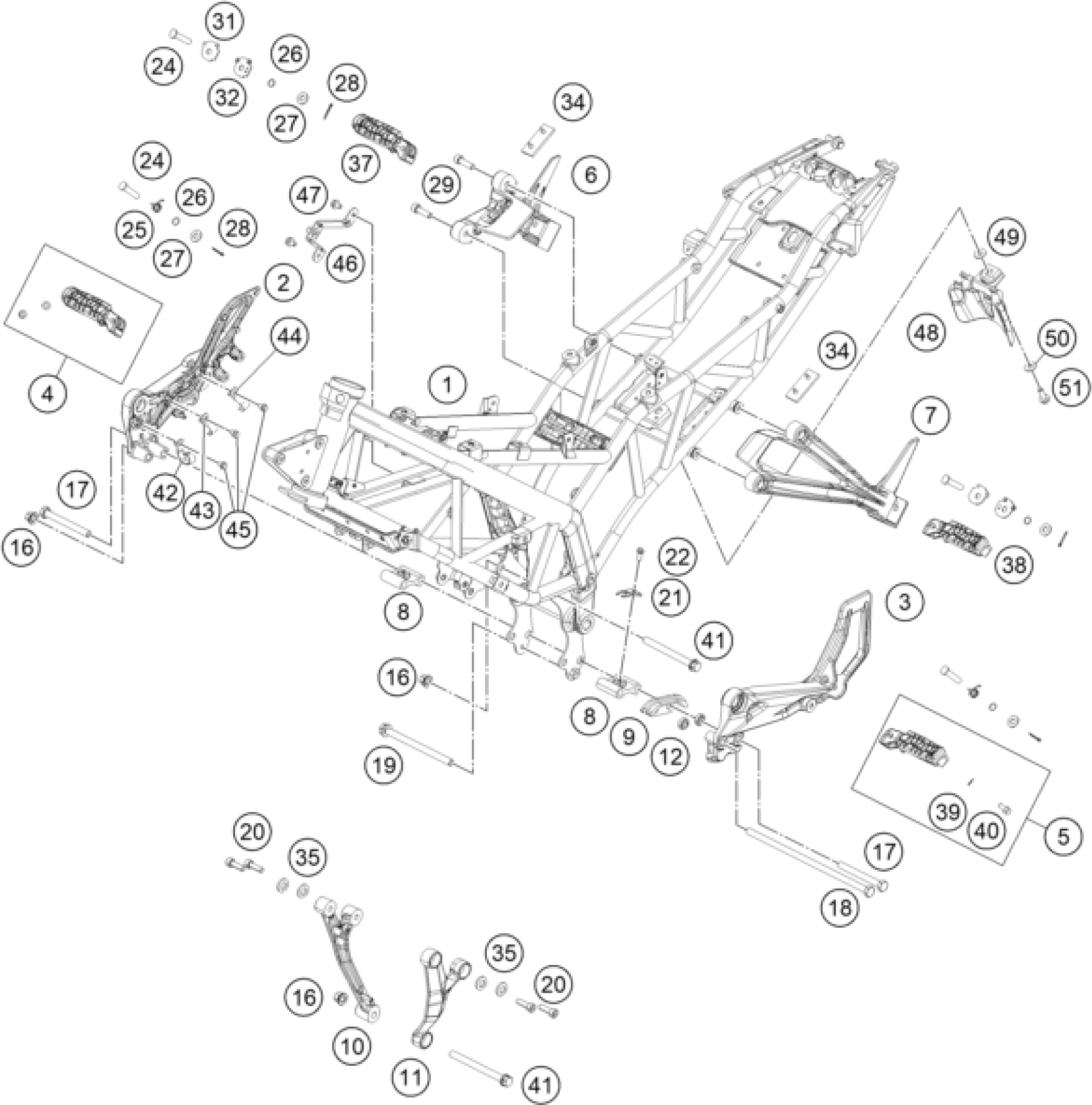

KTM RC 200, black, w/o ABS - B.D. 2020 FRAME Diagram

#

Description
Price

1

Frame

9350300110030

Unavailable

2

FOOTREST BRACKET FRONT R/S

90503039000

Unavailable

3

FOOTREST BRACKET FRONT L/S

90503038000

Unavailable

4

Front footpeg cmpl. right

93003141033

Unavailable

5

Front footpeg cmpl. left

93003140033

Unavailable

6

FOOTREST BRACKET REAR R/S

90503049000

Unavailable

7

FOOTREST BRACKET REAR L/S

90503048000

Unavailable

8

footrest support holder, front

90103038001

Unavailable

9

chainguide

90104070000

Unavailable

10

ENGINE HANGER RH MAT BLACK KT1

93303006000C1

Unavailable

11

ENGINE HANGER LH MAT BLACK KT1

93303005000C1

Unavailable

12

spacer chainguide

90104066010

Unavailable

16

FLANGED NUT M10X1.25 WS14

90103038002

Unavailable

17

HH COLLAR SCREW M10X1,25X92

J025100926

Unavailable

18

HH COLLAR SCREW M10X1,25X265

J025102656

Unavailable

19

HH COLLAR SCREW M8X105 SW12

J027081053

Unavailable

20

ISK-Screw M8x25

J912080256

Unavailable

21

CABLE BRACKET

90111045050

Unavailable

22

FLANGED BOLT M6X14

90103032000

Unavailable

24

BOLT FOR FOOTREST

90503045000

Unavailable

25

Footpeg spring

93003042000

Unavailable

26

O-RING 9X1,5

J770009015

Unavailable

27

WASHER D=8,5

90503048010

Unavailable

28

pin cotter-dia. 2.5xl 18

J094020186

Unavailable

29

BOLT SOCKET M8X1.25XL

90503098000

Unavailable

31

LOCK PLATE LOWER

90503053000

Unavailable

32

LOCK PLATE UPPER

90503052000

Unavailable

34

RUBBER DAMPER FOR FOOTREST

90503050000

Unavailable

35

WASHER M8

J125080005

Unavailable

37

Rear footpeg cmpl. right

93003151033

Unavailable

38

Rear footpeg cmpl. left

93003150033

Unavailable

39

PLAIN WASHER 6,4X12X1

90103040001

Unavailable

40

CAP SCREW M6X10 SS

J029060103S

Unavailable

41

HH COLLAR SCREW M10X110 WS14

J025101103

Unavailable

42

BRAKE HOSE GUIDE FRONT

90113025000

Unavailable

43

BRACKET HOSE CLAMP 2

90513046000

Unavailable

44

BRACKET HOSE CLAMP 1

90513045000

Unavailable

45

HH COLLAR SCREW M6X8 SW8

J025060083

Unavailable

46

BRACKET SIDECOVER

90503034000

Unavailable

47

HH COLLAR SCREW M6X10 SW10

J025060103

Unavailable

48

SPLASH PROTECTION

93808073000

Unavailable

49

COLLAR UNDER TRAY

90508016060

Unavailable

50

WASHER

90108015020

Unavailable

51

HH COLLAR SCREW M6X18 SW10

J025060183

Unavailable
