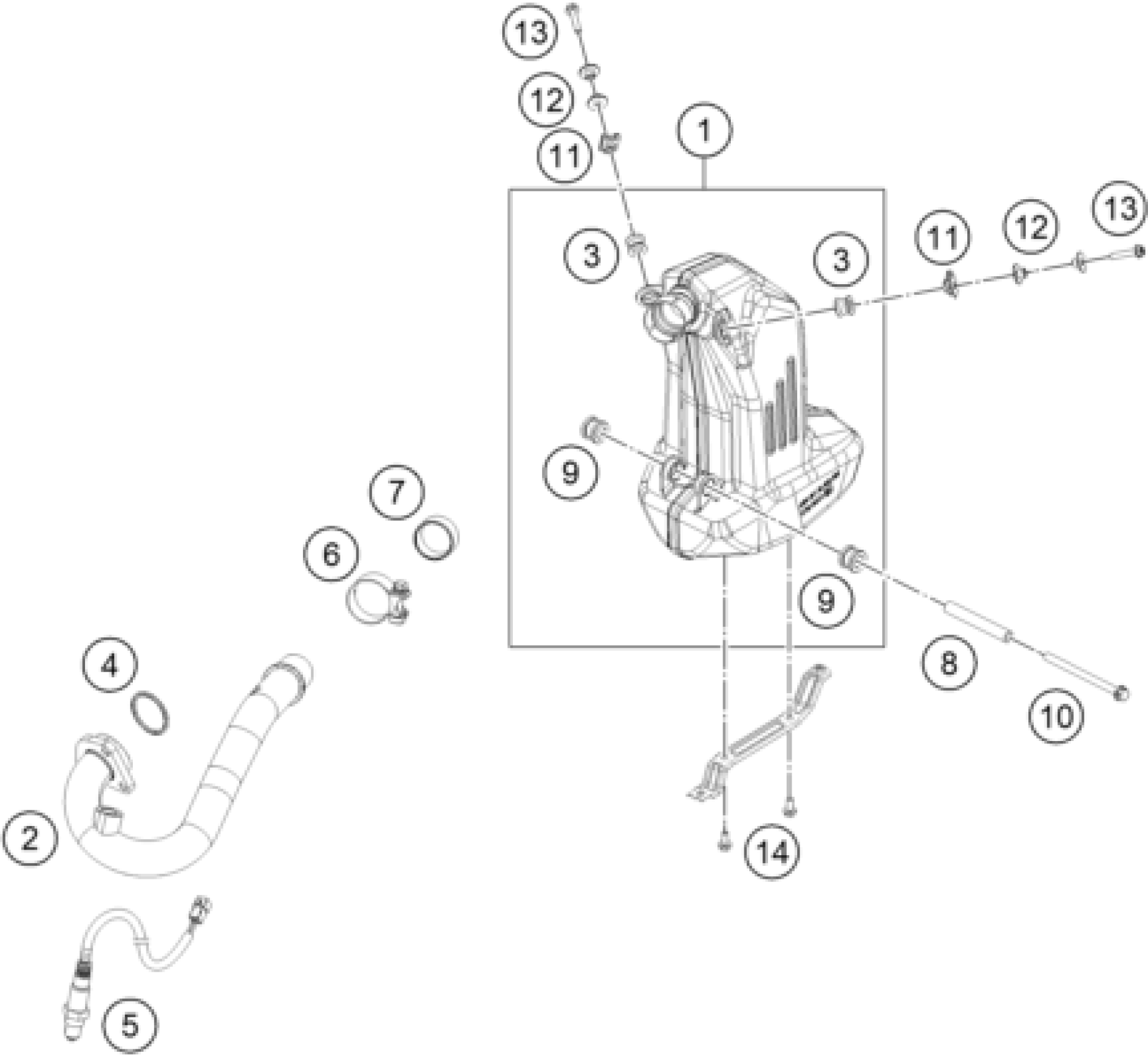

KTM RC 200, black, w/o ABS - B.D. 2020 EXHAUST SYSTEM Diagram

#

Description

Price

1

Silencer sub assembly

91205083533

Unavailable

2

Assembly pipe a

90605007100

Unavailable

3

damper, bottom

90205068000

$2.05

4

exhaust flange gasket

90105004000

$5.23

5

oxygen sensor

90141090000

$188.11

6

Header clamp

90105052000

Unavailable

7

SEAL RING EXHAUST PIPE A

90105005000

Unavailable

8

muffler mounting tube

90105084000

$4.11

9

damper, bottom

90105068100

$1.49

10

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

11

clip nut

90103097000

$4.11

12

muffler mounting spacer bushin

90205086001

$2.05

13

HH COLLAR SCREW M6X25 SW10

J025060256

$1.49

14

HH COLLAR SCREW M6X14 SW10

J025060146

$1.49
