COVER

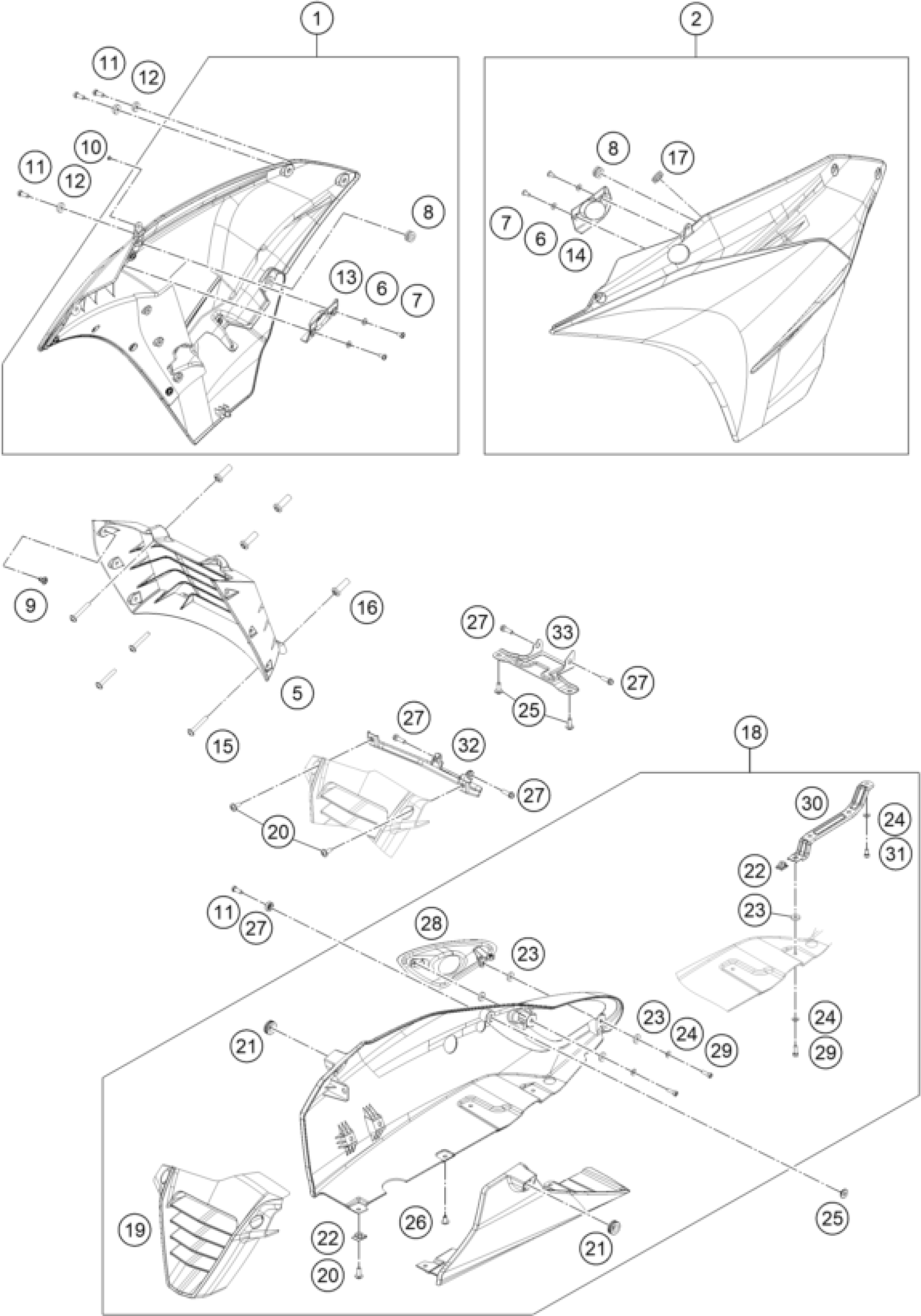

KTM RC 200, black, w/o ABS - B.D. 2020 COVER Diagram
#
Description
Price
1
ASLY SD FAIRING RH RC200 MY20
93608051044C1
Unavailable
2
ASSLY SIDE FAIRING LH BL
93608050044C1
Unavailable
5
AIR INTAKE
90508011000
$11.87
6
WASHER D=5,5 BLACK
90514007010
$1.49
7
SCREW K50X12
90508041010
$1.49
8
RUBBER SLEEVE
90507040001
$1.49
9
EXPANDING RIVET
90114062001
$5.98
10
SOCKET HEAD BOLT M6X1X8
90508006004
$1.49
11
BOLT SOCKET M6X1XL
90808043001
$1.49
12
SPECIAL WASHER
90508046000
$4.11
13
FLASHER BLIND COVER R/S
90508054050
Unavailable
14
FLASHER BLIND COVER L/S
90508054000
$2.05
15
AH SCREW M6X42
90508006002
$1.49
16
BUSH RADIATOR MTG
90503007001
$3.08
17
GROMMET
90508010060
$1.49
18
Front spoiler cpl. jet black
90508020044C1
Unavailable
19
RADIATOR SHROUD LOWER BLACK
9050802000033
$17.57
20
SPECIAL SCREW M6X1X16
90808043000
$1.49
21
GROMMET SIDE FAIRING
90508055010
$1.49
22
clip nut
90103097000
$4.11
23
WASHER ASBESTOS
90505090050
$5.79
24
WASHER D=5,5
90508015010
$1.49
25
SOCKET HEAD BOLT M6X12
90508006001
$1.49
26
RIVET
93814050000
$1.49
27
BUSH FENDER
90508010050
Unavailable
28
HEAT SHIELD CPL.
90505090033
$19.44
29
AH SCREW M5X16
J912050163
$1.49
30
BRACKET BELLY PAN MOUNTING
90508028000
$5.23
31
ALLEN SCREW M5X10
J912050103
$1.49
32
BRACKET FRONT BELLY PAN
90808026000
Unavailable
33
BRACKET REAR BELLY PAN
90808027000
Unavailable
