COOLING SYSTEM

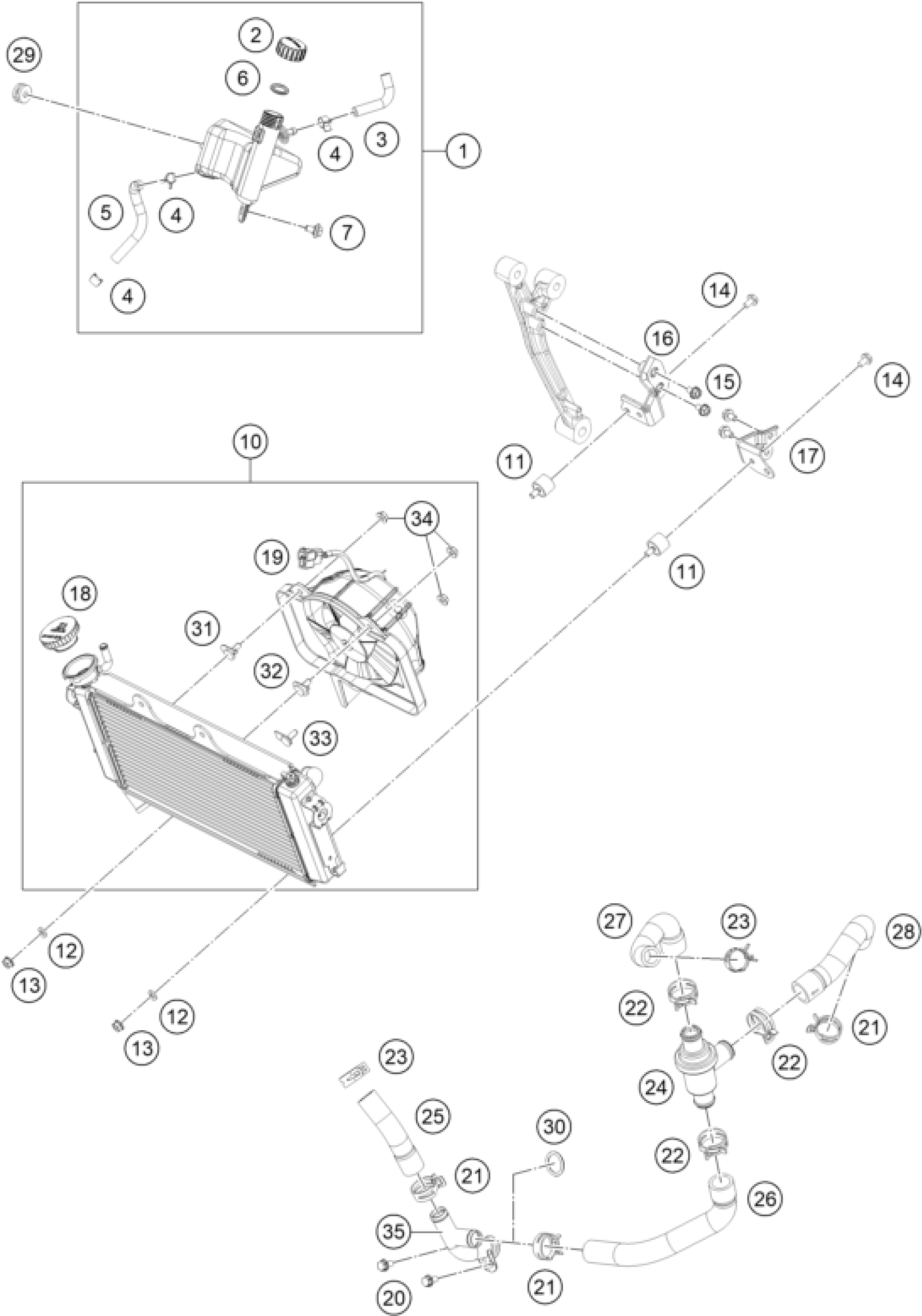

KTM RC 200, black, w/o ABS - B.D. 2020 COOLING SYSTEM Diagram
#
1
EXPANSION TANK CPL.
90535065033
Unavailable
2
PLUG F. EXPANSION TANK
90135066000
Unavailable
3
TUBE DRAIN
90507013008
Unavailable
4
CLAMP 10MM
90107018011
Unavailable
5
HOSE 6X10X154 MM
90135067050
Unavailable
6
COMPENSATING TANK O-RING
90102055000
Unavailable
7
SPECIAL SCREW M6X12 FLANGED
90135074000
Unavailable
10
Radiator assembly
90935010033
Unavailable
11
silentbloc M6
90235001001
Unavailable
12
WASHER SPRING B6
J127060003
Unavailable
13
FLANGED NUT M6 WS10 SELF LOCK.
J926060000
Unavailable
14
HH COLLAR SCREW M6X8 SW10
J026060083
Unavailable
15
HH COLLAR SCREW M6X10 SW10
J025060103
Unavailable
16
Retaining bracket
93503001083
Unavailable
17
BRACKET RADIATOR MOUNTING L/S
90503005001
Unavailable
18
RADIATOR CAP
90135016100
Unavailable
19
Fan cpl.
93235041033
Unavailable
20
Hex collar screw M6X14
J025060141
Unavailable
21
hose clamp D26
90135020001
Unavailable
22
HOSE CLAMP D28
90135020003
Unavailable
23
HOSE CLAMP D23
90135020000
Unavailable
24
THERMOSTAT
90135017000
Unavailable
25
HOSE RADIATOR TO PIPE ''T''
90535024000
Unavailable
26
RADIATORHOSE THERM.-COOL.PIPE
90135024010
Unavailable
27
HOSE RADIATOR TO THERMOSTAT
90535025000
Unavailable
28
COOLING HOSE ENGINE - THERM.
90135025100
Unavailable
30
O-RING 18,5X3
J770018530
Unavailable
31
BRACKET FAN MOUNTING 1
90835041001
Unavailable
32
BRACKET FAN MOUNTING 2
90835041002
Unavailable
33
BRACKET FAN MOUNTING 3
90835041003
Unavailable
34
FLANGED NUT
90835041004
Unavailable
35
COOLANT PIPE T
90635071033
Unavailable
29
GROMMET EXPANSION TANK
90135065050
Unavailable
10
radiator assembly
93535010044
Unavailable
19
radiator fan assembly
93535141044
Unavailable
