WIRING HARNESS

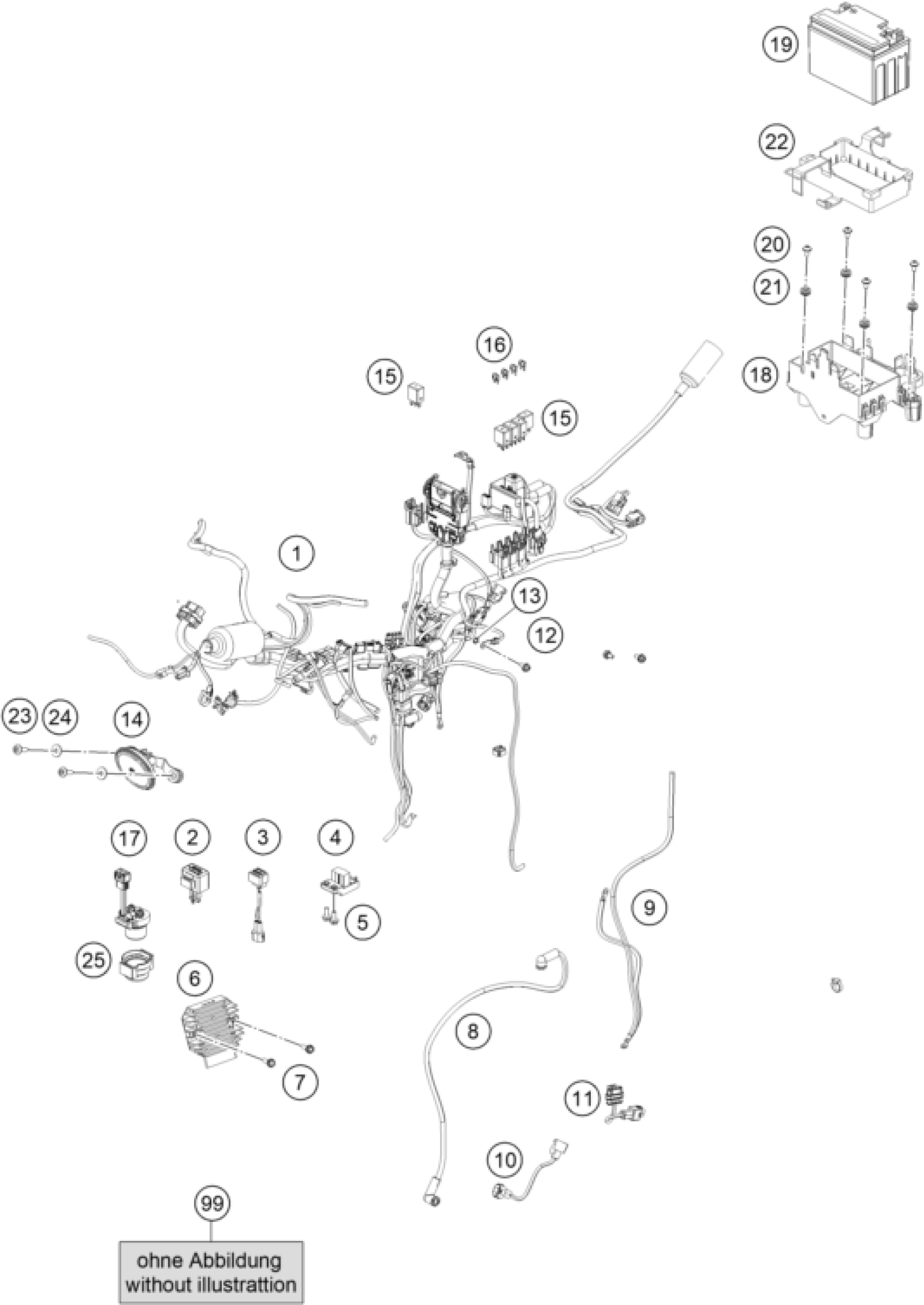

KTM RC 200, black ABS - B.D. 2022 WIRING HARNESS Diagram
#
Description
Price
1
HARNESS WIRING
94611075000
Unavailable
13
TOOTHED WASHER M6
J797060003
Unavailable
12
Hex collar screw M6X12
J025060122
Unavailable
10
Cable
93041080050
Unavailable
11
PIGTAIL PH-3 FUEL PUMP
93511084000
Unavailable
9
cable earth
94511063000
Unavailable
8
cable relay-motor starter
94511059000
Unavailable
3
Transil unit
28111096000
Unavailable
2
indicator relay
90511030000
Unavailable
6
voltage regulator
90511034000
Unavailable
7
FLANGED BOLT M6X30 WS10
J025060303
Unavailable
4
rollover sensor
93541088000
Unavailable
5
HH COLLAR SCREW M6X16 SW8
J025060169
Unavailable
14
Horn
94511060000
Unavailable
15
relay (interlock)
90611057000
Unavailable
17
Starter relais
93011058000
Unavailable
19
BATTERY 12V/8AH
90611053000
Unavailable
18
electric carrier
94511054000
Unavailable
21
rubber grommet 9x11x16x8.5 mm
60006001022
Unavailable
20
SOCKET HEAD BOLT M6X12
90508006001
Unavailable
16
FUSE 10A 07
75011088010
Unavailable
16
FUSE 15A 07
75011088015
Unavailable
16
FUSE 30A
75011088030
Unavailable
22
battery grommet box
94511055000
Unavailable
99
Pigtail oil pressure switch
90838091000
Unavailable
99
Cable earth ABS
93042033000
Unavailable
25
Rubber damper starter relay
93311058000
Unavailable
23
BOLT SOCKET M6X1
J900000602400
Unavailable
24
washer plain
J690000600200
Unavailable
