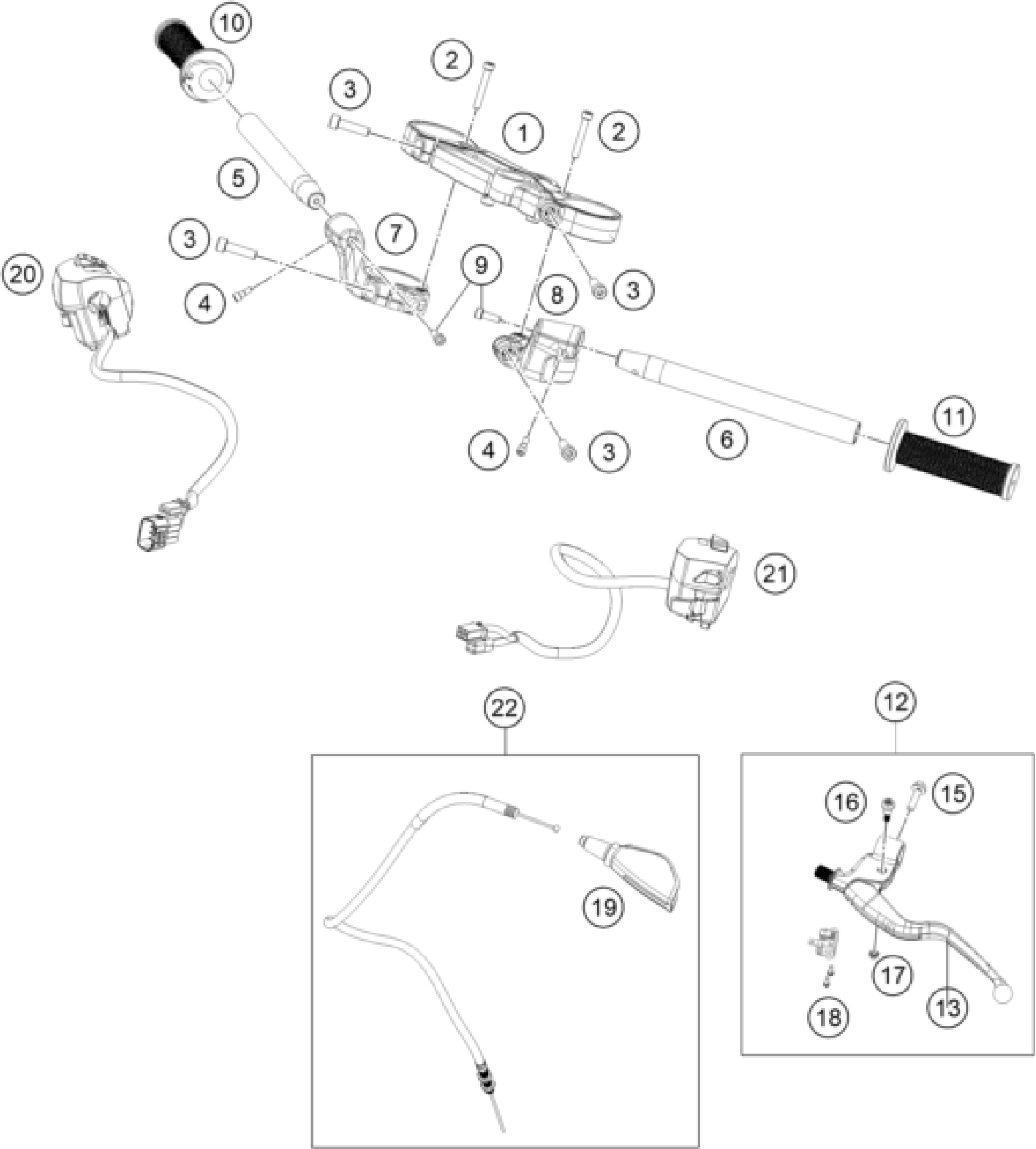

KTM RC 200, black ABS - B.D. 2022 HANDLEBAR, CONTROLS Diagram

#

Description
Price

8

HOLDER HANDLE LH

94502005010

$106.30

6

TUBE HANDLEBAR LH

94602005000

Unavailable

4

SPECIAL SCREW M5x0,8X13

90511006000

$2.05

9

BOLT SOCKET M6X1X14

90511006100

$1.49

11

GRIP LH

94502039000

Unavailable

7

HOLDER HANDLE RH

94502006010

$106.30

5

TUBE HANDLEBAR RH

94602006000

Unavailable

10

Throttle cmpl.

94502010033

Unavailable

1

Top triple clamp

94501034035C1

$90.87

3

AH SCREW M8X1.25X30

90501045000

$1.49

2

BOLT SOCKET M6X1

J900000604002

$1.49

12

ASSEMBLY LEVER-HOLDER LH

94602031044

Unavailable

13

Clutch lever - NON Adjustable

93002031000

$5.23

18

Screw pan cross M3x0.5

90232014002

$1.49

17

nyloc nut-M5x0.8

J982050006

$1.49

15

bolt flanged-m6x1xl25xcl8.8xbl

J025060251

$1.49

16

LEVER PIVOT BOLT

93802031100

$1.49

20

SWITCH CONTROL RH

94611074000

Unavailable

21

SWITCH

90111070000

$52.07

22

Clutch cable

93002090000

$20.37

19

PROTECTION CAP THROTTLE CABLE

90102016000

$2.05

23

Throttle cable

93502091100

Unavailable
