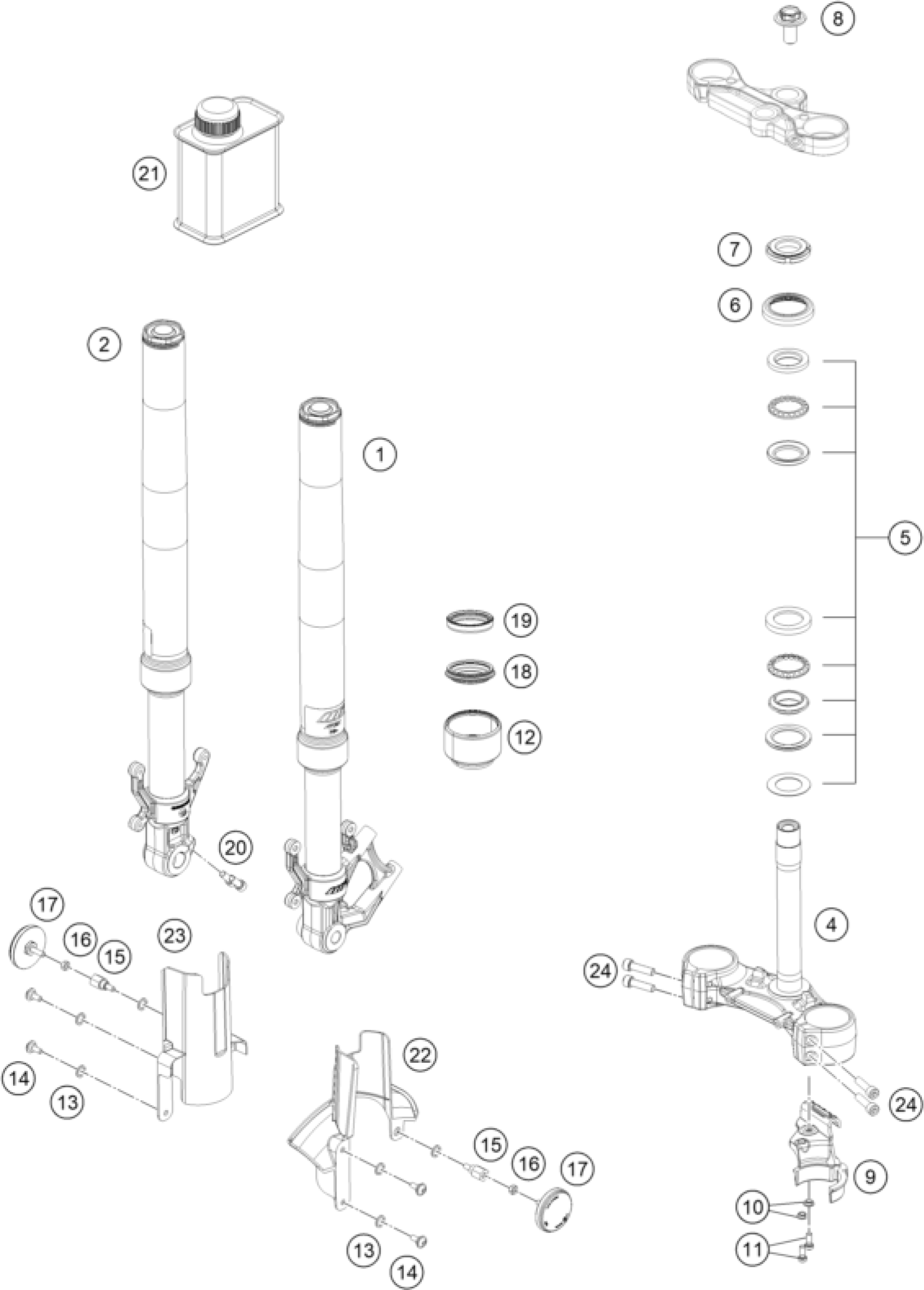

KTM RC 200, black ABS - B.D. 2022 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

LEG ASSEMBLY LH

94601001000

Unavailable

2

LEG ASSEMBLY RH

94601002000

Unavailable

12

FORK FRONT DUST COVER

90201025000

Unavailable

8

steering head screw

90501044000

Unavailable

19

Shaft seal SKF 43x52,9x11,4 bl

43570623

Unavailable

18

Dirt scarper SKF 43mm black

43570624

Unavailable

21

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

7

Adjusting ring steering head

90101036100

Unavailable

6

protection cap

90101086000

Unavailable

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

4

Bottom triple clamp

94501032035

Unavailable

24

AH SCREW M8X1.25X30

90501045000

Unavailable

9

Hose clamp

93013055000

Unavailable

10

sleeve for hose clamp

90113055010

Unavailable

11

AH SCREW M6X15 10.9

J021060156

Unavailable

22

PROTECTOR FORK INNER LH

94501092000

Unavailable

23

PROTECTOR FORK INNER RH

94501093000

Unavailable

17

Side reflector

94512082000

Unavailable

15

Reflector holder

94512082010

Unavailable

16

NUT HEX THICK

J910000600505

Unavailable

14

Panhead screw with shoulder

J031050161

Unavailable

13

Washer nylon

93009059000

Unavailable
