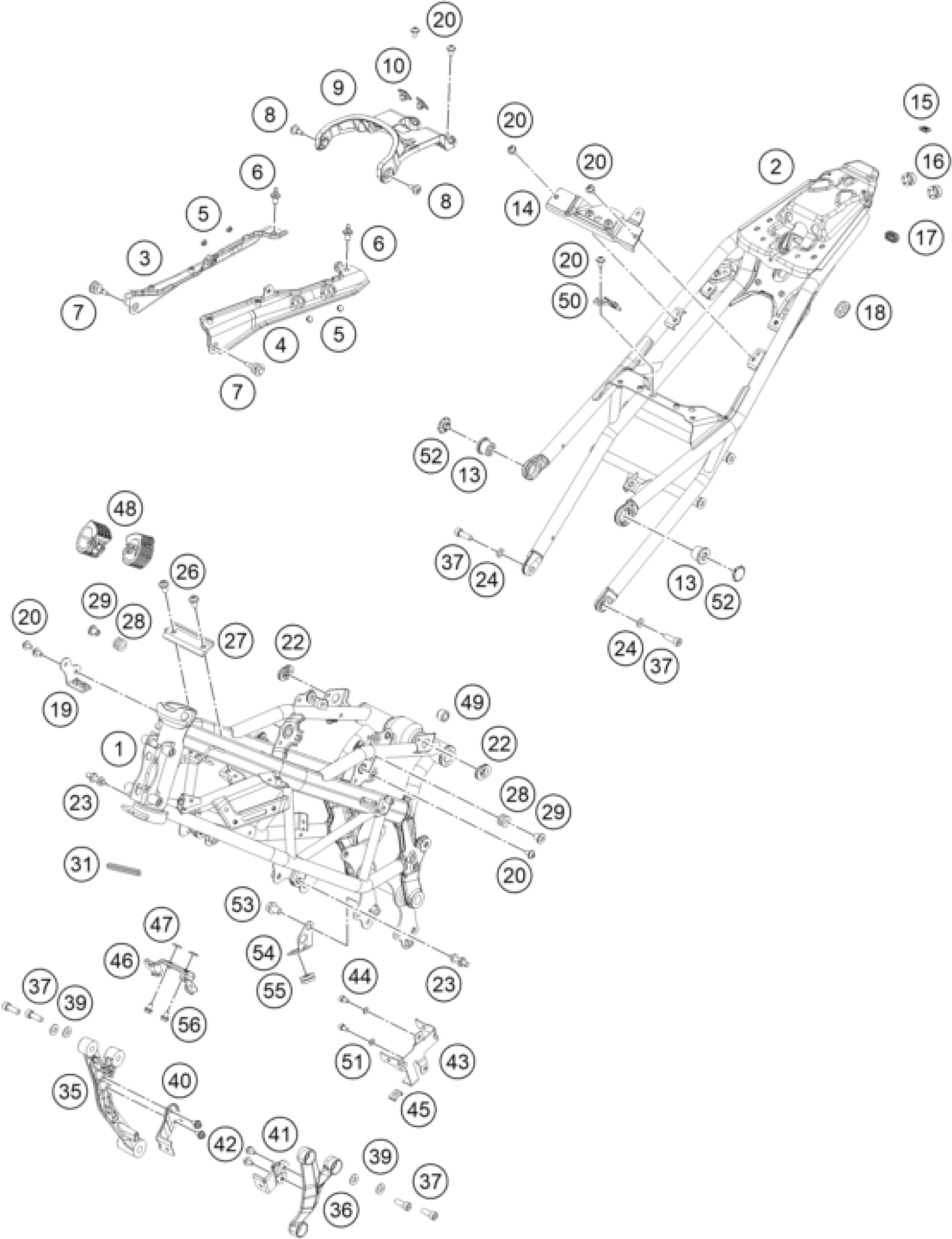

KTM RC 200, black ABS - B.D. 2022 FRAME Diagram

#

Description
Price

1

Frame front - Black Gloss

94503001000C1

$722.84

2

Subframe

94503002000EB

$503.86

37

Hexagon screw M8X25

J912080251

$2.05

24

washer plain-id8.2xod15xt2xbla

J690000801500

$1.49

13

SCREW SET SOCKET M22X1.25

94503082000

$5.79

4

BRACKET SPIDER LH

94503002053

$14.11

3

BRACKET SPIDER RH

94503002054

$14.11

6

Quick lock pin M8

94503002057

$1.96

5

DAMPER

94503002065

$1.49

14

BRACKET LATCH SEAT

94503002085

$8.22

9

CARRIER COVER TANK

94508049010

$8.87

10

SEAT DUMPER SOZIUS SEAT

90507047041

$3.08

18

GROMMET FOR CABLE

90508016070

$1.49

8

STEP BOLT M6

90512042020

$2.05

20

SOCKET HEAD BOLT M6X12

90508006001

$1.49

46

Support

93035004000

$3.08

47

Washer 9,2X16X2

J125090006

$1.49

31

BEADING TANK LH

90507012000

$1.49

43

Evaporative canister support p

94515003000

Unavailable

44

Hexagon socket screw M6x10

J900000601001

$1.49

45

Rubber underlay

93615005000

$1.49

48

DAMPER

94507012000

$2.52

16

GROMMET TOP COVER

90107013004

$2.05

17

GROMMET BATTERY BOX

90508024050

$1.49

15

GROMMET PILLION SEAT

90507047042

$1.49

23

Quick lock stud M8x12

94503001080

$2.70

28

GROMMET

J650001901402

$1.49

29

Collar bushing 6.5x13.5

J800000701400

$1.49

27

BRACKET FRAME FRONT MIDDLE

94503001035

Unavailable

26

screw button head-m8x1.25xl14x

J031080146

$2.05

19

BRACKET SENSOR ROLL OVER

94541088010

Unavailable

35

ENGINE HANGER RH MAT BLACK KT1

93303006000C1

Unavailable

36

ENGINE HANGER LH MAT BLACK KT1

93303005000C1

Unavailable

39

Washer M8

J125080006

$3.08

40

BRACKET RADIATOR RH

94603001010

Unavailable

41

BRACKET RADIATOR LH

94603001020

Unavailable

42

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

22

Rubber grommet

95811055010

$1.49

7

Hex collar screw. M8x23.5

J025080246

$2.05

49

collar

94503001097

$4.67

51

WASHER PLAIN SMALL

J690000600101

$1.49

50

HOLDER COUPLER

94603099000

$1.49

52

Cover

94503082010

$1.49

56

Hexagon screw M6X10

J025060101

$1.49

54

BRACKET PIPE DRAIN

94603001030

Unavailable

53

BOLT FLANGED

J900001001600

$1.49

55

Rubber grommet 24x16

J650002401600

$1.49
