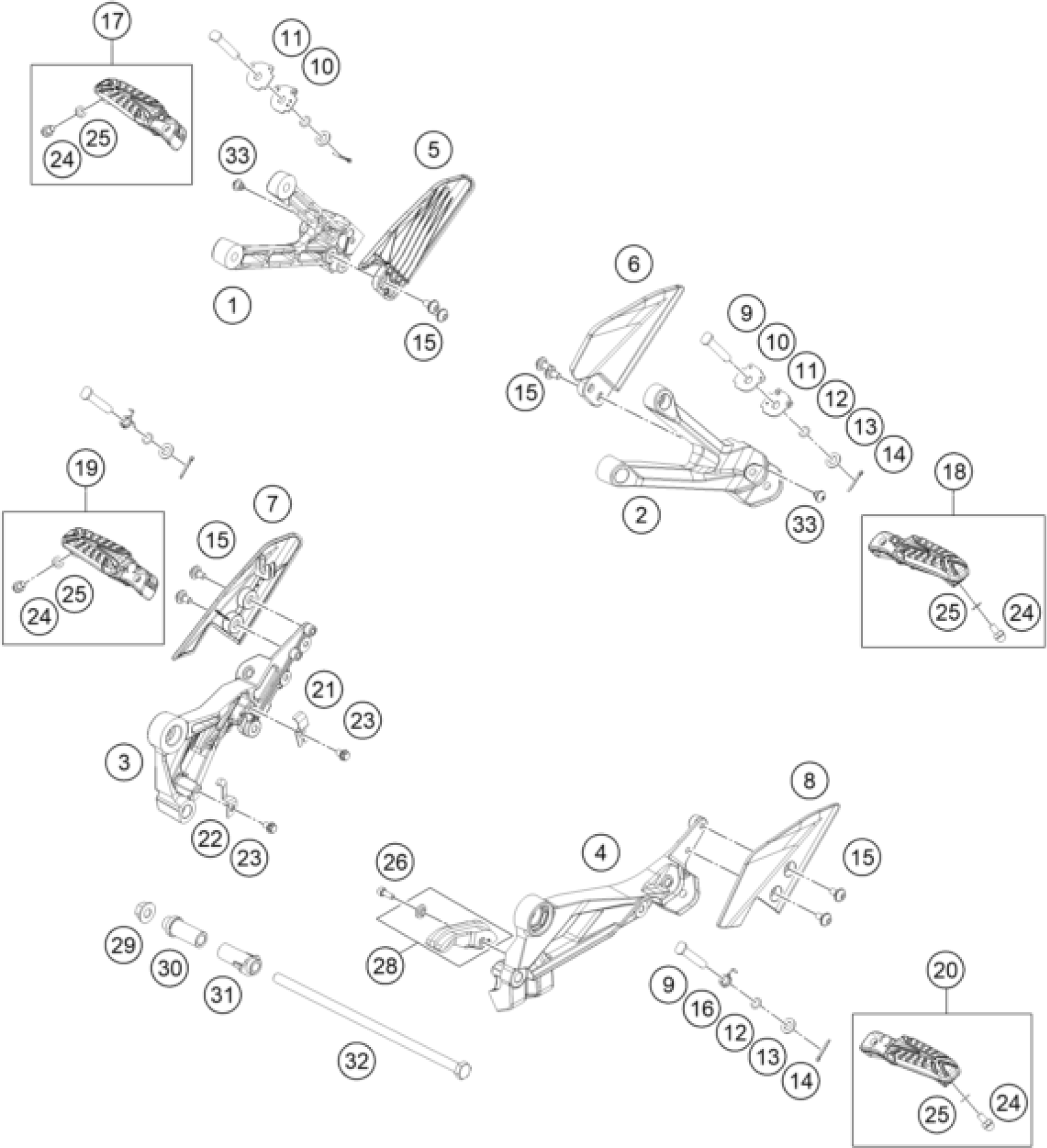

KTM RC 200, black ABS - B.D. 2022 FOOTPEGS Diagram

#

Description
Price

5

GUARD HEEL RH

94603049050

Unavailable

15

Screw M6X1X9

93008020060

Unavailable

6

GUARD HEEL LH

94603048050

Unavailable

7

GUARD HEEL RH

94603060010

Unavailable

8

GUARD HEEL LH

94603060020

Unavailable

1

STEP HOLDER PILLON RH JY113041

94503049000C1

Unavailable

2

STEP HOLDER PILLON LH JY113039

94503048000C1

Unavailable

3

STEP HOLDER RH (JY113037) BLAC

94503039000C1

Unavailable

4

STEP HOLDER LH (JY113035) BLAC

94503038000C1

Unavailable

33

Rubber buffer

J650001200500

Unavailable

28

Chain sliding guard

95804070000

Unavailable

29

FLANGED NUT M10X1.25 WS14

90103038002

Unavailable

32

HH COLLAR SCREW M10X1,25X265

J025102656

Unavailable

30

Distance sleeve

95803039010

Unavailable

31

Spacer

95803038010

Unavailable

22

Retaining bracket, hose

94603039020

Unavailable

21

Retaining bracket, hose

94603039010

Unavailable

23

HH COLLAR SCREW M6X8 SW8

J025060083

Unavailable

26

bolt socket-m5x0.8xl 14xprecoa

J912050141

Unavailable

17

Rear footpeg cmpl. right

93003151033

Unavailable

25

WASHER PLAIN SMALL

J690000600101

Unavailable

18

Rear footpeg cmpl. left

93003150033

Unavailable

24

CAP SCREW M6X10 SS

J029060103S

Unavailable

19

Front footpeg cmpl. right

93003141033

Unavailable

20

Front footpeg cmpl. left

93003140033

Unavailable

9

pin clevis dia 8

J920000804701

Unavailable

16

Footpeg spring

93003042000

Unavailable

12

O-RING 9X1,5

J770009015

Unavailable

13

WASHER D=8,5

90503048010

Unavailable

10

LOCK PLATE UPPER

90503052000

Unavailable

11

LOCK PLATE LOWER

90503053000

Unavailable

14

pin cotter-dia. 2.5xl 18

J094020186

Unavailable
