Description

Price

1

Air filter box

94006001000

$40.29

3

Air filter box cover

93006002000

$10.46

4

Seal

93006020050

$1.49

5

FILTER

93006015000

$22.24

2

Flat-head screw M6

93006039000

$1.49

13

Intake air temperature sensor

93041080000

$41.69

14

Lens head screw M5X12

J005050126

$1.49

15

Sensor cover

94505013000

Unavailable

16

Oval head screw M5X10

J005050101

Unavailable

7

Intake snorkel

94506040000

$7.66

6

Carburetor connection boot

93006001060

$2.05

23

Rubber cowl pad

93006001015

$1.49

22

Distance piece air filter box

93006021000

$1.49

17

Velocity stack

94641040000

Unavailable

19

Engine vent hose

93030087200

$20.66

21

HOSE CLAMP

90130087001

$3.08

20

Plug

93030089000

$1.49

10

Damping rubber

93006001080

$1.49

11

SILENT BLOCK AIRFILTER

90106001007

$5.88

18

Hose clamp

94041002010

$2.80

24

Cable

93041080050

$39.82

25

DOPPELSEIT. KLEBEB. 3M 10X15

93041080070

$1.49

9

Range change metal nut M6

93008084010

$1.49

8

SOCKET HEAD BOLT M6X12

90508006001

$1.49

12

Bolt flanged step M6x1

94805058030

Unavailable

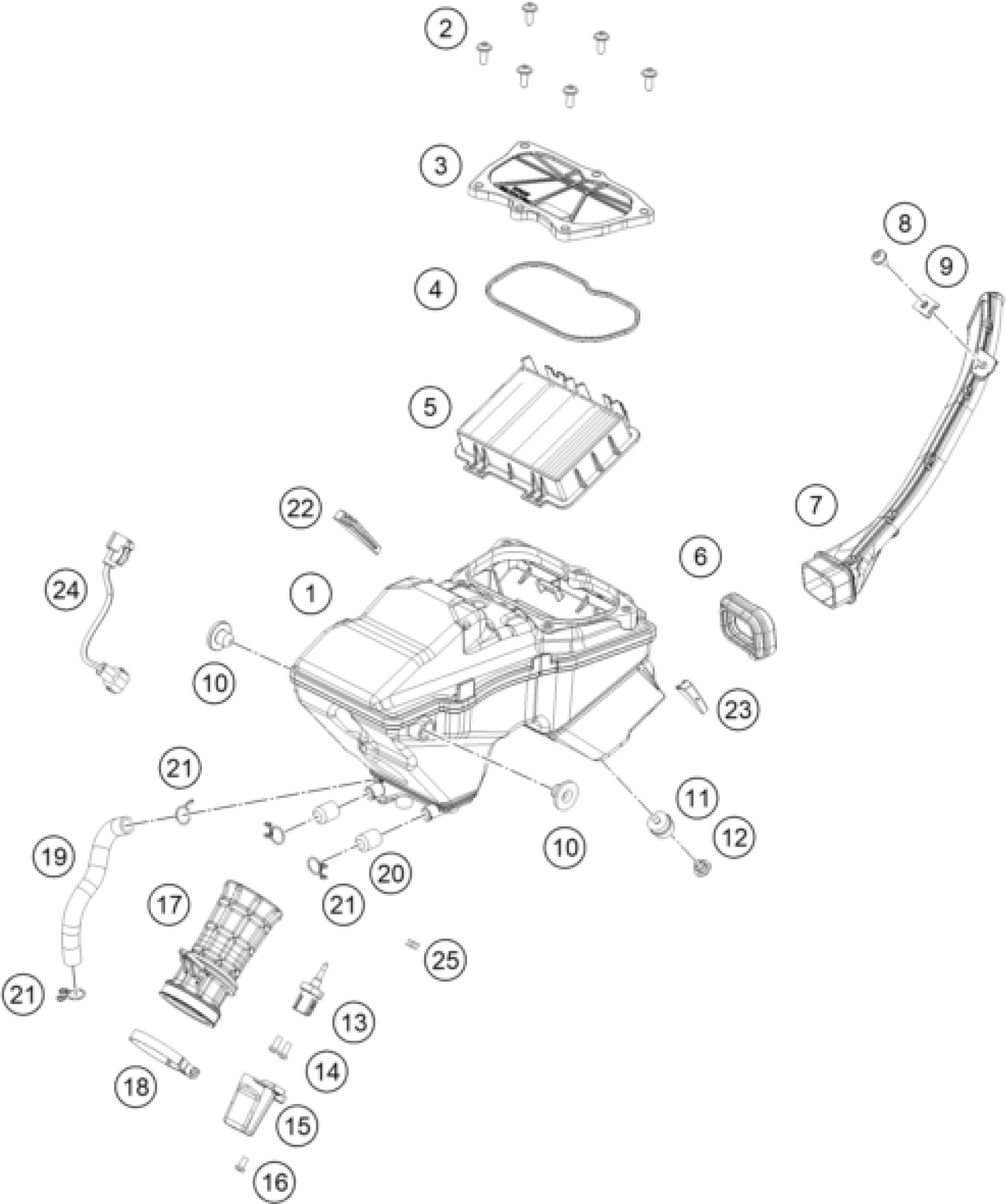

KTM RC 200, black ABS - B.D. 2022 AIR FILTER Diagram

Air filter box

Air filter box cover

Seal

FILTER

Flat-head screw M6

Intake air temperature sensor

Lens head screw M5X12

Sensor cover

Oval head screw M5X10

Intake snorkel

Carburetor connection boot

Rubber cowl pad

Distance piece air filter box

Velocity stack

Engine vent hose

HOSE CLAMP

Plug

Damping rubber

SILENT BLOCK AIRFILTER

Hose clamp

Cable

DOPPELSEIT. KLEBEB. 3M 10X15

Range change metal nut M6

SOCKET HEAD BOLT M6X12

Bolt flanged step M6x1
