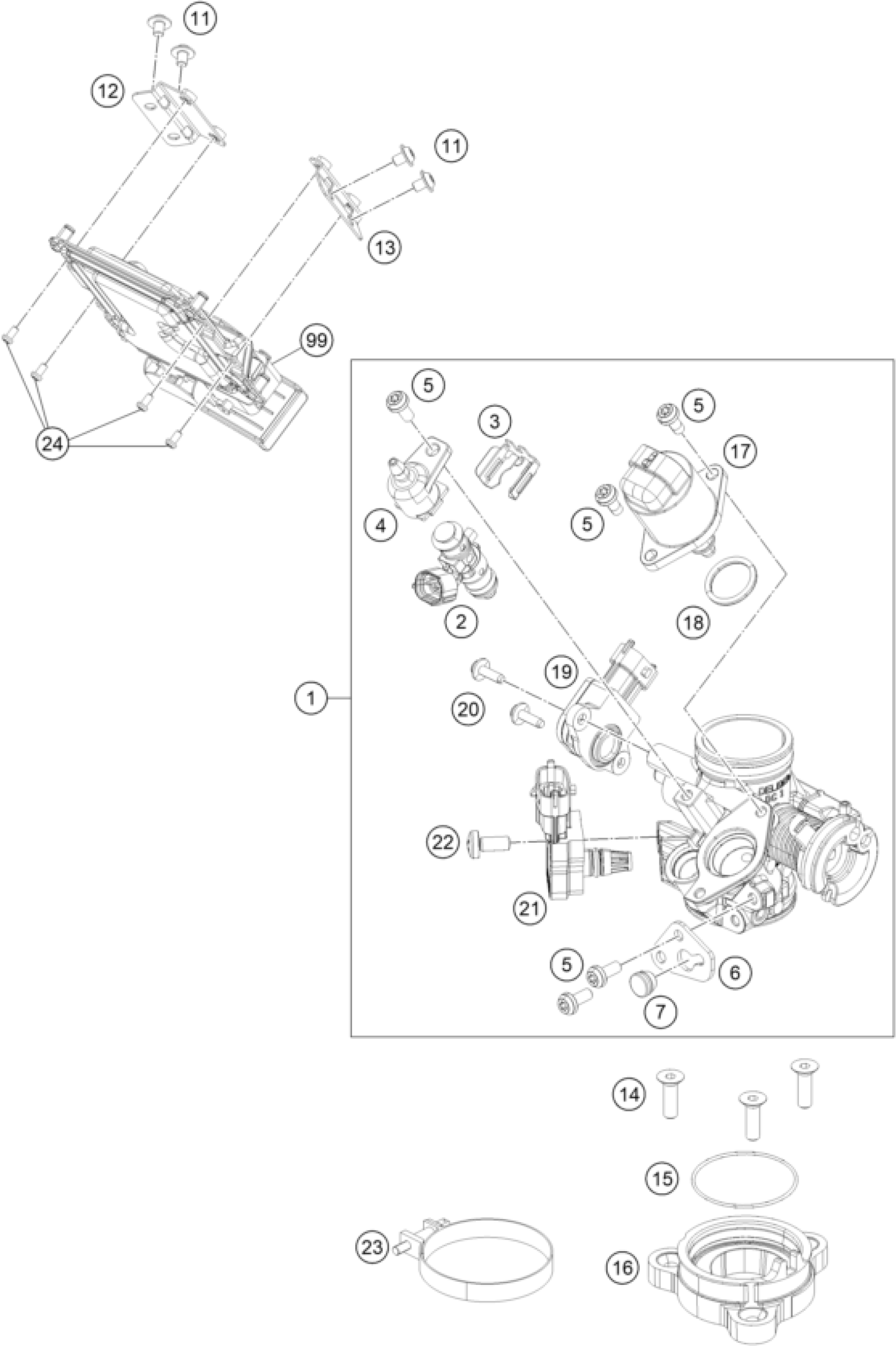

KTM RC 200 BL. w/o ABS B.D. 15 <2015> THROTTLE BODY Diagram

#

Description
Price

1

THROTTLE BODY CPL.

90641001044

Unavailable

2

FUEL INJECTOR

90641023000

Unavailable

3

INJECTOR CLIP

90141001001

$3.08

4

CONNECTOR FUEL RAIL

90141023004

$3.08

5

SPECIAL SCREW M5X12

90141023005

$1.49

6

CABLE SUPPORT

90141023002

$3.08

7

GROMMET

90141023003

$1.49

11

SOCKET HEAD BOLT M6X1X8

90508006004

$1.49

12

BRACKET ECU R/S

90514030000

$2.05

13

BRACKET ECU L/S

90514029000

$2.05

14

COUNTERSUNK SCREW M6X20

J991060203S

$1.49

15

O-RING CONN. FL. CYL.-THR.BODY

90141002006

$2.05

16

CONN. FLANGE CYLINDER-THR.BODY

90641002300

$22.81

17

IDLE ADJUSTER

90641072000

$80.31

18

O-RING

90141072001

$3.08

19

THROTTLE POSITION SENSOR

90141070000

$75.17

20

SPECIAL SCREW M4X13

90141070001

$1.49

21

TMAP-SENSOR

90141071000

$79.19

22

SPECIAL SCREW M6X14

90141071001

$5.41

23

CLAMP

90641002010

$4.11

24

FLAT HEAD SCREW M4X8 PH

J005040081

$1.49

99

ECU RAW PART

90141031100

$522.94

8

O-ring

55641023020

$10.56

9

O-ring

55641023010

$7.66
