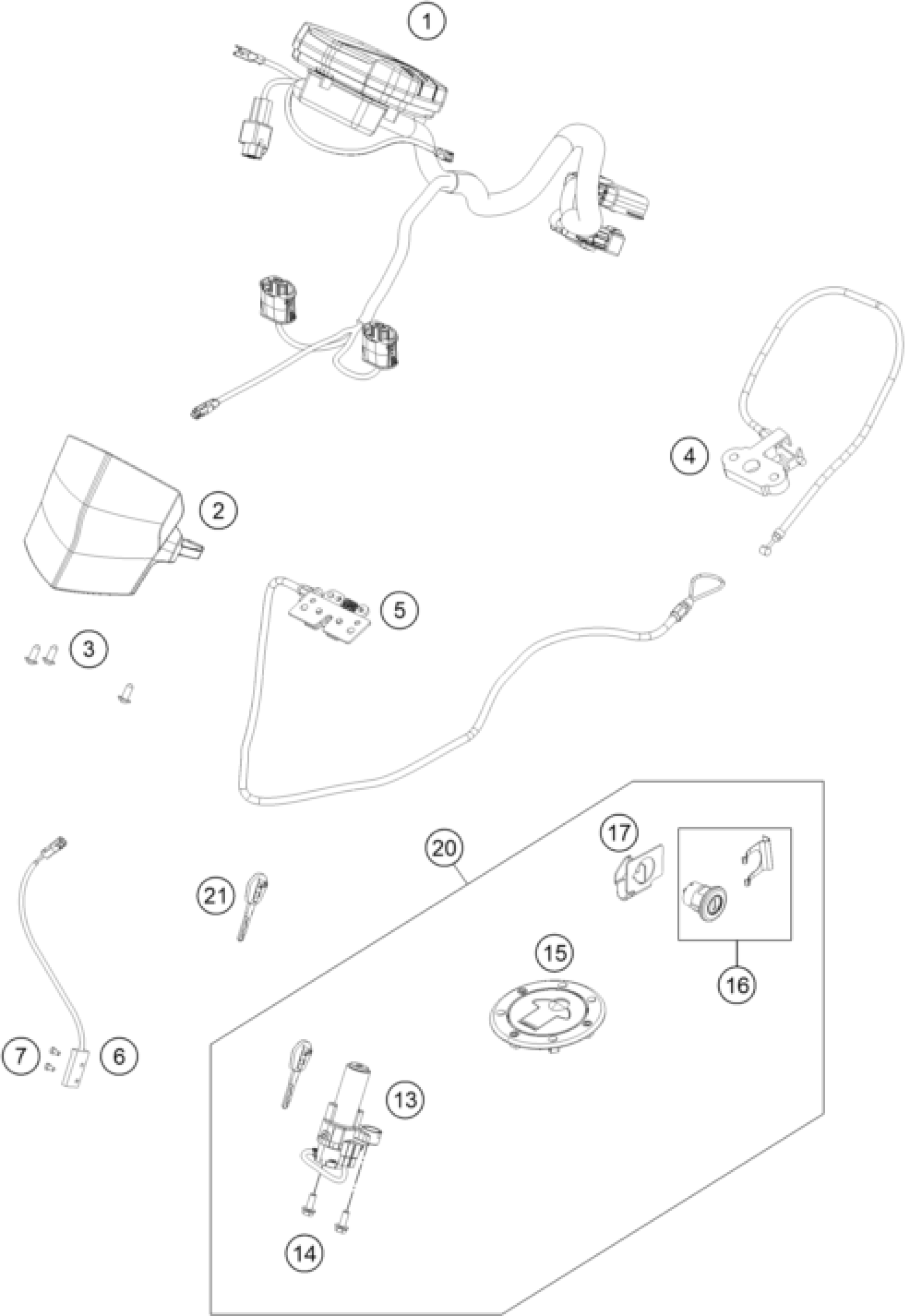

KTM RC 200 BL. w/o ABS B.D. 15 <2015 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER

90914057000

Unavailable

2

SPEEDOMETER BRACKET

90514006000

$9.53

3

EJOT PT screw K50x12

0081050121

$2.05

13

IGNITION LOCK

90511066000

$48.24

14

HH COLLAR SCREW M6X16

90130059000

$1.49

15

TANK CAP

90507008000

Unavailable

16

SEAT LOCK

90107050050

$34.12

17

seat lock mounting plate

90107050051

$2.05

20

LOCK SET

90511066044

Unavailable

21

BLANK KEY 125/200 DUKE

90111067100

$13.92

4

SEAT LOCK CPL.

90507050033

$7.66

5

LOCK BATTERY CASE CPL.

90508025033

$18.41

7

PAN CROSS SCREW M4

90114068001

Unavailable

6

SPEEDOMETER SENSOR

90114068000

Unavailable

21

KEY

90111067000

$130.05
