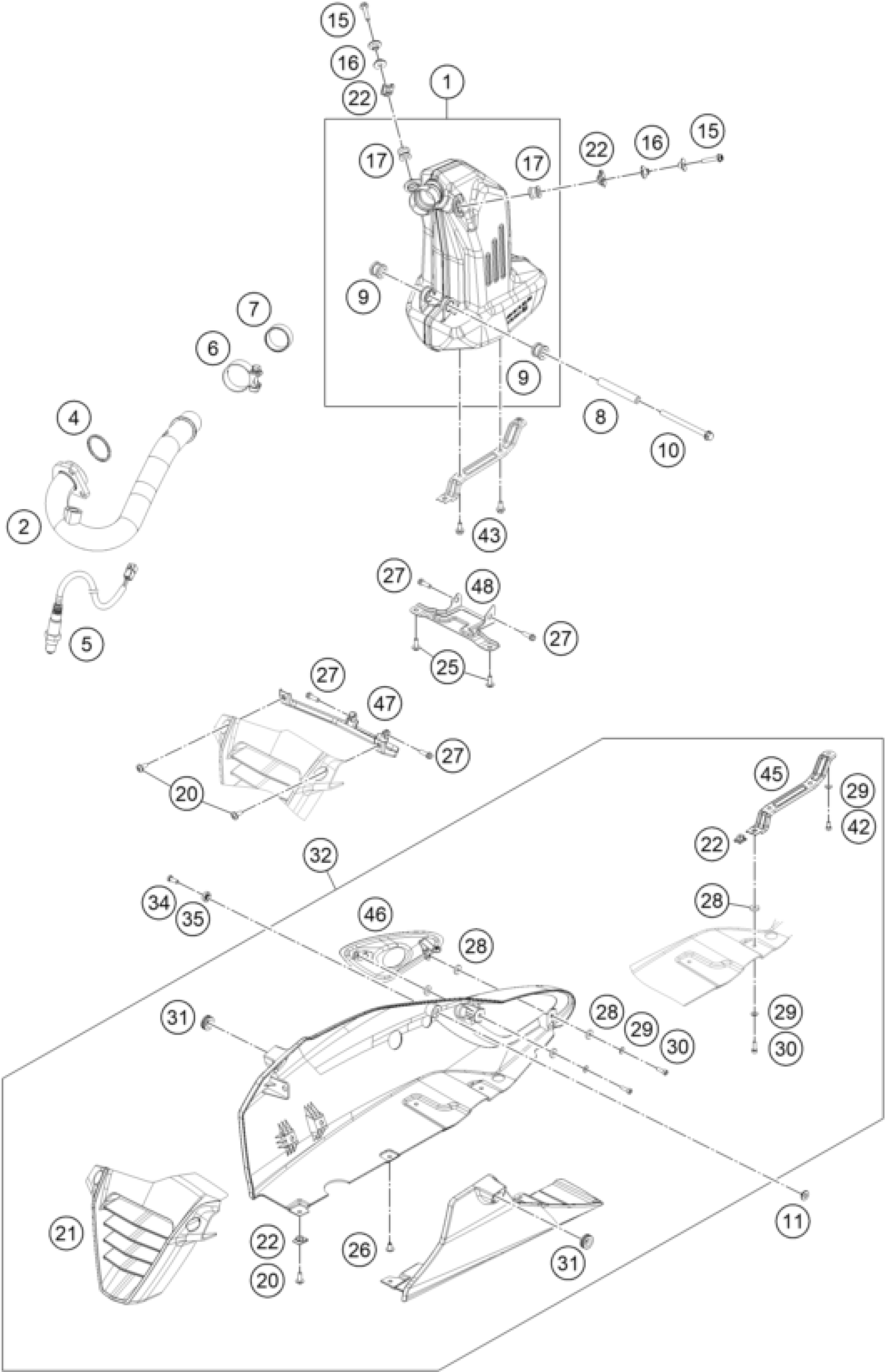

KTM RC 200 BL. w/o ABS B.D. 15 <2015> EXHAUST SYSTEM Diagram

#

Description
Price

2

EXHAUST MANIFOLD

90605007033

Unavailable

4

exhaust flange gasket

90105004000

Unavailable

5

oxygen sensor

90141090000

Unavailable

6

CLAMP CPL.

90105051000

Unavailable

7

SEAL RING EXHAUST PIPE A

90105005000

Unavailable

8

muffler mounting tube

90105084000

Unavailable

9

damper, bottom

90105068100

Unavailable

15

HH COLLAR SCREW M6X25 SW10

J025060256

Unavailable

16

COLLAR BUSH

90105069100

Unavailable

17

DAMPING ELEMENT UPPER

90105068200

Unavailable

20

SPECIAL SCREW M6X1X16

90808043000

Unavailable

21

RADIATOR SHROUD LOWER BLACK

9050802000033

Unavailable

22

clip nut

90103097000

Unavailable

25

SOCKET HEAD BOLT M6X12

90508006001

Unavailable

26

EXPANDING RIVET

90114062001

Unavailable

27

HH COLLAR SCREW M6X20 SW10

J025060203

Unavailable

28

WASHER ASBESTOS

90505090050

Unavailable

29

WASHER D=5,5

90508015010

Unavailable

30

AH SCREW M5X16

J912050163

Unavailable

31

GROMMET SIDE FAIRING

90508055010

Unavailable

34

BOLT SOCKET M6X1XL

90808043001

Unavailable

32

LOWER FAIRING CPL.

9050802003333

Unavailable

35

BUSH FENDER

90508010050

Unavailable

43

HH COLLAR SCREW M6X14 SW10

J025060146

Unavailable

45

BRACKET BELLY PAN MOUNTING

90508028000

Unavailable

1

SILENCER CPL.

90905083033

Unavailable

11

COLLAR BELLY PAN

90508029000

Unavailable

10

HH COLLAR SCREW M8X105 SW12

J027081053

Unavailable

48

BRACKET REAR BELLY PAN

90808027000

Unavailable

46

HEAT SHIELD CPL.

90505090033

Unavailable

47

BRACKET FRONT BELLY PAN

90808026000

Unavailable

42

ALLEN SCREW M5X10

J912050103

Unavailable
