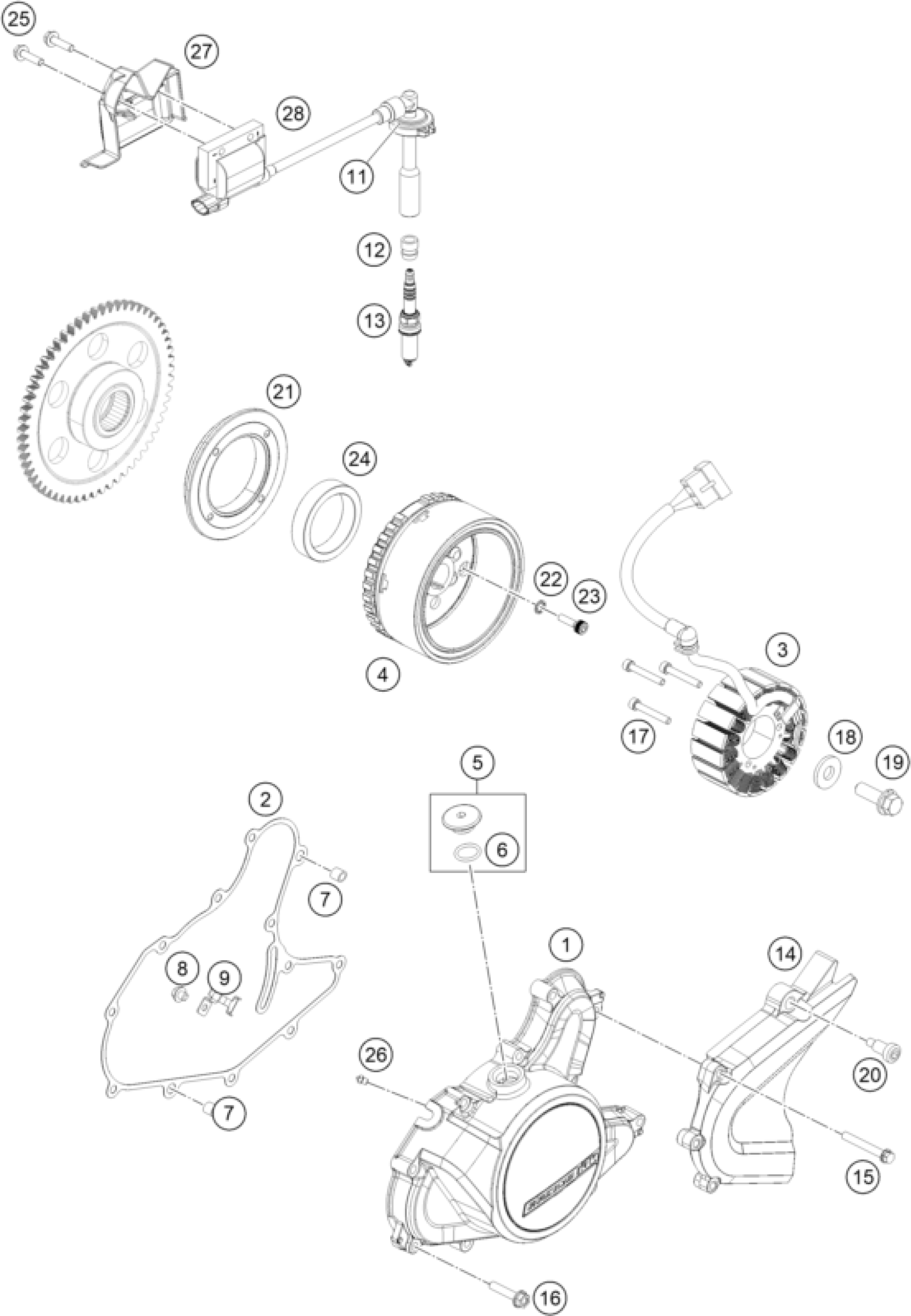

KTM RC 125, orange, 2019 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER

90530002100

Unavailable

2

Gasket magneto cover

93530040000

Unavailable

3

Stator cmpl.

90539004100

Unavailable

4

ROTOR CPL.

90539005000

Unavailable

5

PLUG INCL. O-RING

90130002010

Unavailable

6

O-RING 15,8X2,4

J770015824

Unavailable

7

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

8

HH COLLAR SCREW M5X6

J025060083S

Unavailable

9

BRACKET F. STATORCABLE

90139004002

Unavailable

11

GASKET SPARK PLUG CONNECT.

90139090001

Unavailable

12

Sealing boot spark plug

93839091000

Unavailable

13

SPARK PLUG M12X1,25

90239093000

Unavailable

14

CHAIN SPROCKET GUARD

90103096000

Unavailable

15

HH COLLAR SCREW M6X45

J025060451

Unavailable

16

HH COLLAR SCREW M6X30

J025060301

Unavailable

17

SOCKET HEAD BOLT M5X0,8X40

90530002010

Unavailable

18

WASHER 10,3X29X3,2

J021100003

Unavailable

19

FLANGED BOLT M10X1,25X55

J025100509S

Unavailable

20

special screw M6x24 WS6

90104060010

Unavailable

21

SUPPORT FREEWHEEL CLUTCH

90130001000

Unavailable

22

TOOTHED LOCK WASHER

90130001002

Unavailable

23

SOCKET HEAD SCREW M6X20

90130001001

Unavailable

24

FREEWHEEL CLUTCH

90140026000

Unavailable

25

HH COLLAR SCREW M6X20

J025060209

Unavailable

26

OIL NOZZLE

90130164000

Unavailable

27

COVER HT COIL

90508047000

Unavailable

28

coil assembly ignition

93039006033

Unavailable
