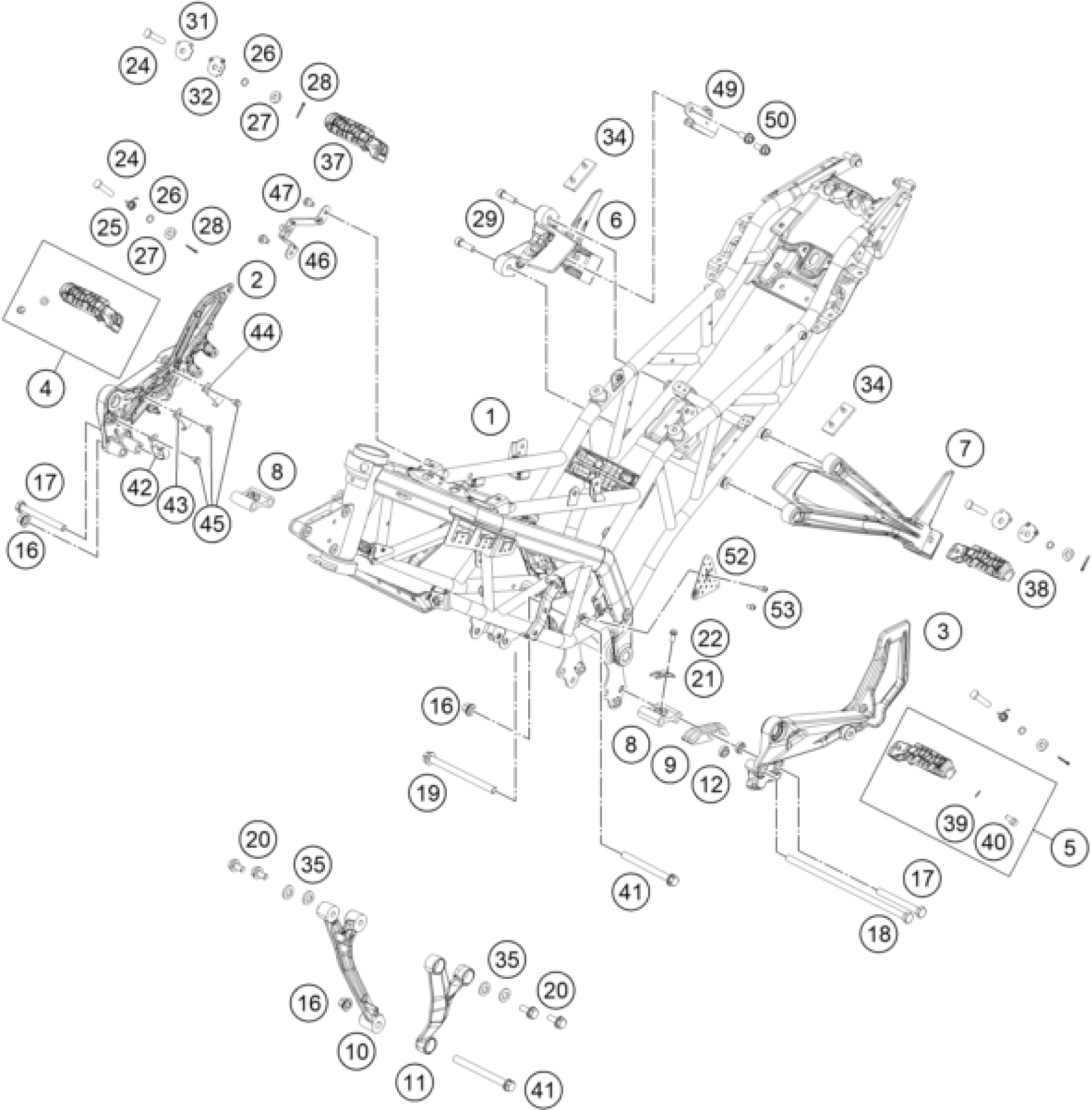

KTM RC 125, orange, 2019 FRAME Diagram

Frame black brilliant

9350300130030

Unavailable

FOOTREST BRACKET FRONT R/S

90503039000

$68.43

FOOTREST BRACKET FRONT L/S

90503038000

$70.86

Front footpeg cmpl. right

93003141033

Unavailable

Front footpeg cmpl. left

93003140033

Unavailable

FOOTREST BRACKET REAR R/S

90503049000

$55.53

FOOTREST BRACKET REAR L/S

90503048000

$55.53

footrest support holder, front

90103038001

$9.90

chainguide

90104070000

$10.84

ENGINE HANGER RH MAT BLACK KT1

93303006000C1

Unavailable

ENGINE HANGER LH MAT BLACK KT1

93303005000C1

Unavailable

spacer chainguide

90104066010

$3.08

FLANGED NUT M10X1.25 WS14

90103038002

$2.05

HH COLLAR SCREW M10X1,25X92

J025100926

$3.08

HH COLLAR SCREW M10X1,25X265

J025102656

$6.35

HH COLLAR SCREW M8X105 SW12

J027081053

$2.05

ISK-Screw M8x25

J912080256

Unavailable

CABLE BRACKET

90111045050

$1.49

FLANGED BOLT M6X14

90103032000

$1.49

BOLT FOR FOOTREST

90503045000

$1.49

Footpeg spring

93003042000

$1.49

O-RING 9X1,5

J770009015

$1.49

WASHER D=8,5

90503048010

$2.05

PIN 25X1,8MM

J094018250

$1.49

BOLT SOCKET M8X1.25XL

90503098000

$1.49

LOCK PLATE LOWER

90503053000

$1.49

LOCK PLATE UPPER

90503052000

$1.49

RUBBER DAMPER FOR FOOTREST

90503050000

$2.05

WASHER M8

J125080005

$1.49

Rear footpeg cmpl. right

93003151033

$21.87

Rear footpeg cmpl. left

93003150033

$21.87

PLAIN WASHER 6,4X12X1

90103040001

$1.49

CAP SCREW M6X10 SS

J029060103S

$2.05

HH COLLAR SCREW M10X110 WS14

J025101103

$3.08

BRAKE HOSE GUIDE FRONT

90113025000

$1.49

BRACKET HOSE CLAMP 2

90513046000

$1.49

BRACKET HOSE CLAMP 1

90513045000

$1.49

HH COLLAR SCREW M6X8 SW8

J025060083

$1.49

BRACKET SIDECOVER

90503034000

$4.11

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

BRACKET SILENCER MTG

93505088000

$6.82

BOLT FLANGED M8X18

J025080183

$1.49

guard cat

93508041080

$2.05

SCREW BUTTON HEAD-M5X0.8XL 8XB

J031060106

$27.11
