Description

Price

1

MUFFLER CPL.

93805083000

Unavailable

2

Header complete

93505007000

Unavailable

3

BUSH MUFFLER

93805095000

$4.11

4

DAMPER MUFFLER

93805096000

$1.49

5

MUFFLER SHIELD

93805011000

$23.18

6

SPECIAL SCREW M6X1X10

90808073000

$1.49

7

GROMMET MUFFLER SHIELD

93805011003

$1.49

8

GASKET PIPE C

93805005100

$6.91

9

CLAMP DIA 60

93805058100

$11.49

10

premuffler

93505050000

$389.70

11

damper, bottom

90105068100

$1.49

12

Catalytic converter

93505091033

Unavailable

13

GASKET PIPE B

93805005000

$6.44

14

CLAMP DIA 54

93805058000

$11.02

15

oxygen sensor

90141090000

$188.11

16

muffler mounting spacer bushin

90205086001

$2.05

17

damper, bottom

90205068000

$2.05

18

muffler mounting tube

90105084000

$4.11

19

exhaust flange gasket

90105004000

$5.23

20

BOLT SILENCER MTG

90105000002

$1.49

21

BOLT FLANGED M8X35

J025080353

$1.49

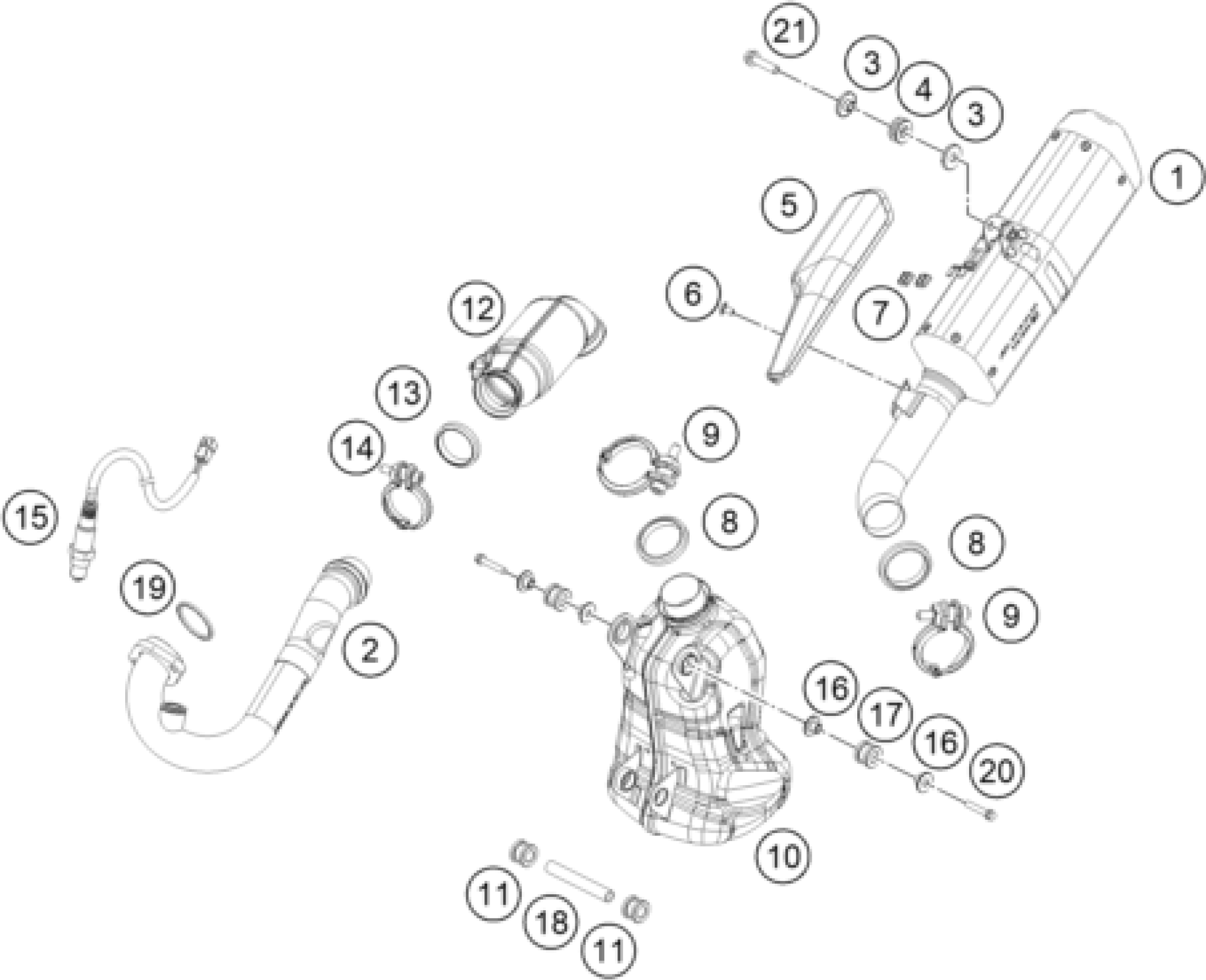

KTM RC 125, orange 2018 EXHAUST SYSTEM Diagram

MUFFLER CPL.

Header complete

BUSH MUFFLER

DAMPER MUFFLER

MUFFLER SHIELD

SPECIAL SCREW M6X1X10

GROMMET MUFFLER SHIELD

GASKET PIPE C

CLAMP DIA 60

premuffler

damper, bottom

Catalytic converter

GASKET PIPE B

CLAMP DIA 54

oxygen sensor

muffler mounting spacer bushin

damper, bottom

muffler mounting tube

exhaust flange gasket

BOLT SILENCER MTG

BOLT FLANGED M8X35
