Description

Price

1

side fairing rh cpl. orange

90508051044EB

Unavailable

2

Side fairing le cpl. orange

90508050044EB

Unavailable

3

BUSH RADIATOR MTG

90503007001

$3.08

4

GROMMET

90508010060

$1.49

5

AIR INTAKE

90508011000

$11.87

6

WASHER D=5,5 BLACK

90514007010

$1.49

7

SCREW K50X12

90508041010

$1.49

8

RUBBER SLEEVE

90507040001

$1.49

9

EXPANDING RIVET

90114062001

$5.98

10

SOCKET HEAD BOLT M6X1X8

90508006004

$1.49

11

BOLT SOCKET M6X1XL

90808043001

$1.49

12

WASHER GFN

90508045000

$1.49

13

FLASHER BLIND COVER R/S

90508054050

Unavailable

14

FLASHER BLIND COVER L/S

90508054000

$2.05

15

AH SCREW M6X42

90508006002

$1.49

16

Lower fairing cpl. orange

93508020044EB

Unavailable

17

BELLY PAN

93808020100

$17.57

18

SLEEVE

93808027000

$2.05

19

GROMMET BELLY PAN

93808026100

$1.49

20

clip nut

90103097000

$4.11

21

SPECIAL SCREW M6X1X16

90808043000

$1.49

22

GROMMET SIDE FAIRING

90508055010

$1.49

23

AH SCREW M6X12

90507047001

$1.49

24

HH COLLAR SCREW M6X90

J026060903

$2.05

25

Support

93508021000

Unavailable

26

Retaining bracket unter-engine

93508026000

Unavailable

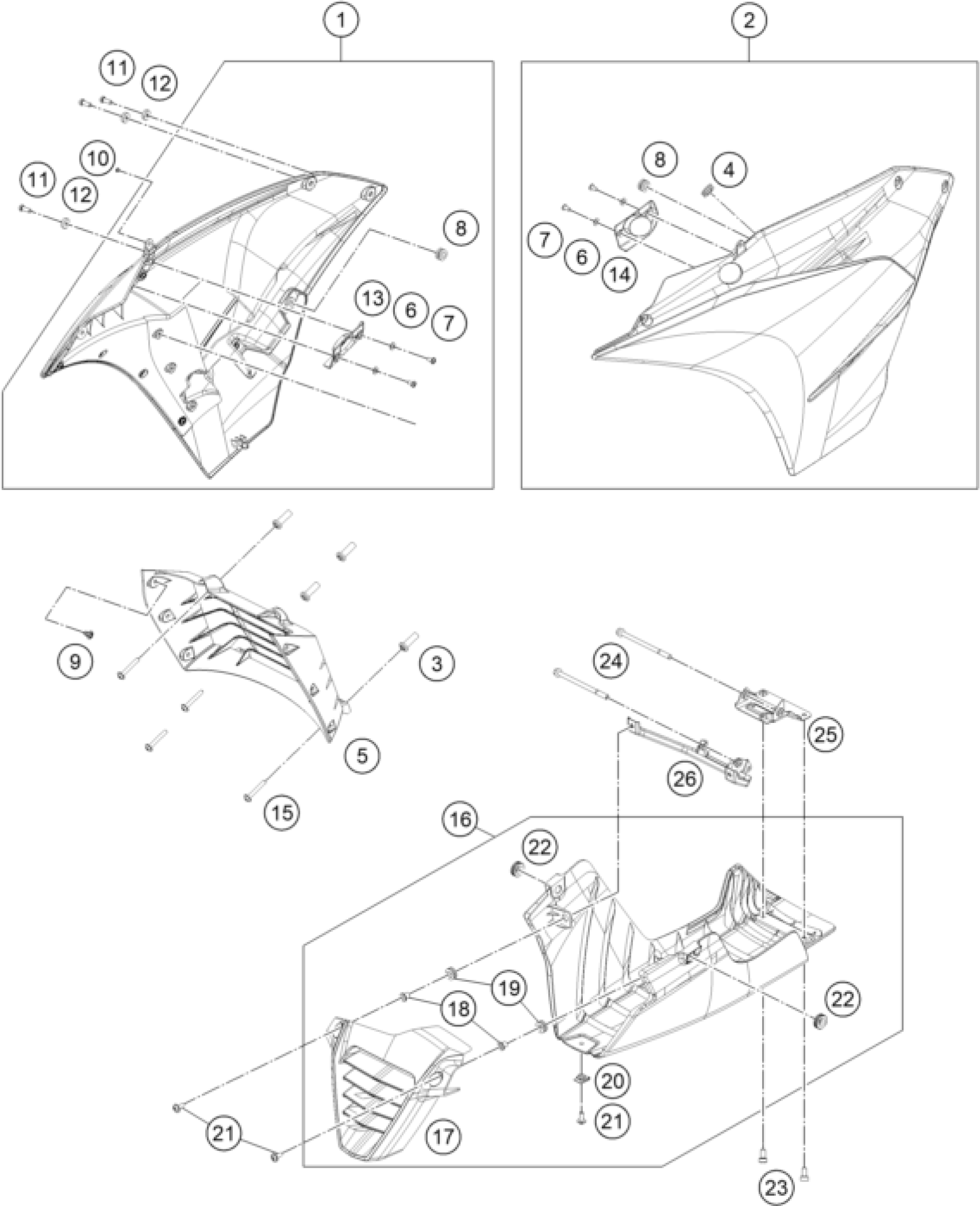

KTM RC 125, orange 2018 COVER Diagram

side fairing rh cpl. orange

Side fairing le cpl. orange

BUSH RADIATOR MTG

GROMMET

AIR INTAKE

WASHER D=5,5 BLACK

SCREW K50X12

RUBBER SLEEVE

EXPANDING RIVET

SOCKET HEAD BOLT M6X1X8

BOLT SOCKET M6X1XL

WASHER GFN

FLASHER BLIND COVER R/S

FLASHER BLIND COVER L/S

AH SCREW M6X42

Lower fairing cpl. orange

BELLY PAN

SLEEVE

GROMMET BELLY PAN

clip nut

SPECIAL SCREW M6X1X16

GROMMET SIDE FAIRING

AH SCREW M6X12

HH COLLAR SCREW M6X90

Support

Retaining bracket unter-engine
