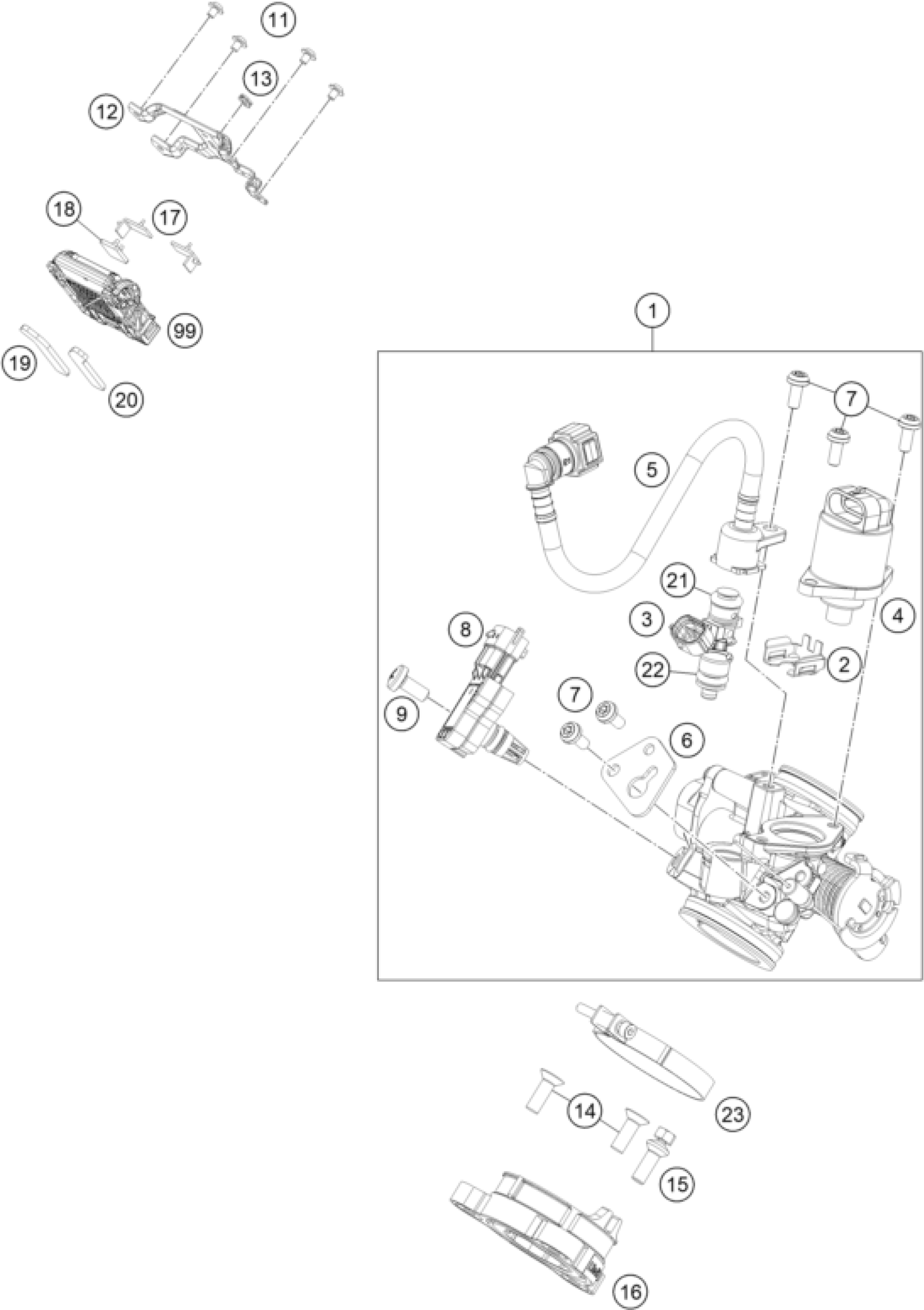

KTM RC 125 ORANGE 2017 THROTTLE BODY Diagram

#

Description
Price

1

Throttle body

93541001000

Unavailable

3

Injector

93541023000

Unavailable

2

INJECTOR CLIP

90141001001

$3.08

4

IDLE ADJUSTER

90641072000

$80.31

11

SOCKET HEAD BOLT M6X1X8

90508006004

$1.49

12

BRACKET ECU MTG TOP

93807017001

$22.43

13

DAMPER ECU

93541034000

$11.49

17

rubber band, ECU

93841036000

$22.99

18

rubber band, ECU, top

93841032000

$22.99

19

rubber band, ECU, right

93841035000

$2.05

20

rubber band, ECU, left

93841030000

$2.05

23

CLAMP

90641002010

$4.11

5

Fuel line complete

93541013044

Unavailable

6

Cable bracket

93241023002

Unavailable

7

SPECIAL SCREW M5X12

90141023005

$1.49

9

SPECIAL SCREW M6X14

90141071001

$5.41

8

TMAP-SENSOR

90141071000

$79.19

16

CONN. FLANGE CYLINDER-THR.BODY

90141002000

Unavailable

14

COUNTERSUNK SCREW M6X20

J991060203S

$1.49

15

Twist-off screw M6X26

93530079000

Unavailable

99

Control unit

93041031000

Unavailable

21

O-ring

55641023020

$10.56

22

O-ring

55641023010

$7.66
