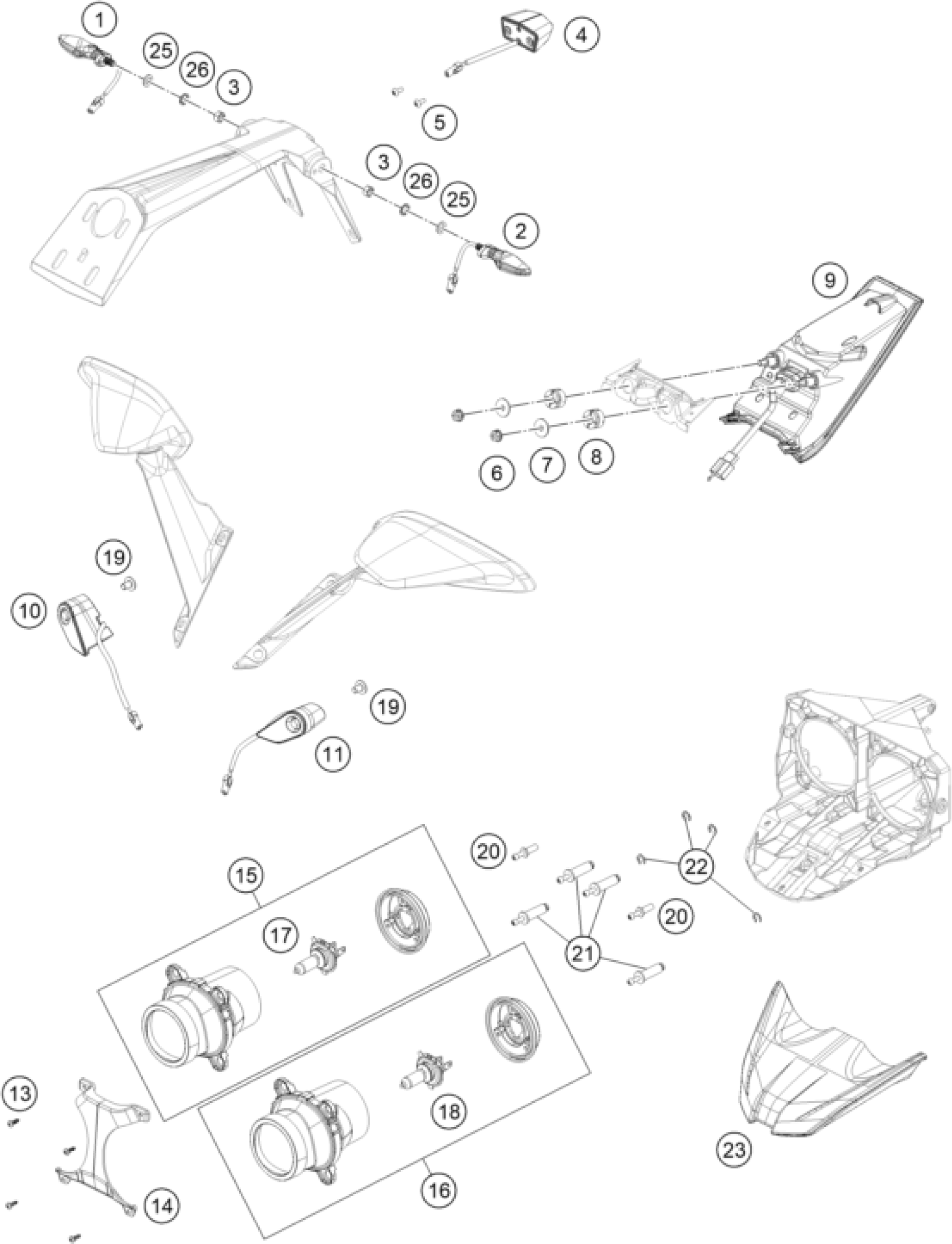

KTM RC 125 ORANGE 2017 LIGHTING SYSTEM Diagram

#

Description
Price

1

FLASHER REAR R/S

90514036100

$43.47

2

FLASHER REAR L/S

90514035100

$46.74

3

FLANGED NUT M10X1.25 WS14

90103038002

$2.05

4

LICENSE PLATE ILLUMINATION

90114047000

$26.55

5

SHEET MET.SCR. DIN 7981 4,2X13

J981420133

$1.49

6

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

7

PLAIN WASHER

90814044000

$1.49

8

GROMMET TOP COVER

90107013004

$2.05

9

REAR LIGHT LED

90514040001

$94.84

10

FLASHER FRONT R/S

90514026000

Unavailable

11

FLASHER FRONT L/S

90514025000

Unavailable

13

SHEET MET.SCR. DIN 7981 3,5X13

J981350133

$1.49

14

COVER POSITION LAMP

90514007000

$5.23

15

HEADLIGHT HIGH BEAM

90514003100

Unavailable

16

HEADLIGHT LOW BEAM

90514001100

$133.88

17

BULB H9 65W

90514003060

$26.17

18

BULB H11 55W

90514003050

$26.92

19

CHEESE-HEAD SCREW M5X8

J031050083

Unavailable

20

FASTENING BOLT HEADLAMP

90514013010

$2.05

21

adjuster screw projector

90514019000

Unavailable

22

CIRCLIP D=6

90514013030

$1.49

23

LAMP PARKING LIGHT

90514004000

$154.73

25

WASHER PLAIN 10,5

J125100003

$1.49

26

TOOTHED WASHER M10

J797100003

$1.49
