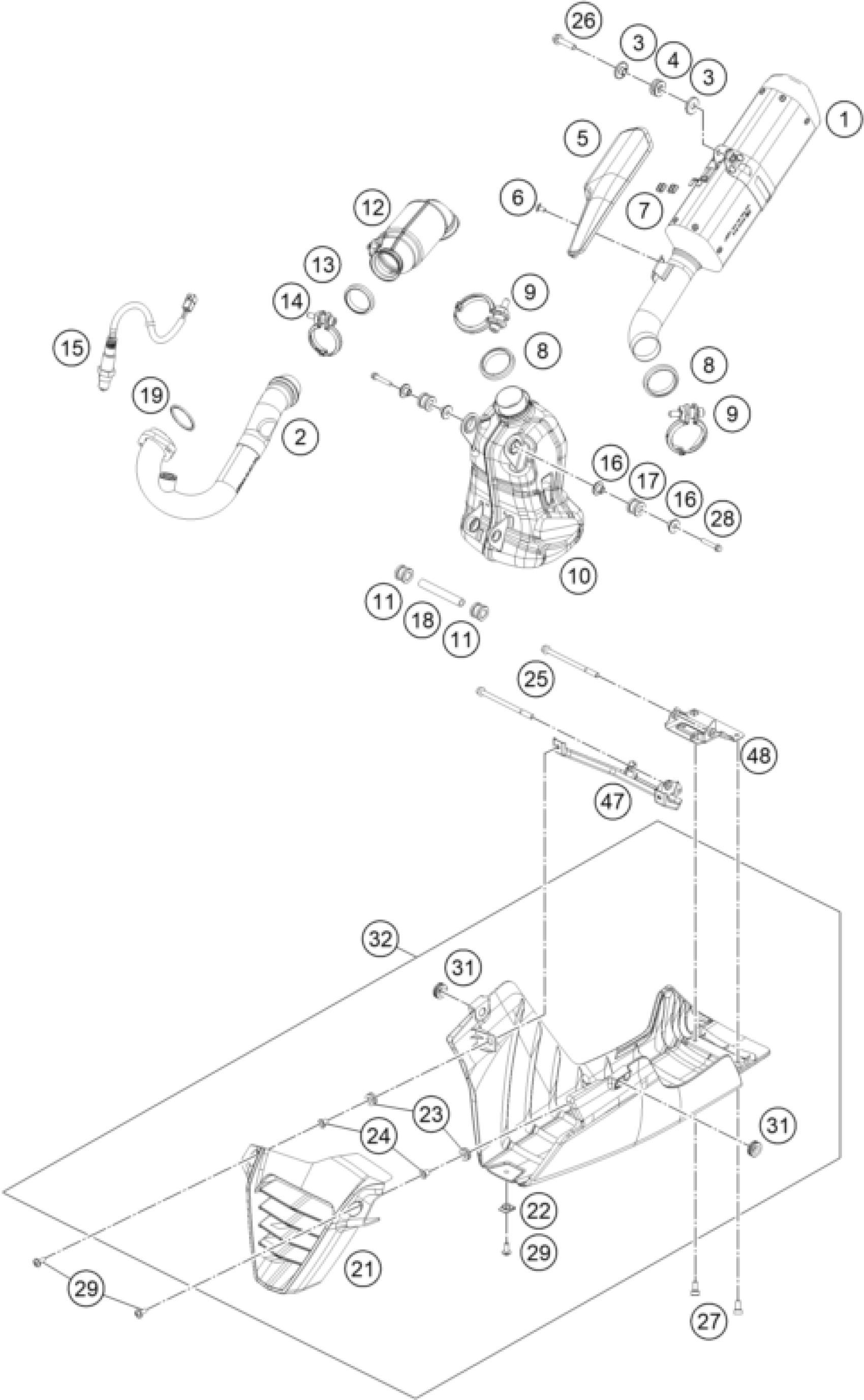

KTM RC 125 ORANGE 2017 EXHAUST SYSTEM Diagram

#

Description
Price

1

MUFFLER CPL.

93805083000

Unavailable

2

Header complete

93505007000

Unavailable

3

BUSH MUFFLER

93805095000

Unavailable

4

DAMPER MUFFLER

93805096000

Unavailable

5

MUFFLER SHIELD

93805011000

Unavailable

6

SPECIAL SCREW M6X1X10

90808073000

Unavailable

7

GROMMET MUFFLER SHIELD

93805011003

Unavailable

8

GASKET PIPE C

93805005100

Unavailable

9

CLAMP DIA 60

93805058100

Unavailable

10

premuffler

93505050000

Unavailable

11

damper, bottom

90105068100

Unavailable

12

Catalytic converter

93505091033

Unavailable

13

GASKET PIPE B

93805005000

Unavailable

14

CLAMP DIA 54

93805058000

Unavailable

15

oxygen sensor

90141090000

Unavailable

16

muffler mounting spacer bushin

90205086001

Unavailable

17

damper, bottom

90205068000

Unavailable

18

muffler mounting tube

90105084000

Unavailable

19

exhaust flange gasket

90105004000

Unavailable

21

BELLY PAN

93808020100

Unavailable

22

clip nut

90103097000

Unavailable

23

GROMMET BELLY PAN

93808026100

Unavailable

24

SLEEVE

93808027000

Unavailable

26

BOLT FLANGED M8X35

J025080353

Unavailable

28

BOLT SILENCER MTG

90105000002

Unavailable

31

GROMMET SIDE FAIRING

90508055010

Unavailable

32

Lower fairing cpl. orange

93508020044EB

Unavailable

47

Retaining bracket unter-engine

93508026000

Unavailable

48

Support

93508021000

Unavailable

29

SPECIAL SCREW M6X1X16

90808043000

Unavailable

25

HH COLLAR SCREW M6X90

J026060903

Unavailable

27

AH SCREW M6X12

90507047001

Unavailable
