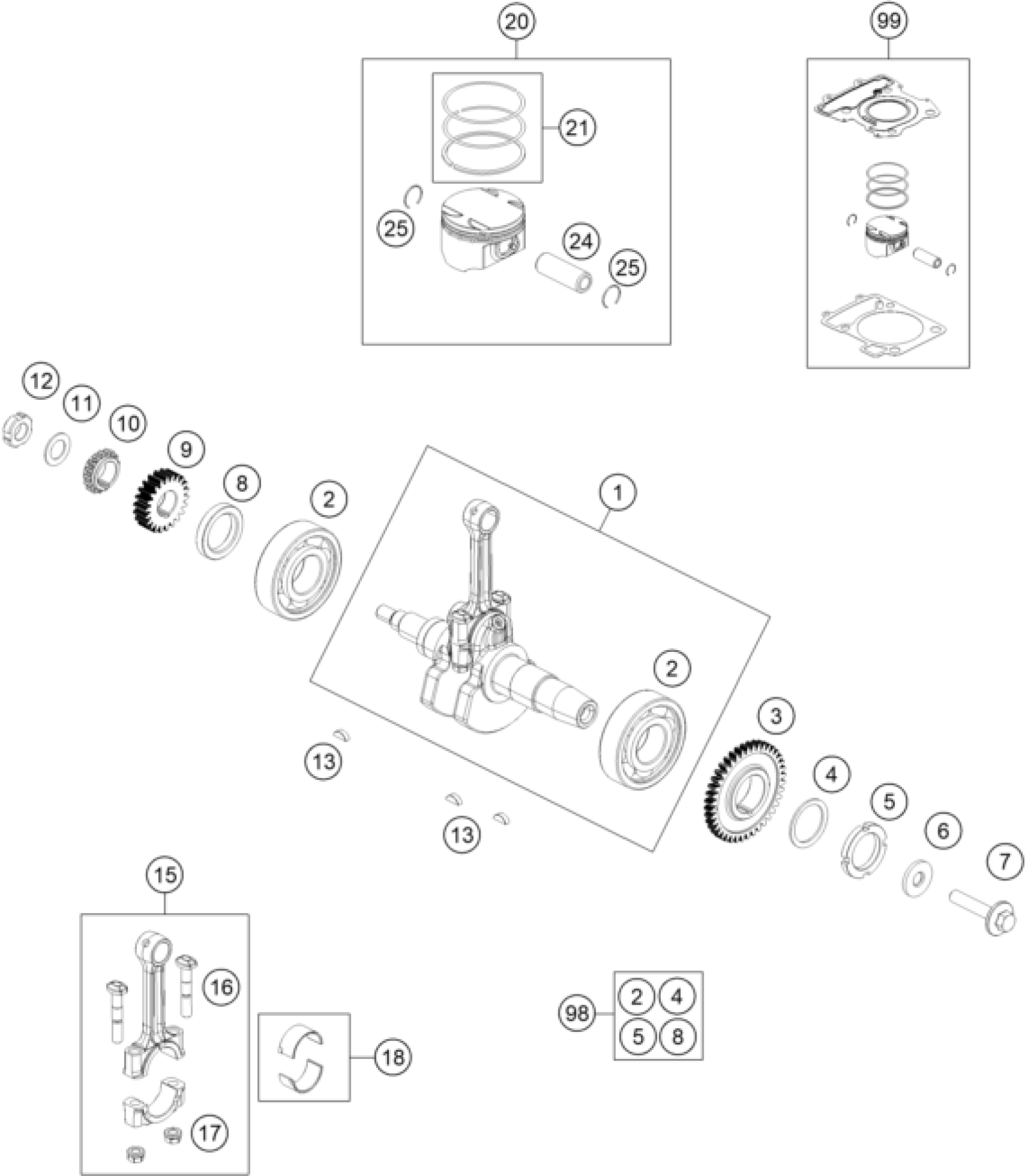

KTM RC 125 ORANGE 2017 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

90130018000

Unavailable

2

BALL BEARING 63/2/8 HN3CNP

90130082000

Unavailable

3

DRIVE WHEEL CRANKSH. F. AGW

90130018006

Unavailable

4

CONICAL WASHER 28,35X38X1,75

90230069000

Unavailable

5

NUT FOR DRIVE WHEEL AGW

90130018008

Unavailable

6

WASHER 10,3X29X3,2

J021100003

Unavailable

7

FLANGED BOLT M10X1,25X55

J025100509S

Unavailable

8

SPACER SHIM

90130018003

Unavailable

9

PRIMARY GEAR 22T.

90132024000

Unavailable

10

TIMING GEAR 17 T.

90136014017

Unavailable

11

WASHER PRIMARY DRIVE GEAR

90130029050

Unavailable

12

NUT SPROCKET DRIVE LOCK M14

90132025000

Unavailable

13

WOODRUFF KEY 4X5X13

J888040050

Unavailable

15

CONNECTING ROD CPL.

90130015000

Unavailable

16

CONNECTING-ROD BOLT

90130015001

Unavailable

17

NUT F. CONNECTING-ROD BOLT

90130015002

Unavailable

18

CON ROD BEARING SHELL

90130015010

Unavailable

18

CON ROD BEARING SHELL GREEN

90130015011

Unavailable

18

CON ROD BEARING SHELL BLUE

90130015012

Unavailable

20

Piston cpl.

90130007033

Unavailable

21

PISTON RING CPL.

90130030010

Unavailable

24

PISTON BOLT

90130033000

Unavailable

25

CIRCLIP

90130074000

Unavailable

98

CRANKSHAFT REP. KIT DUKE

00050002314

Unavailable

99

PISTON KIT 125 DUKE 11-13

00050000210

Unavailable
