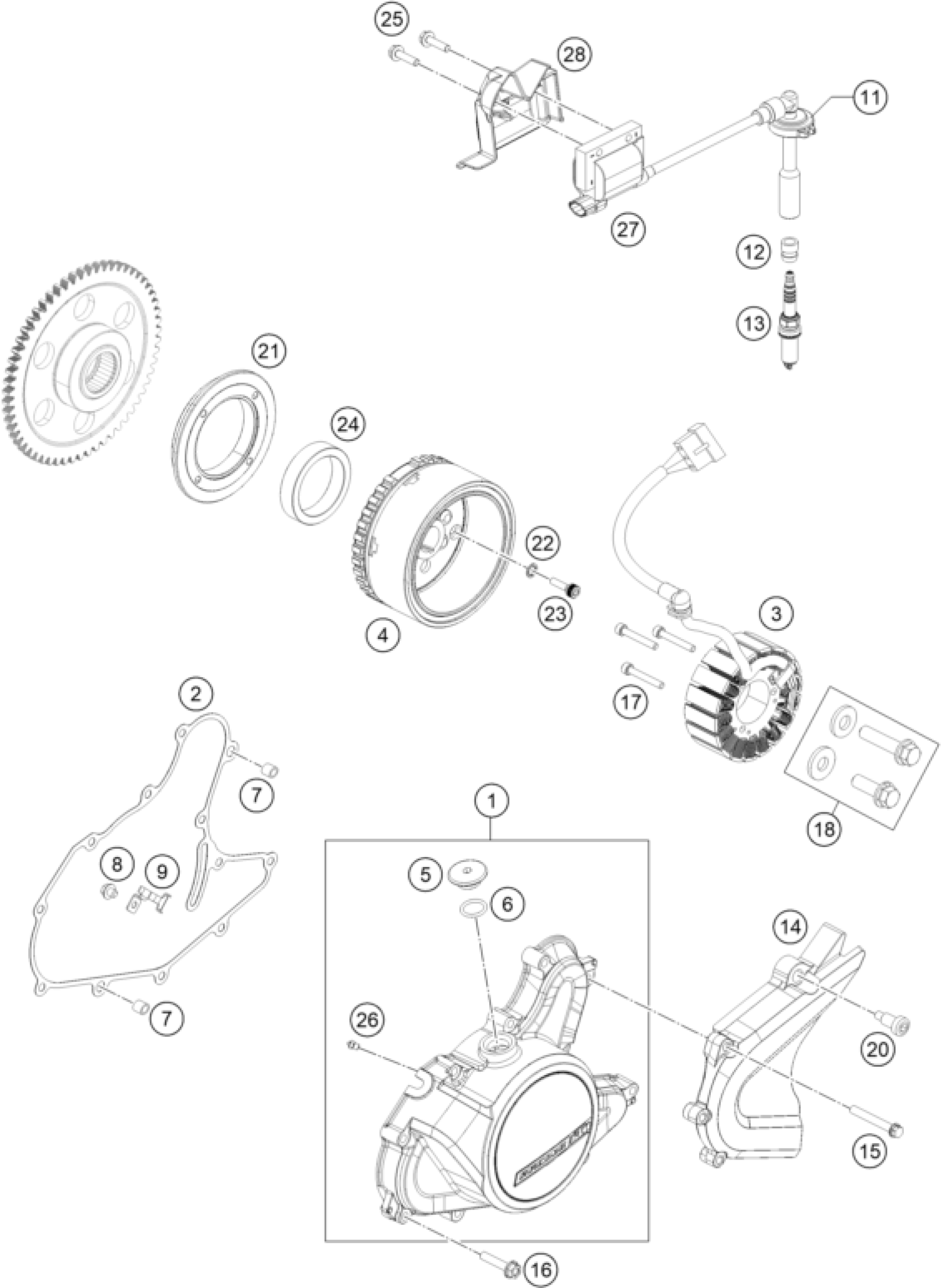

KTM RC 125, grey 2020 IGNITION SYSTEM Diagram

#

Description
Price

1

COVER ASSEMBLY MAGNETO

94130002233

Unavailable

2

Ignition cover gasket

93530040100

Unavailable

3

Stator lose

93639004000

Unavailable

4

ROTOR CPL.

90539005000

Unavailable

5

Screw plug, OT marking

93839010100

Unavailable

6

O-RING 15,8X2,4

J770015824

Unavailable

7

PIN DOWEL 8X6,4X14MM

90130024000

Unavailable

8

Hex collar screw M5X8

J025050081

Unavailable

9

BRACKET F. STATORCABLE

90139004002

Unavailable

11

GASKET SPARK PLUG CONNECT.

90139090001

Unavailable

12

Sealing boot spark plug

93839091000

Unavailable

13

SPARK PLUG M12X1,25

90239093000

Unavailable

14

CHAIN SPROCKET GUARD

90103096000

Unavailable

15

HH COLLAR SCREW M6X45

J025060451

Unavailable

16

HH COLLAR SCREW M6X30

J025060301

Unavailable

17

SOCKET HEAD BOLT M5X0,8X40

90530002010

Unavailable

18

SCREW DRIVE GEAR KIT

90130018044

Unavailable

20

special screw M6x24 WS6

90104060010

Unavailable

21

SUPPORT FREEWHEEL CLUTCH

90130001000

Unavailable

22

TOOTHED WASHER M6

J797060003

Unavailable

23

SOCKET HEAD SCREW M6X20

90130001001

Unavailable

24

FREEWHEEL CLUTCH

90140026000

Unavailable

25

HH COLLAR SCREW M6X20

J025060209

Unavailable

26

OIL NOZZLE

90130164000

Unavailable

27

coil assembly ignition

93039006033

Unavailable

28

COVER HT COIL

90508047000

Unavailable
