Partiron

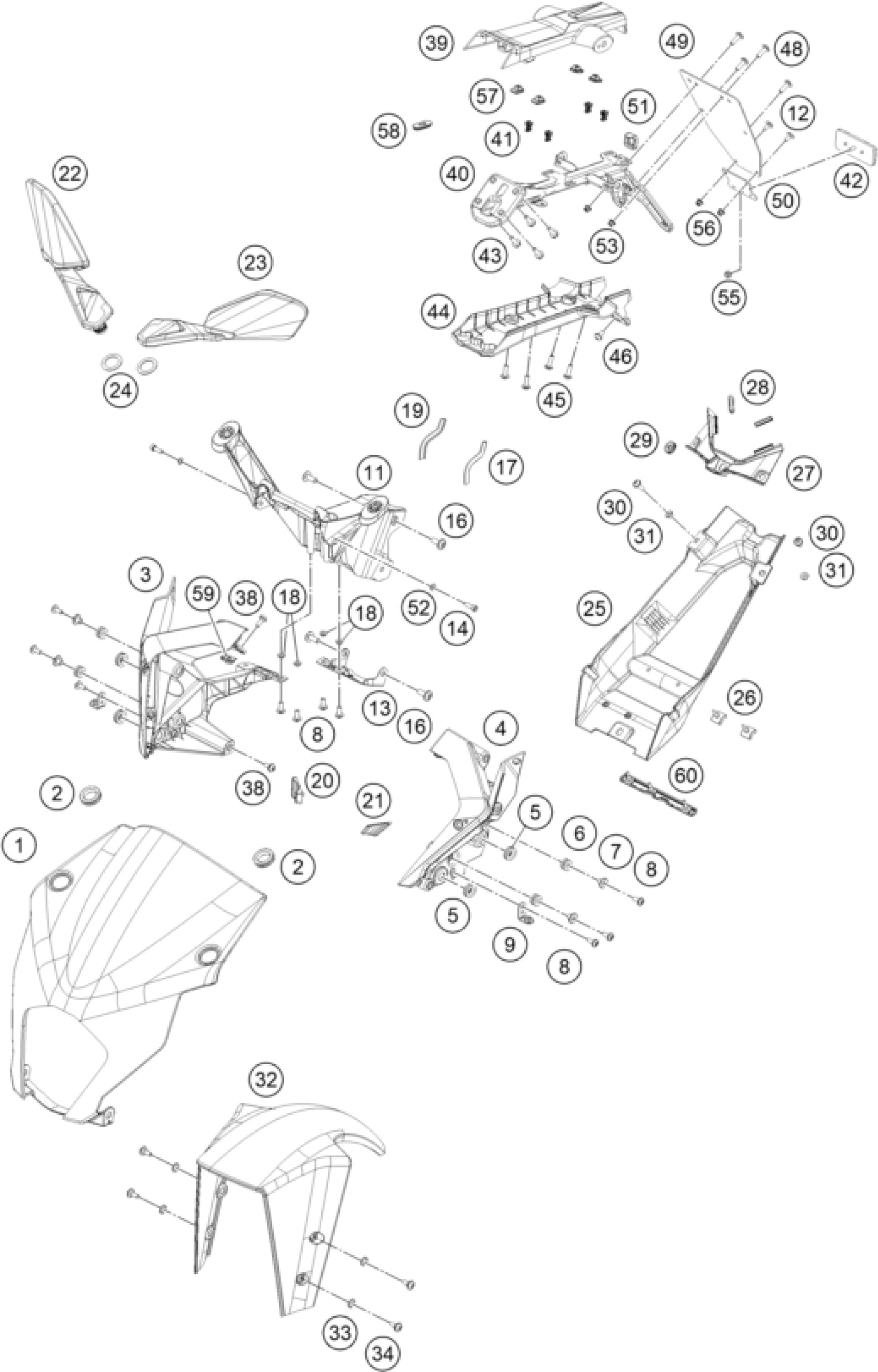

KTM RC 125, GP orange 2023 MASK, FENDERS Diagram

#

Description
Price

1

Windshield

94508108000

Unavailable

2

Rubber grommet 35x29.6

J650003503000

$1.49

3

Structure faring right

94514011000

$80.03

4

Structure faring left

94514010000

$80.03

5

GROMMET

J650002201400

$1.49

6

Rubber bushing

93014017000

$1.49

7

Collar head lamp holder MTG

93014018100

$1.49

8

Flat-head screw M6

93006039000

$1.49

9

Angle for bracket, side fairin

94508047010

$1.49

11

Mask support bracket

94514013000BM

$135.19

12

FLAT HEAD SCREW M5X12 PH

J005050123

$1.49

13

Cover, mask support

94514013010

$4.85

14

hexagon socket screw M6X18

J912060183

$1.49

16

SCREW BUTTON HEAD M8X1.25

J900000801901

$1.49

17

Edge protection, mask support,

94514013030

$1.49

18

sleeve for hose clamp

90113055010

$1.49

19

BEADING RH

94514013040

$1.49

20

Damper, windshield, right

94514011010

$1.49

21

Damper, windshield, left

94514010010

$1.49

22

Mirror, right, preass.

94512041033

$75.17

23

Mirror, left, preass.

94512040033

$75.54

24

WASHER PLAIN

J690002400100

$1.49

25

TRAY UNDER

94508019000

$16.35

26

Fuel tank rubber

94508019001

$1.49

27

Cover rear fairing, bottom

94508019010

$2.98

28

Edge protection

94508030000

$1.49

29

Rubber grommet

J650002001400

$1.49

30

SPECIAL SCREW M6X1X16

90808043000

$1.49

31

Collar bushing 6.2x6.5

J800000600701

$1.49

32

FR FENDER JY181428 EB ORG MATT

94508010000EBA

$111.82

33

Washer nylon

93009059000

$1.49

34

Panhead screw with shoulder

J031050161

$1.49

38

Screw M6X1X13

93008040000

$1.49

39

License plate holder support,

94508015010

$16.73

40

License plate holder support

94508015030

$49.83

41

Metallic quick lock

J340001201100

$1.49

42

REFLECTOR

90514045000

$3.08

43

Bolt-Flange-Kad ST-A DIA-06 L-

J025060202

$1.49

44

License plate holder, bottom p

94508015020

$16.63

45

Screw M6X1X13

93008040000

$1.49

46

Screw M6X1X9

93008020060

$2.05

48

screw truss-M6X1XL 16Xblack

93014098000

$1.49

49

REAR FENDER EXT.

90808016000

$3.08

50

REFLECTOR MOUNTING

90514044000

$2.05

51

Protection rubber

93008015010

$1.49

52

WASHER PLAIN SMALL-6.5X11.5XT0

J690000600100

$1.49

53

Hexagon nut M6

93008036000

$1.49

55

Hex collar nut, M5

J06923050053

$1.49

56

HEX NUT M5 AF8

90102031010

$1.49

57

Nut - Clip M6

J910000600504

$1.49

58

grommet

93008015060

$1.49

59

clip nut

90103097000

$4.11

60

DAMPER

94508019002

$1.67
