Description

Price

1

Dash

94814069000

$924.15

2

PIN SPIGOT

94514060010

$2.05

3

BRACKET SPEEDOMETER

94614060000

$5.88

5

SCREW TRUSS-M5X0.8XL 10XBLACK

J900000501002

$1.49

6

GROMMET

J650002001100

$1.49

8

screw m6x1

J900000601601

$1.49

12

ADV. 390 IGNITION SWITCH

21011066000

$58.99

13

screw m6x1

J900000601601

$1.49

14

Seat lock preass.

94507050033

$7.75

15

HH COLLAR SCREW M6X18 SW10

J025060183

$1.49

16

PLATE SEAT LOCK

90107050151

$1.49

17

seat lock mounting plate

90107050051

$2.05

18

LOCK 3 IN 1 WITHOUT CAP EVP

94611066044

$169.88

19

BLANK KEY 125/200 DUKE

90111067100

Unavailable

19

KEY

90111067000

$130.05

21

SEAT LOCK

90107050050

$34.12

22

COVER SWITCH IGNITION

94511068000

$5.04

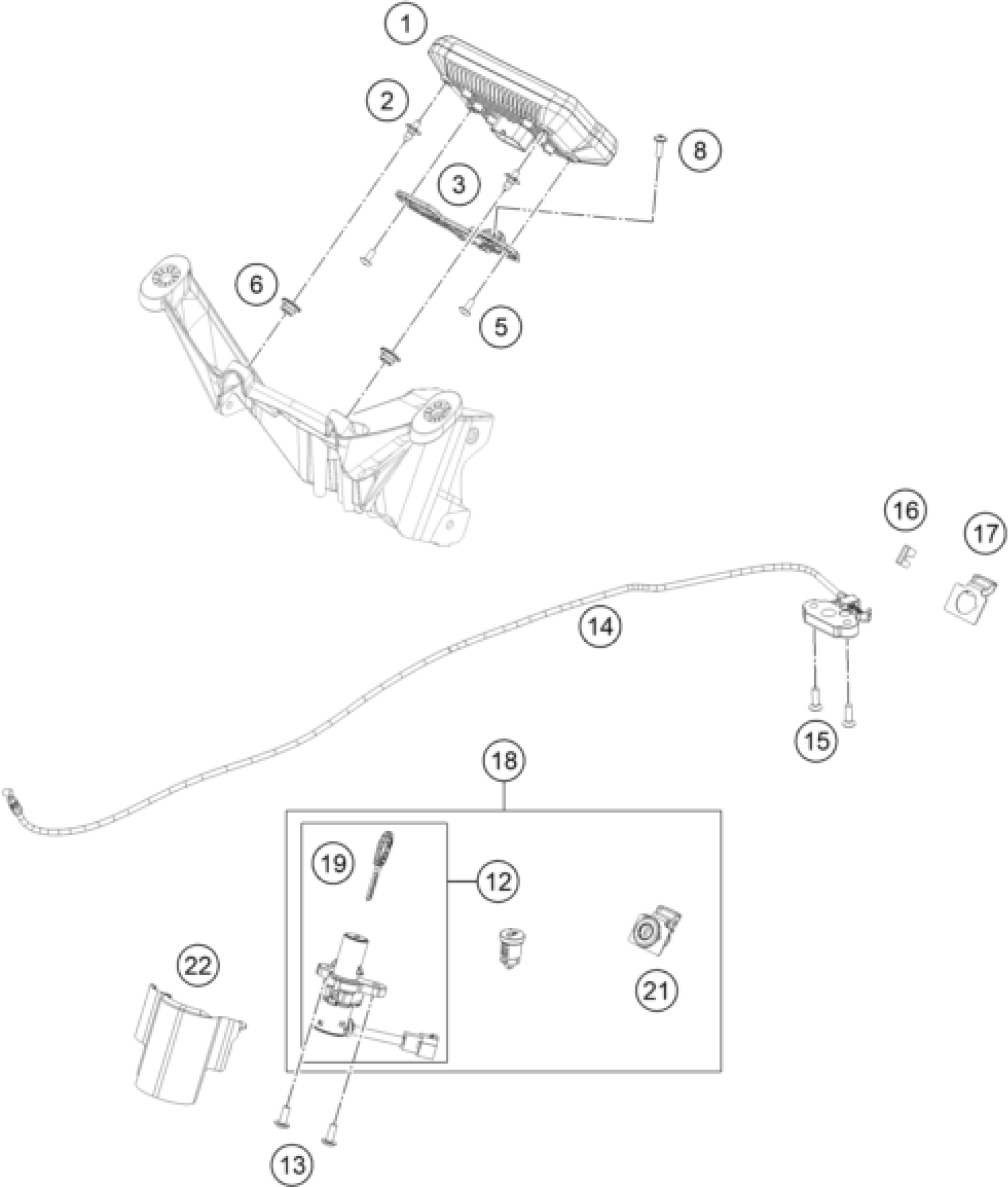

KTM RC 125, GP orange 2023 INSTRUMENTS / LOCK SYSTEM Diagram

Dash

PIN SPIGOT

BRACKET SPEEDOMETER

SCREW TRUSS-M5X0.8XL 10XBLACK

GROMMET

screw m6x1

ADV. 390 IGNITION SWITCH

screw m6x1

Seat lock preass.

HH COLLAR SCREW M6X18 SW10

PLATE SEAT LOCK

seat lock mounting plate

LOCK 3 IN 1 WITHOUT CAP EVP

BLANK KEY 125/200 DUKE

KEY

SEAT LOCK

COVER SWITCH IGNITION
