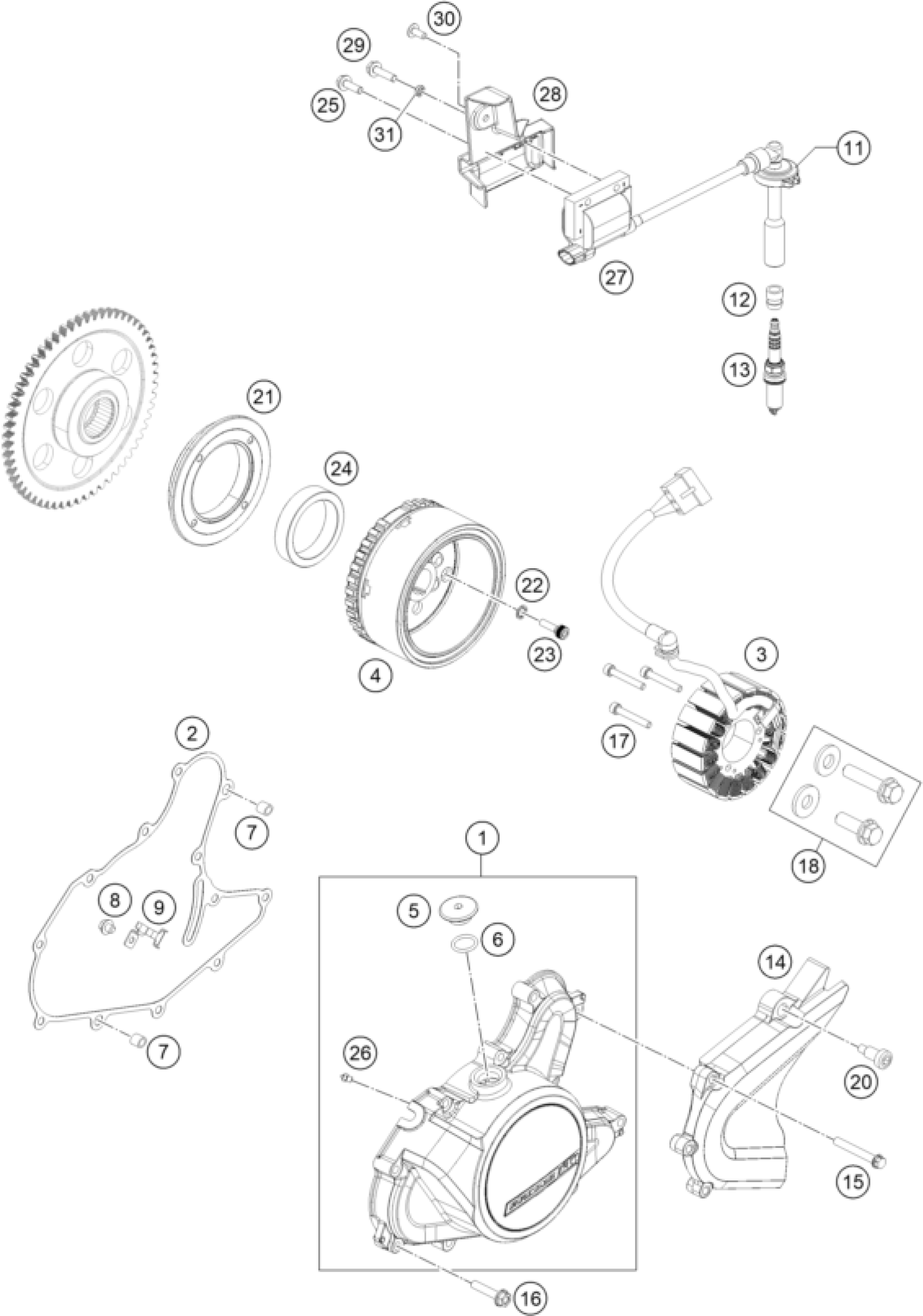

KTM RC 125, GP orange 2023 IGNITION SYSTEM Diagram

#

Description
Price

1

COVER ASSEMBLY MAGNETO

94130002233

$62.73

2

Ignition cover gasket

93530040100

$4.11

3

STATOR ASSEMBLY

94539004000

$105.37

4

rotor assembly

94539005000

Unavailable

5

Screw plug, OT marking

93839010100

$1.49

6

O-RING 15,8X2,4

J770015824

$1.49

7

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

8

Hex collar screw M5X8

J025050081

$1.49

9

BRACKET F. STATORCABLE

90139004002

$1.49

11

GASKET SPARK PLUG CONNECT.

90139090001

$2.05

12

Sealing boot spark plug

93839091000

$1.49

13

Spark plug BOSCH VR6NEU M12X1.

93839093000

$8.22

14

CHAIN SPROCKET GUARD

90103096000

$8.31

15

HH COLLAR SCREW M6X45

J025060451

$1.49

16

HH COLLAR SCREW M6X30

J025060301

$1.49

17

AH SCREW M5X35 SELF LOCKING

J912050353S

$1.49

18

SCREW DRIVE GEAR KIT

90130018044

$9.20

20

special screw M6x24 WS6

90104060010

$1.49

21

SUPPORT FREEWHEEL CLUTCH

90130001000

$37.95

22

TOOTHED WASHER M6

J797060003

$1.49

23

SOCKET HEAD SCREW M6X20

90130001001

$1.49

24

FREEWHEEL CLUTCH

90140026000

$97.42

25

BOLT-FLANGED-SMALL

J900000602201

$1.49

26

OIL NOZZLE

90130164000

$27.57

27

coil assembly ignition

93039006033

$37.95

28

Cover ignition coil

94539006010

Unavailable

31

SLEEVE UNDER TRAY

90508016050

$1.49

29

BOLT-FLANGE-KAD ST-A DIA-06 L-

J900000603000

Unavailable

30

SOCKET HEAD BOLT M6X12

90508006001

$1.49
