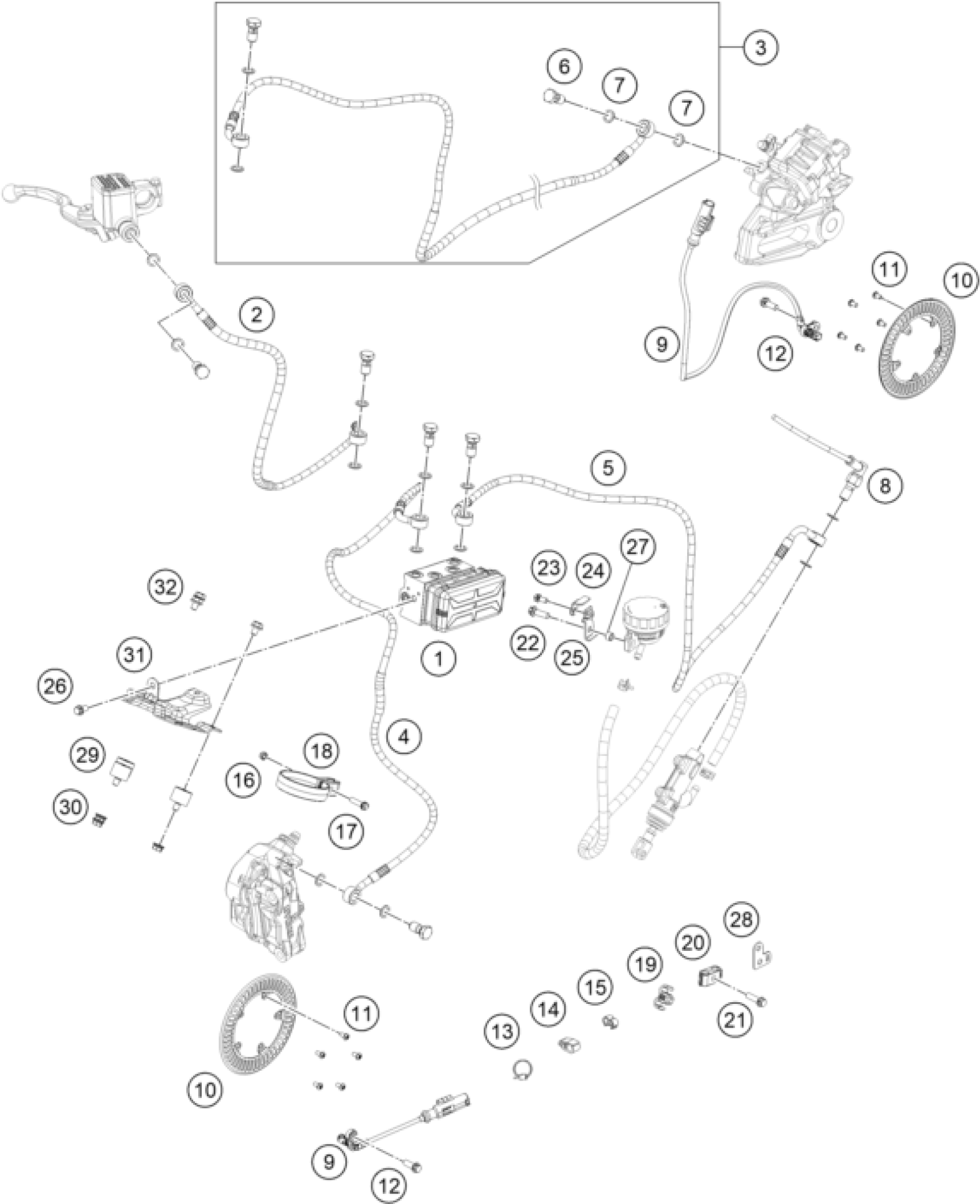

KTM RC 125, GP orange 2023 ABS Diagram

#

Description
Price

1

ABS Unit WET

94542031044

Unavailable

2

HOSE CYLINDER MASTER FR-UNIT A

94842001000

Unavailable

3

HOSE UNIT ABS-CALIPER REAR

94542004044

Unavailable

4

HOSE UNIT ABS-CALIPER FRONT

94842003000

Unavailable

5

HOSE CYLINDER MASTER RR-UNIT A

94542002000

Unavailable

6

BANJO SCREW

90113013000

Unavailable

7

COPPER GASKET

90113026000

Unavailable

8

brake light switch, rear

90111051000

Unavailable

9

Wheel speed sensor

96342025000

Unavailable

10

Sensor wheel, front

94542020000

Unavailable

11

BOLT SOCKET M5X0.8

J900000500800

Unavailable

12

BOLT-FLANGE-KAE ST-F DIA-06 L-

J900000601606

Unavailable

13

BAND

93811093000

Unavailable

14

CLIP SEPARATOR

94313026010

Unavailable

15

CLAMP SENSOR CABLE

93813035000

Unavailable

16

NUT NYLOC-M5X0.8XHT. 4.5XCL6XB

J910000800500

Unavailable

17

bolt flanged M5x0.8

J900000502001

Unavailable

18

CLAMP

J320001505300

Unavailable

19

Brake hose bracket

94513026000

Unavailable

20

clamp

94801085000

Unavailable

21

BOLT-FLANGED-SMALL

J900000602201

Unavailable

22

Hex collar screw M6X18

J025060181

Unavailable

23

HH-COLLAR SCREW M5X10

J025050103

Unavailable

24

Bracket, reservoir

93013068010

Unavailable

25

Sheet

93013068000

Unavailable

26

HH-COLLAR SCREW M6X10 SW8

J025060109

Unavailable

27

Spacer bushing

93035065020

Unavailable

28

PLATE CLAMP

94513046000

Unavailable

29

SILENT BLOCK AIRFILTER

90106001007

Unavailable

30

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

Unavailable

31

ABS module holder

94142040000

Unavailable

32

bolt-flange-kad st-f dia-06 l-

J900000601801

Unavailable
