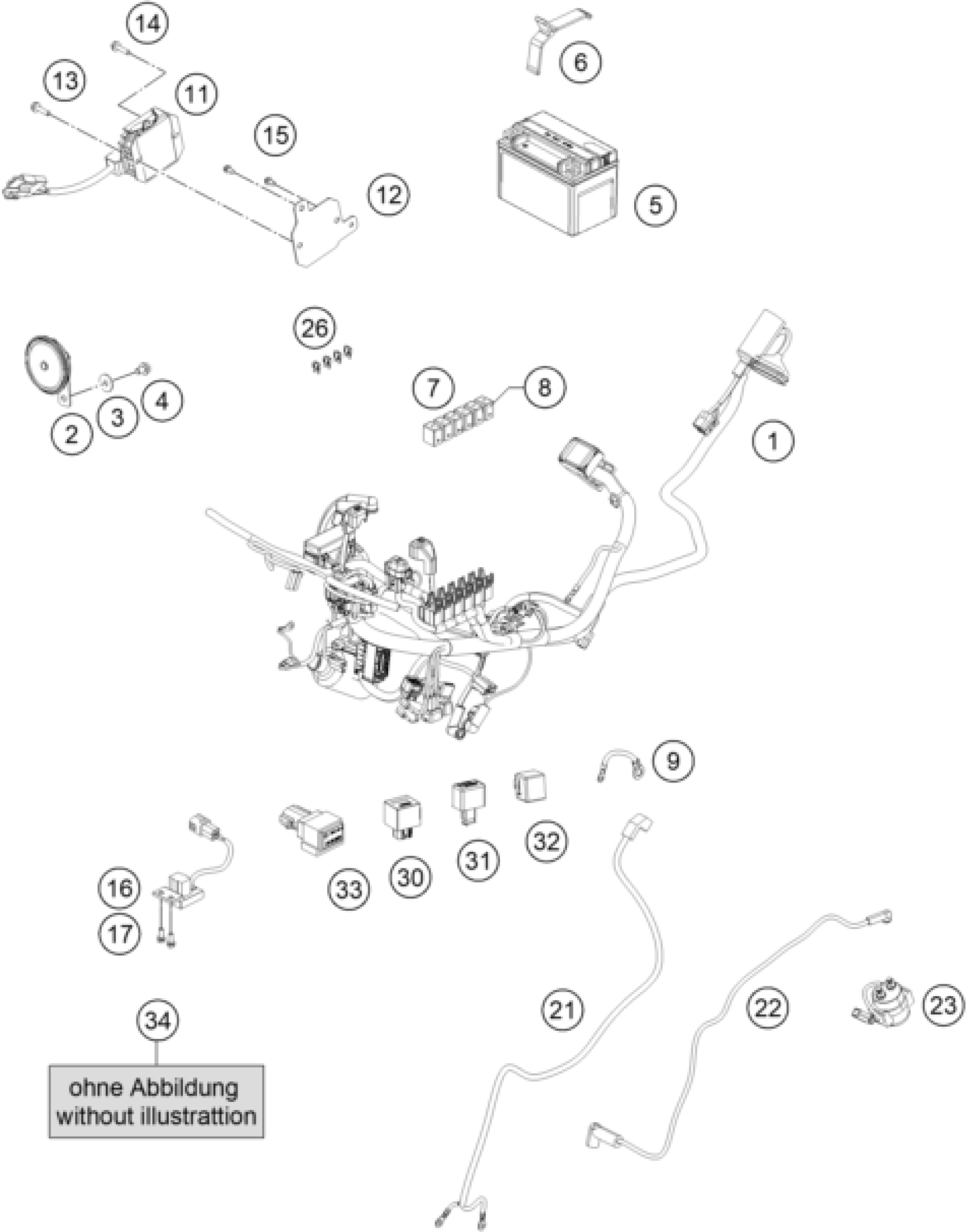

KTM RC 125 BLACK / ABS 2015 WIRING HARNESS Diagram

#

Description
Price

22

STARTER CABLE

90811059000

$15.89

26

FUSE 15A 07

75011088015

$4.11

26

FUSE 30A

75011088030

$3.08

16

ROLL OVER SENSOR

90141088000

$31.88

17

HH-COLLAR SCREW M5X10

J025050103

$1.49

7

relay (interlock)

90611057000

$24.49

8

RELAY (AUX1DIODE)

90611157000

$24.58

12

BRACKET VOLTAGE REGULATOR

90511134010

$5.79

14

bolt flanged M6X25

J025060253

$1.49

11

voltage regulator

90511034000

$142.11

15

HH-COLLAR SCREW M6X10 SW8

J025060109

$1.49

5

BATTERY 12V/8AH

90611053000

$137.81

9

earth wire

90211097000

$9.72

26

FUSE 10A 07

75011088010

$4.11

2

HORN 82 DIA

90111060100

$22.81

1

WIRING HARNESS

90511275000

Unavailable

3

WASHER PLAIN 8,4X25X2

90111060010

$1.49

4

HH COLLAR SCREW M8X12 SW12

J025080123

$1.49

6

BRACKET RUBBER FOR BATTERY

90511054001

$3.08

23

STARTER RELAY

90111058000

$25.80

21

GROUND CABLE

90511097000

$10.56

26

FUSE MINI 5A

75011088005

$6.91

13

FLANGED BOLT M6X30 WS10

J025060303

$1.49

30

IGNITION UNIT

90539010000

$48.52

31

indicator relay

90511030000

$29.44

32

CONTROL UNIT HEAD LIGHT

90511021000

$37.20

34

Pigtail oil pressure switch

90838091000

$2.05

34

Cable earth ABS

93042033000

$2.05

33

CAN TERMINATION UNIT

90111040000

Unavailable
