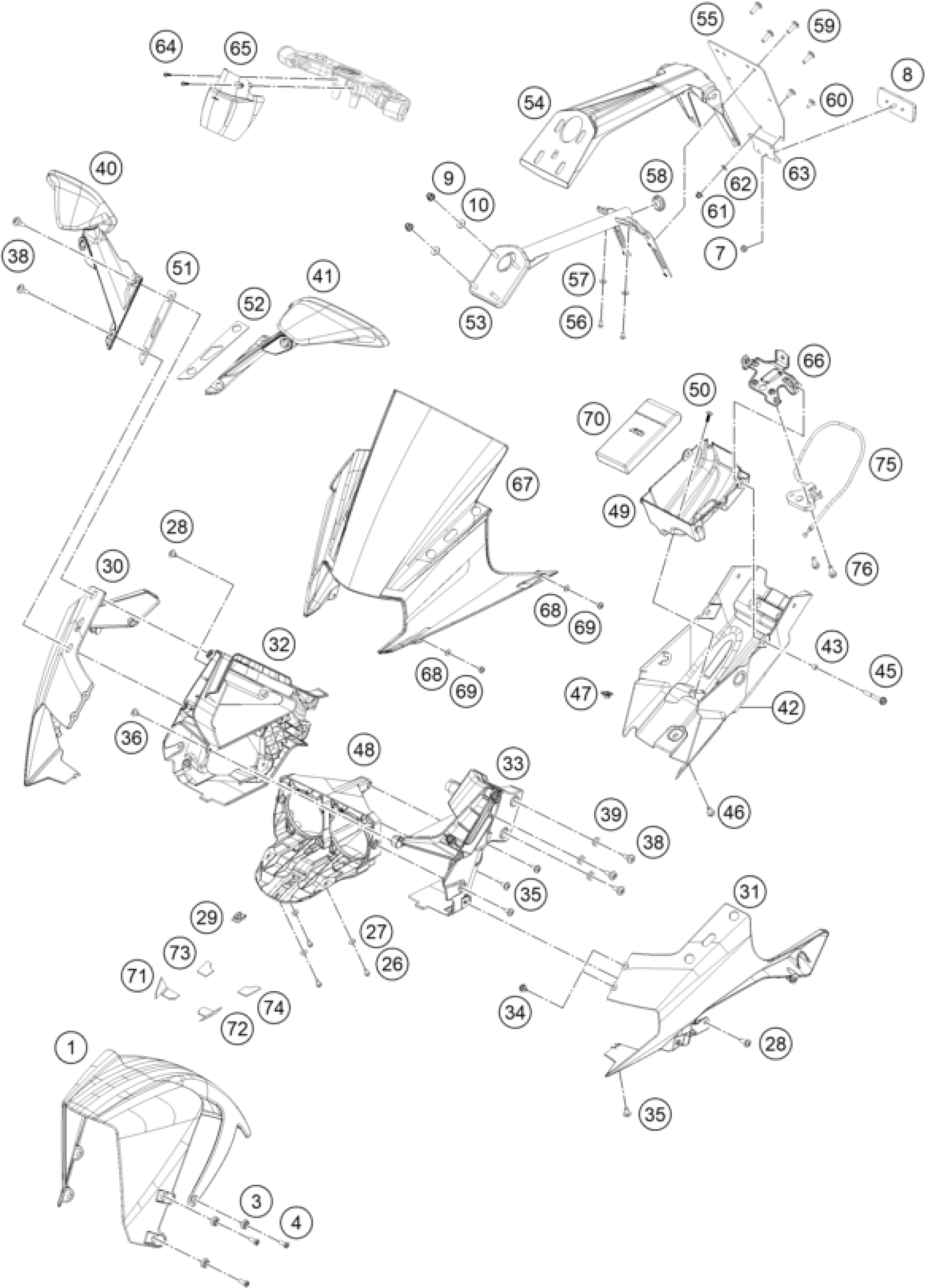

KTM RC 125 BLACK / ABS 2015 MASK, FENDERS Diagram

#

Description
Price

67

VISOR

90508008000

$54.97

1

FRONT FENDER CPL. BLACK

90508010033CA

$42.07

3

BUSHING FRONT FENDER

90808010050

$4.11

4

BOLT SOCKET M6X1XL

90808043001

$1.49

30

FRONT MASK RH. BLACK

9050800200033

$57.40

31

FRONT MASK LH. BLACK

9050800100033

$57.40

46

HH COLLAR SCREW M6X12

J025060129

$1.49

47

CLIP NUT M5

90108050001

$2.05

48

STRUCTURE HEAD LAMP

90514013000

$61.80

49

UTILITY BOX

90508021000

$5.23

51

RUBBER PAD R/S

90808006000

$4.11

52

RUBBER PAD L/S

90808005000

$4.11

53

NUMBER PLATE HOLDER STRUCTURE

90508016000

$24.86

54

NUMBER PLATE HOLDER

90508015000

$19.35

55

REAR FENDER EXT.

90808016000

$3.08

57

WASHER PLAIN SMALL 4,5X12X1

J021040004

$1.49

58

GROMMET NUMBER PLATE STRUCTURE

90508016010

$1.49

60

FLAT HEAD SCREW M5X12 PH

J005050123

$1.49

32

FAIRING STRUCTURE R/S

90508004000

$99.38

61

HEX NUT M5 AF8

90102031010

$1.49

63

REFLECTOR MOUNTING

90514044000

$2.05

34

EXPANDING RIVET

90114062001

$5.98

35

SOCKET HEAD BOLT M6X12

90508006001

$1.49

36

SOCKET HEAD BOLT M6X1X8

90508006004

$1.49

65

COVER IGNITION SWITCH

90508023000

$5.79

29

clip nut

90103097000

$4.11

28

SPECIAL SCREW M6X1X16

90808043000

$1.49

7

HH COLLAR NUT

90204060001

$1.49

8

REFLECTOR

90514045000

$3.08

9

Nut nyloc flanged M6X1XHT.9.1

90508016001

$1.49

10

COLLAR UNDER TRAY

90508016060

$1.49

40

MIRROR ARM RIGHT CPL.

90512041044

Unavailable

41

MIRROR ARM LEFT CPL.

90512040044

Unavailable

56

SHEET MET.SCR. DIN 7981 4,2X13

J981420133

$1.49

62

WASHER D=5,5

90508015010

$1.49

45

HH COLLAR SCREW M6X45

J025060454

$1.49

50

CHEESE-HEAD SCREW M5X16

J031050163

$1.49

27

WASHER D=5,5 BLACK

90514007010

$1.49

26

FLAT HEAD SCREW M5X10

J005050103

$1.49

38

STEP BOLT M6

90512042020

$2.05

39

WASHER 10X16X2,3

90508010010

$1.49

42

UNDER TRAY FRONT

90508019000

$13.46

43

SLEEVE UNDER TRAY

90508016050

$1.49

33

FAIRING STRUCTURE L/S

90508003000

$99.38

59

AH SCREW M6X1X20

90508006003

$4.11

68

SPECIAL WASHER

90808045000

$1.49

69

SPECIAL SCREW M6X1X10

90808073000

$1.49

70

TOOLKIT

90529099000

$32.90

71

PAD RUBBER SIDEMASK RH FR

90508042002

$2.05

72

PAD RUBBER SIDEMASK LH FR

90508041002

$2.05

73

PAD RUBBER SIDEMASK RH RR

90508042003

$2.05

74

PAD RUBBER SIDEMASK LH RR

90508041003

$2.05

75

SEAT LOCK CPL.

90507050033

$7.66

76

HH COLLAR SCREW M6X18 SW10

J025060183

$1.49

66

BRIDGE BRACKET SEAT MTG

90503002070

$7.47

64

SCREW SELF TAPING D=5X18

90511064000

$1.49
