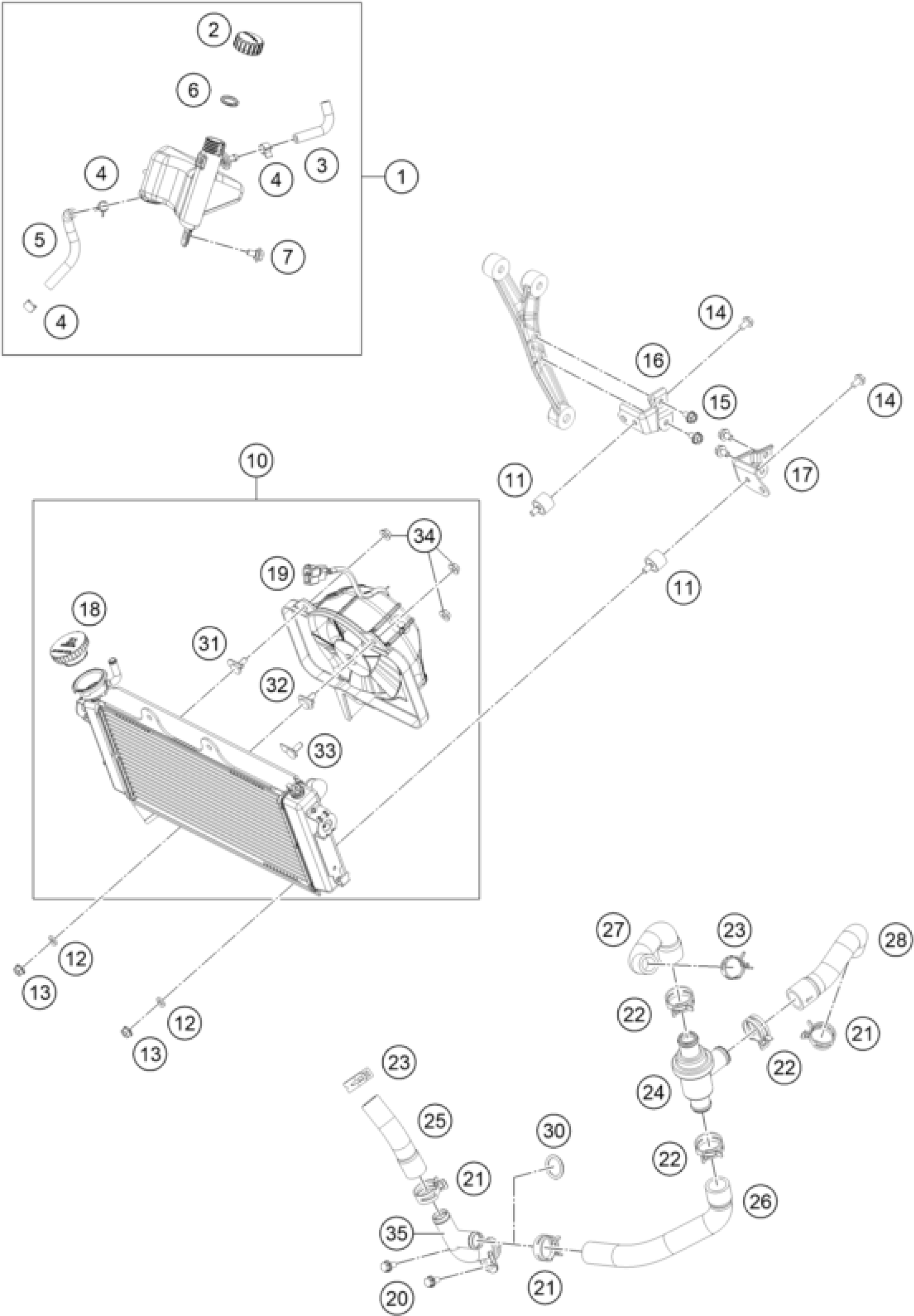

KTM RC 125 black / ABS 2014 COOLING SYSTEM Diagram

#

Description
Price

31

BRACKET FAN MOUNTING 1

90835041001

$2.05

32

BRACKET FAN MOUNTING 2

90835041002

$2.05

33

BRACKET FAN MOUNTING 3

90835041003

$2.05

34

FLANGED NUT

90835041004

$2.05

35

COOLING PIPE ''T'' CPL.

90135026000

$31.78

30

O-RING 18,5X3

J770018530

$2.05

1

EXPANSION TANK CPL.

90535065033

$21.03

6

COMPENSATING TANK O-RING

90102055000

$1.49

2

PLUG F. EXPANSION TANK

90135066000

$3.08

3

TUBE DRAIN

90507013008

$2.05

4

CLAMP 10MM

90107018011

$2.05

5

HOSE 6X10X154 MM

90135067050

$2.05

7

SPECIAL SCREW M6X12 FLANGED

90135074000

$2.05

10

RADIATOR CPL. WITH FAN

90835010133

$362.30

11

silentbloc M6

90235001001

$5.23

12

WASHER SPRING B6

J127060003

$1.49

13

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

$2.05

14

HH COLLAR SCREW M6X8 SW10

J026060083

$1.49

15

HH COLLAR SCREW M6X10 SW10

J025060103

$1.49

16

BRACKET RADIATOR MOUNTING R/S

90503006001

Unavailable

17

BRACKET RADIATOR MOUNTING L/S

90503005001

Unavailable

21

hose clamp D26

90135020001

$3.08

22

HOSE CLAMP D28

90135020003

$3.08

23

HOSE CLAMP D23

90135020000

$3.08

24

THERMOSTAT

90135017000

$33.56

25

HOSE RADIATOR TO PIPE ''T''

90535024000

Unavailable

26

RADIATORHOSE THERM.-COOL.PIPE

90135024010

Unavailable

27

HOSE RADIATOR TO THERMOSTAT

90535025000

Unavailable

20

COLLAR SCREW M6X12

90135099000

$1.49

28

COOLING HOSE ENGINE - THERM.

90135025100

Unavailable

18

RADIATOR CAP

90135016100

$17.20

19

FAN CPL.

90835041033

$168.85
