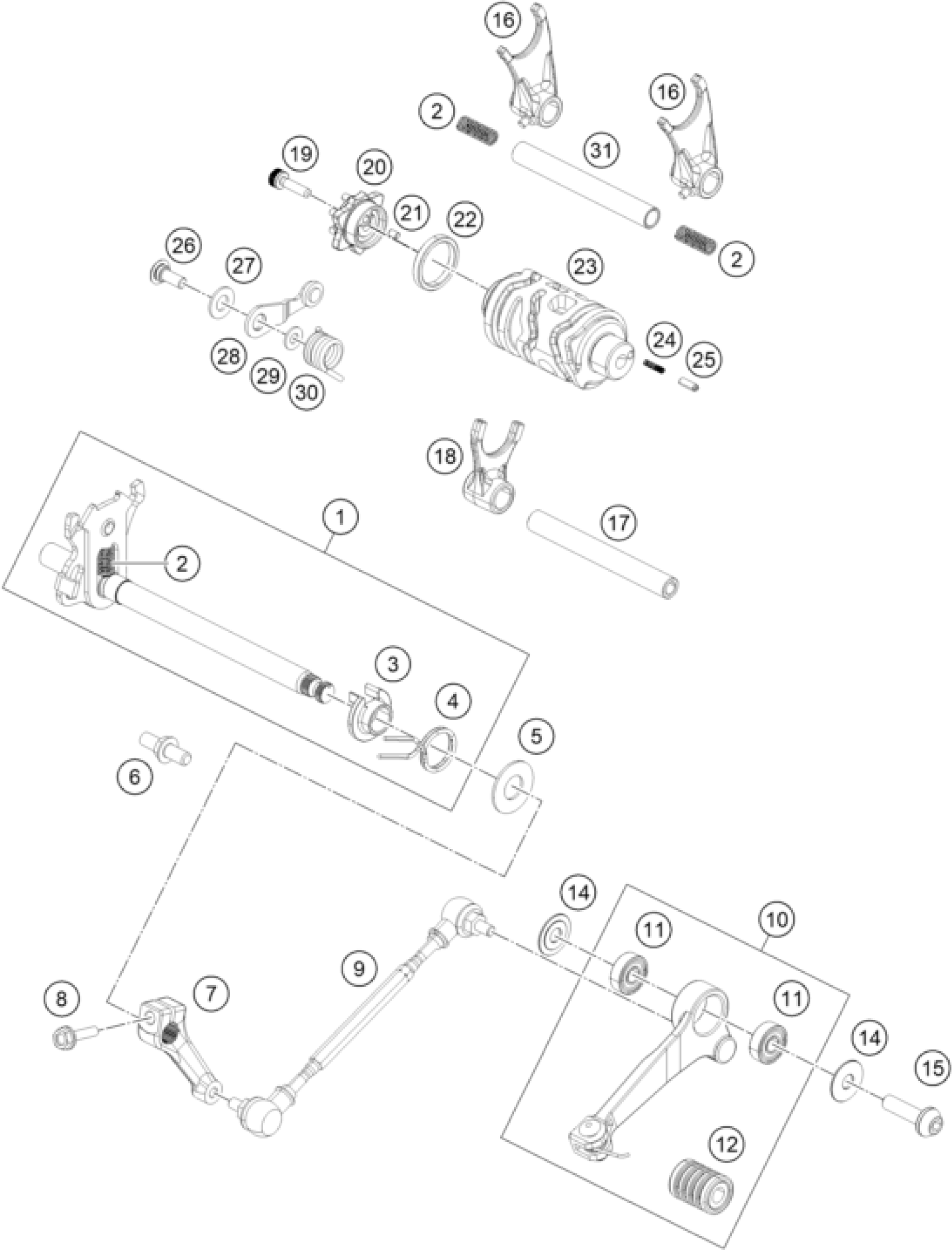

KTM RC 125, black 2022 SHIFTING MECHANISM Diagram

#

Description

Price

1

SHIFT SHAFT CPL.

90134005033

Unavailable

2

TENSION SPRING

90134009000

Unavailable

3

SPRING BUSHING

90134022000

Unavailable

4

RETURN SPRING

90134014000

Unavailable

5

STOP DISK 14X30X1,5

90134050000

Unavailable

6

SPRING GUIDE

90134016000

Unavailable

7

BAFFLE SHIFT LEVER

90634031010

Unavailable

8

HH COLLAR SCREW M6X22 SW10

J025060223

Unavailable

9

ROD ASSEMBLY TIE

94534036044

Unavailable

10

Gear shift lever cmpl.

94534031044

Unavailable

11

BALL BEARING 608

J625060800

Unavailable

12

Pedal rubber

95834035000

Unavailable

14

WASHER SHIFTING LEVER

90534031020

Unavailable

15

BOLT SHIFT LEVER

90534034300

Unavailable

16

Shift fork

93034001000

Unavailable

17

GEAR SHIFT RAIL

90134019000

Unavailable

18

SHIFT FORK MAIN

90134001000

Unavailable

19

Bolt socket head M6X1X20 L-pre

90134098000

Unavailable

20

SHIFT DRUM LOCATING

90134015000

Unavailable

21

Parallel pin

90134013000

Unavailable

22

SPACER

90134012002

Unavailable

23

Shift drum

93534012000

Unavailable

24

CONTACT SPRING

90134012003

Unavailable

25

BOLT FOR GEAR INDICATOR

90134012001

Unavailable

26

SCREW LOCKING LEVER

90134025000

Unavailable

27

WASHER LOCKING LEVER

90134030000

Unavailable

28

LOCKING LEVER CPL.

90134024033

Unavailable

29

Washer, 6x14x1.2

J125061416

Unavailable

30

ARRESTING LEVER SPRING

90134023000

Unavailable

31

GEAR SHIFT RAIL COUNTER

90134190000

Unavailable
