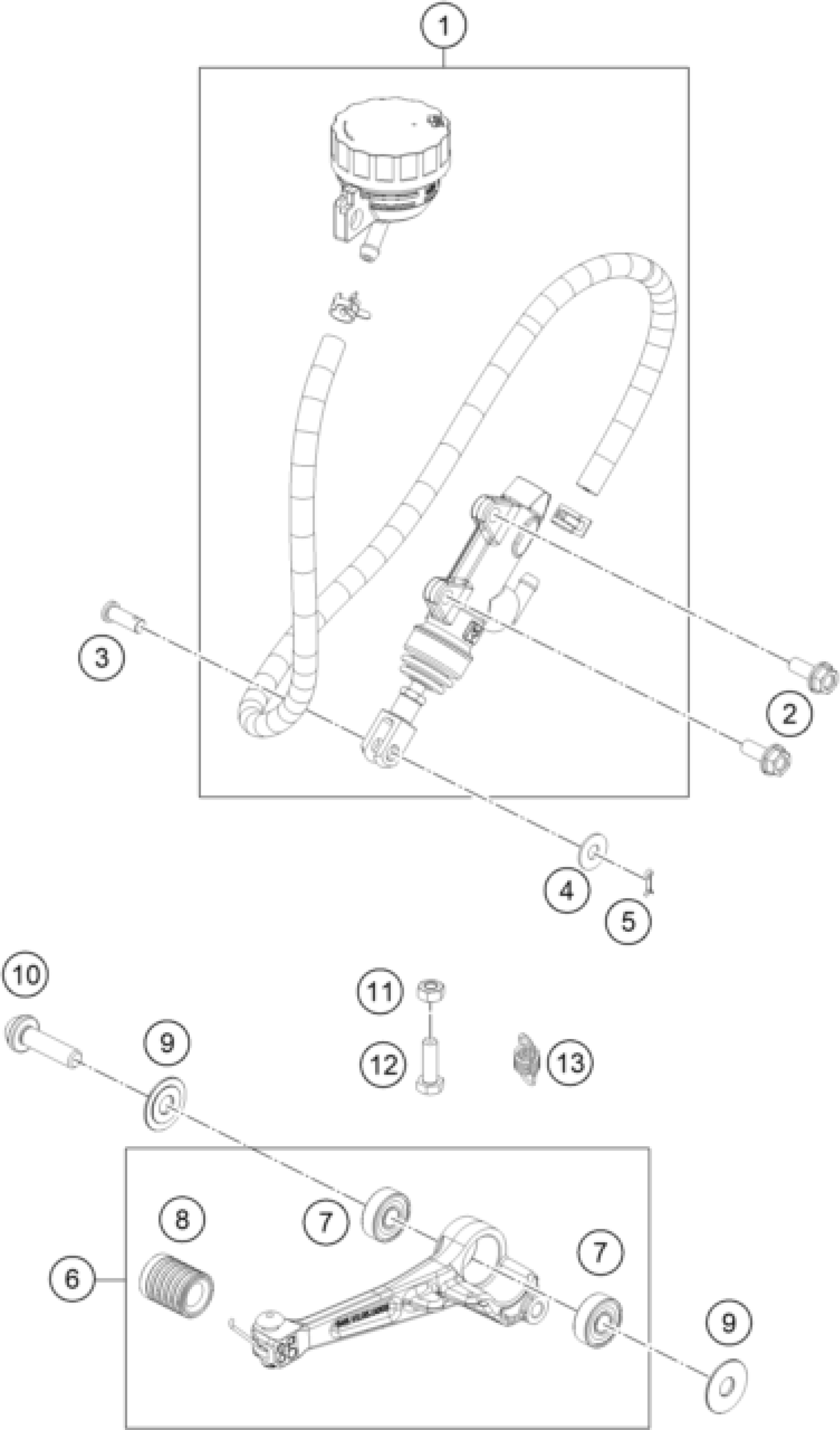

KTM RC 125, black 2022 REAR BRAKE CONTROL Diagram

#

Description
Price

1

CYLINDER ASSEMBLY MASTER REAR

94813060033

$61.05

2

HH COLLAR SCREW M6X16

90130059000

$1.49

3

pin clevis dia 6

J920000602100

$1.49

5

splint pin 2x15mm

J094020153

$1.49

4

Washer nylon 6.5X16X1

J125070001

$1.49

6

Rear brake lever cmpl.

94513050044

$86.57

7

BALL BEARING 608

J625060800

$7.94

8

Pedal rubber

95834035000

$1.49

10

BOLT SHIFT LEVER

90534034300

$3.08

9

WASHER SHIFTING LEVER

90534031020

$2.05

13

brake pedal spring

90113052000

$2.05

12

BOLT-KAA ST-D DIA-06 L-20

J900000602003

$1.49

11

nut hex thick

J934060001

$1.49
