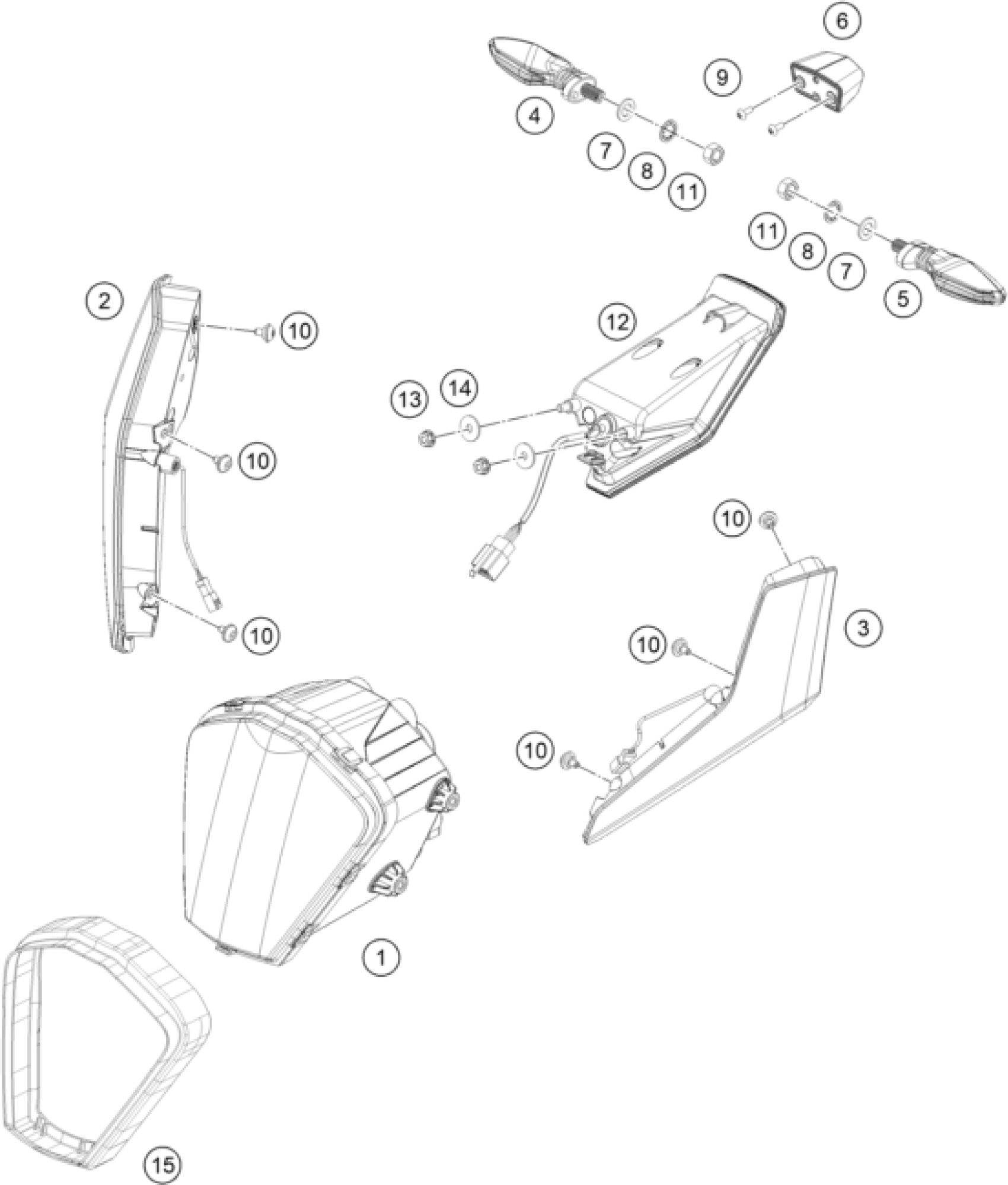

KTM RC 125, black 2022 LIGHTING SYSTEM Diagram

#

Description

Price

1

lamp head

94814001000

Unavailable

2

Front right turn signal

94514026000

Unavailable

3

Front left turn signal

94514025000

Unavailable

4

FLASHER REAR R/S

90514036100

Unavailable

5

FLASHER REAR L/S

90514035100

Unavailable

6

LICENSE PLATE ILLUMINATION

90114047000

Unavailable

7

Washer M10

J125100009

Unavailable

8

Toothed washer, M10

J06797100183

Unavailable

9

CROSS PAN SCREW 4X12 PH

J081040121

Unavailable

10

Screw button head step M5x6.5

J900000500900

Unavailable

11

Hex nut, M10

J934100001

Unavailable

12

Tail light

94514040000

Unavailable

13

FLANGED NUT M6 WS10 SELF LOCK.

J926060000

Unavailable

14

PLAIN WASHER

90814044000

Unavailable

15

beading lamp head

94814001050

Unavailable
