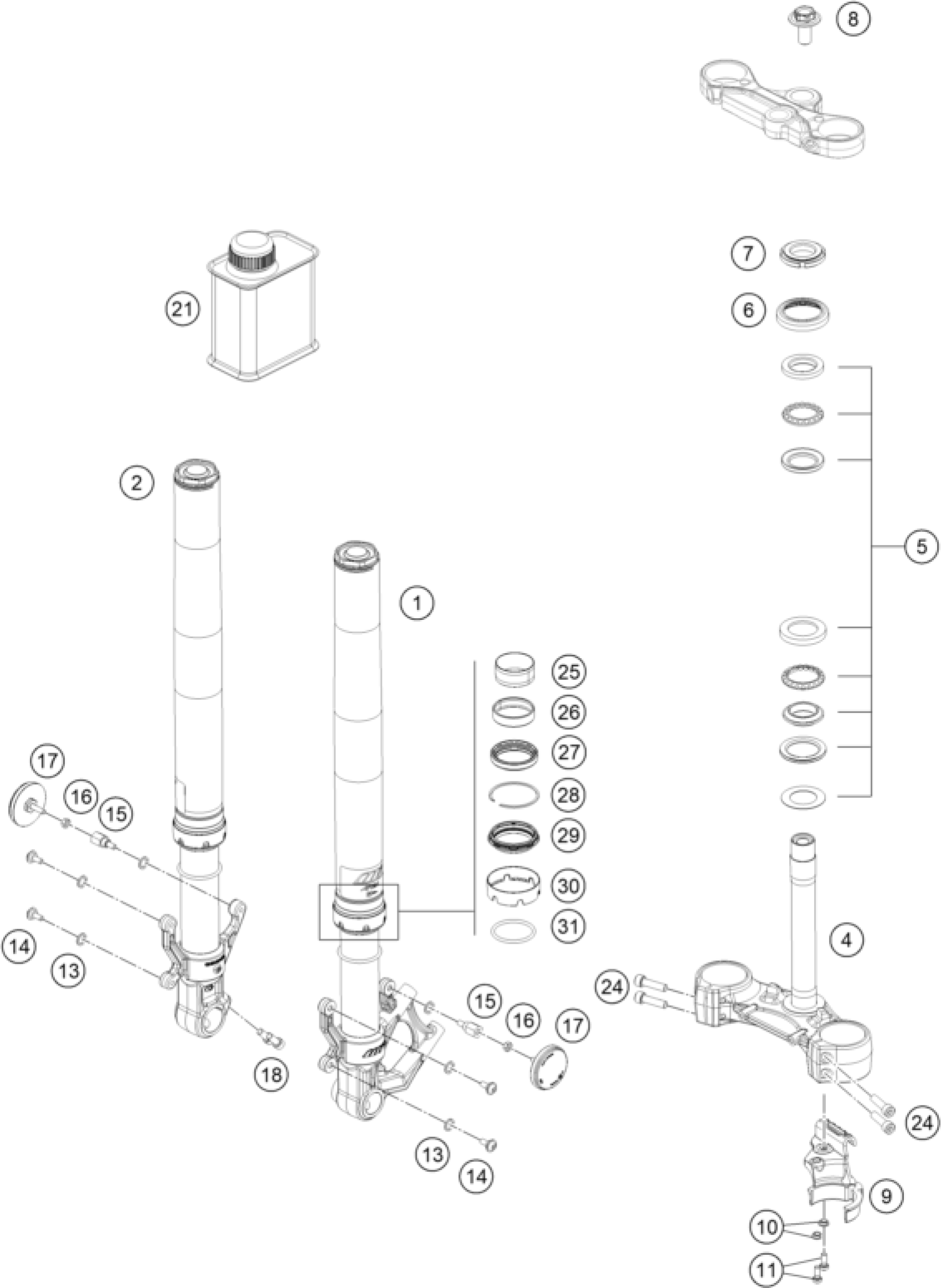

KTM RC 125, black 2022 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

leg assembly LH

94501001000

Unavailable

2

leg assembly RH

94501002000

Unavailable

4

Bottom triple clamp

94501032035

Unavailable

5

STEERING HEAD BEARING-KIT

90101080044

Unavailable

6

protection cap

90101086000

Unavailable

7

Adjusting ring steering head

90101036100

Unavailable

8

steering head screw

90501044000

Unavailable

9

Hose clamp

93013055000

Unavailable

10

sleeve for hose clamp

90113055010

Unavailable

11

AH SCREW M6X15 10.9

J021060156

Unavailable

13

Washer nylon

93009059000

Unavailable

14

Panhead screw with shoulder

J031050161

Unavailable

15

Reflector holder

94512082010

Unavailable

16

NUT HEX THICK

J910000600505

Unavailable

17

Side reflector

94512082000

Unavailable

21

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

24

AH SCREW M8X1.25X30

90501045000

Unavailable

25

GUIDE BUSH LOWER

43578014

Unavailable

26

GUIDE BUSH UPPER

43578016

Unavailable

27

Shaft seal SKF 43x52,9x11,4 bl

43570623

Unavailable

28

CIRCLIP

43578044

Unavailable

29

Dirt scarper SKF 43mm black

43570624

Unavailable

30

Fork protection ring d43

43578206

Unavailable

31

O-ring 40x2,5 VMQ70 red ISO 36

43578219

Unavailable

18

SOCKET HEADED BOLT M8X1.25X20

J900000802002

Unavailable
