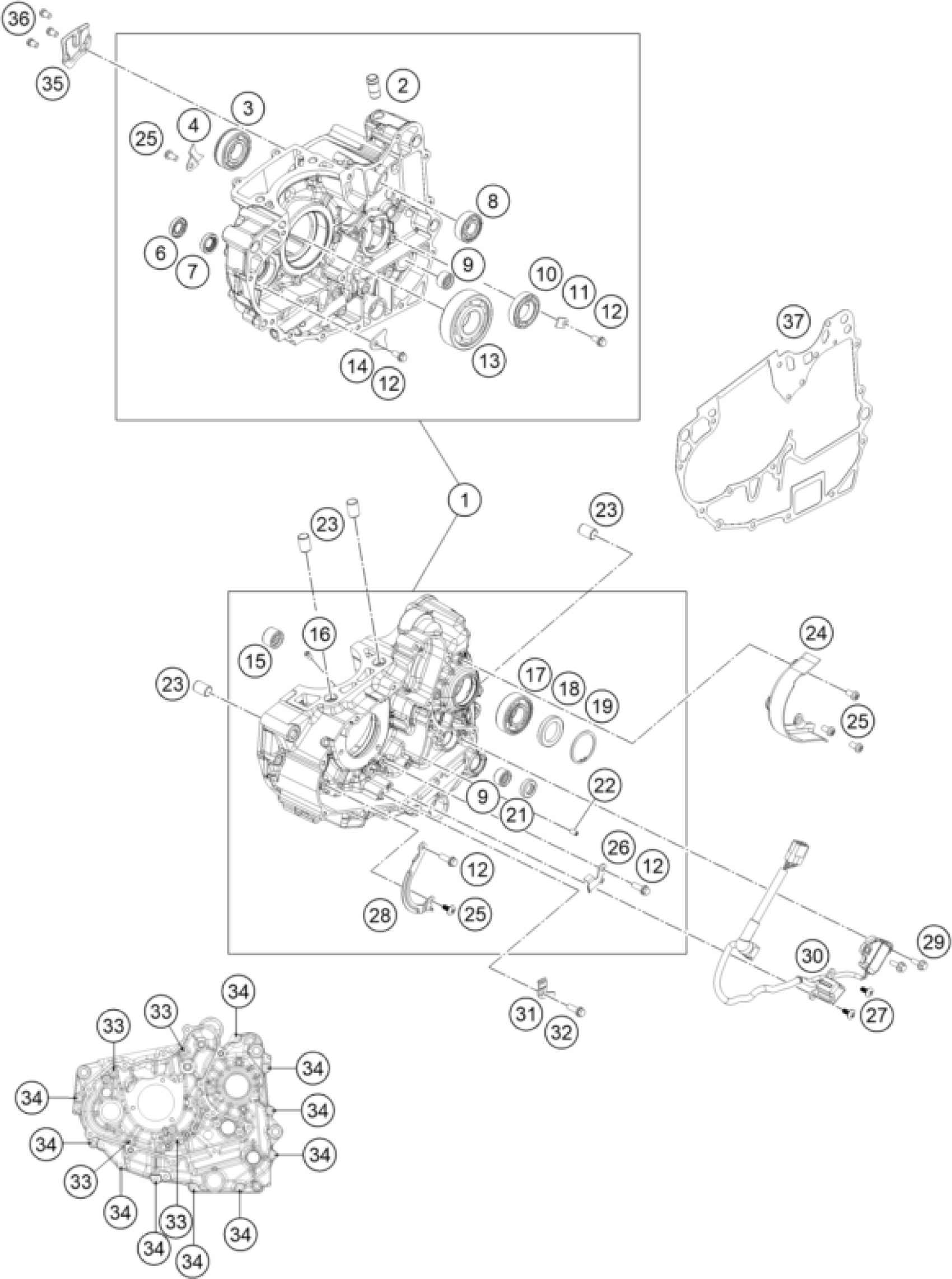

KTM RC 125, black 2022 ENGINE CASE Diagram

#

Description
Price

1

Kit Cr' Case KTM 200 MY20

93530000044

$811.10

2

Pipe breather

90230022000

$3.08

3

GROOVED BALL BEARING 6204

J625062040

$10.56

4

LOCK WASHER F.BEARING DRIVE

90130004002

$1.49

6

SHAFT SEALING RING 12X24X5,5

J760122455

$7.75

7

Shaft seal ring 12x24x6

0760122406

$5.60

8

BALL BEARING 15X35X11

90130004003

$7.56

9

NEEDLE ROLLER BEARING HK1312

J618131912

$5.23

10

Bearing ball

90130004004

$14.58

11

LOCK WASHER

90130078000

$1.49

12

Hex collar screw, M6x12

J01665060123S

$11.68

13

BALL BEARING 63/2/8 HN3CNP

90130082000

$22.99

14

STOPPER BALANCER SHAFT BEARING

90230079000

$1.49

15

NEEDLE BEAR. HK1514RS 15X21X14

J618152114

$6.07

16

OIL NOZZLE

90130164000

$27.57

17

BALL BEARING 6204-Z/HN3

J625062041

$11.12

18

OIL SEAL OUTPUT SHAFT

90230077000

$4.11

19

CIRCLIP 37X1,5

J472037150

$1.49

21

Seal - oil

90130003004

$2.05

22

OILJET

90130058000

$2.05

23

DOWEL D14

90130003007

$2.05

24

CHAIN GUARD

90130047000

$5.23

25

SCREW PAN CROSS M6X12 PH SS

J005060123S

$1.49

26

CABLE SUPPORT BELOW

90130003005

$2.05

27

HH COLLAR SCREW M5X13 SW8

J011050133

$1.49

28

Bracket harness upper

90530003001

$1.49

29

FLANGED BOLT M5X16

J025050163S

$1.49

30

gear sensor

93311023000

$104.90

31

BRACKET F. FREE WHEEL GEAR

90140020002

$1.49

32

bolt flanged-m6x1xl16xbrxpreco

0028060164

Unavailable

33

Bolt flanged M6X60

90130096000

$1.49

34

HH COLLAR SCREW M6X40

J025060401

$1.49

35

BREATHER PLATE

90630042000

$1.49

36

Screw M5X10

90130042010

$1.49

37

ENGINE CASE GASKET

90630039000

$20.00
