COOLING SYSTEM

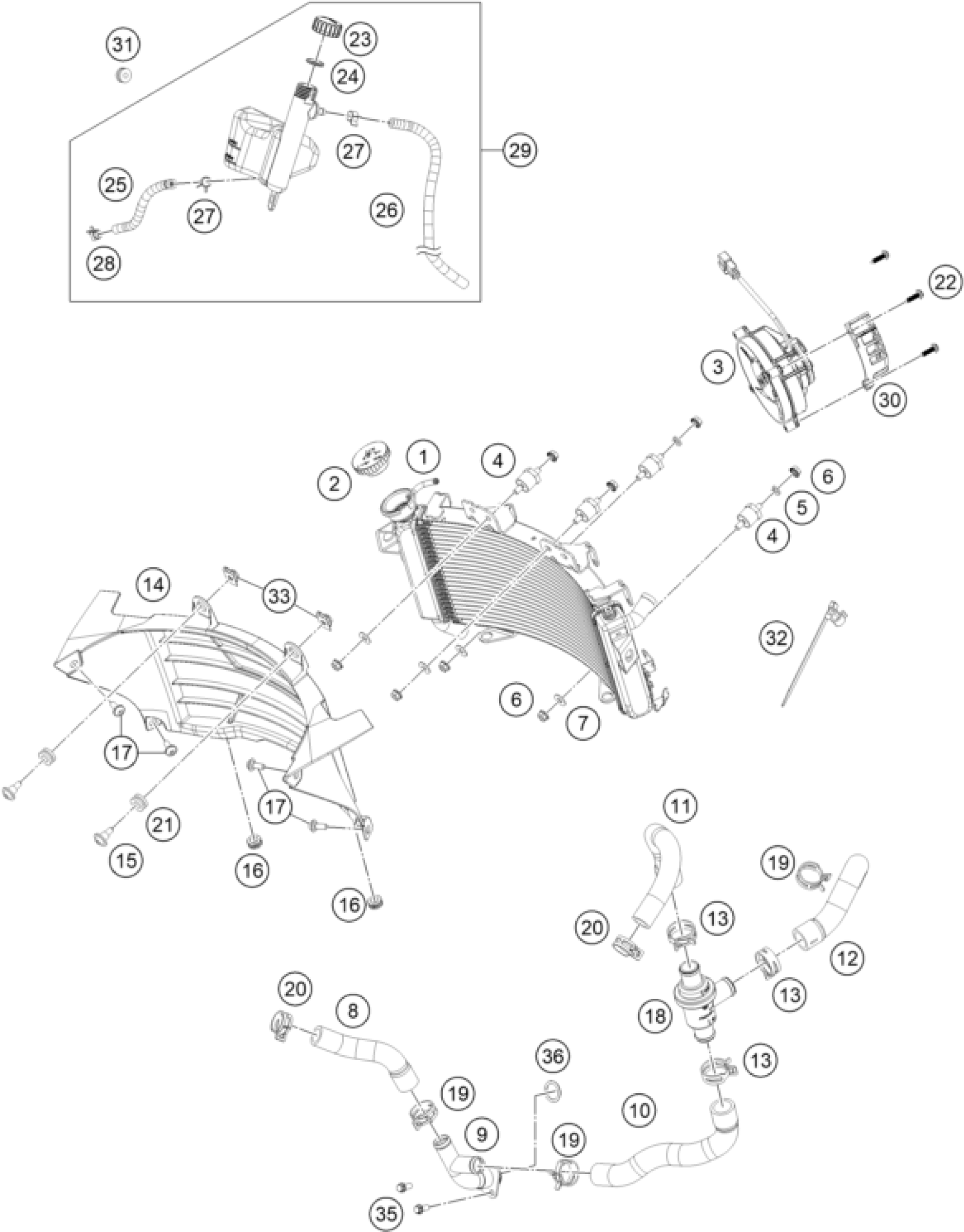

KTM RC 125, black 2022 COOLING SYSTEM Diagram
#
18
THERMOSTAT
90135017000
Unavailable
10
Pipe thermostat-joint t pcs.
94035026000
Unavailable
12
Radiator hose
93035028000
Unavailable
11
PIPE THERMOSTAT-RADIATOR
94635025000
Unavailable
8
PIPE RADIATOR-CONNECTOR
94635024010
Unavailable
19
hose clamp D26
90135020001
Unavailable
20
HOSE CLAMP D23
90135020000
Unavailable
13
HOSE CLAMP D28
90135020003
Unavailable
1
Radiator
95835010000
Unavailable
2
RADIATOR CAP
90135016100
Unavailable
3
Radiator fan, cmpl
95835041044
Unavailable
14
SHROUD RADIATOR
94535036000
Unavailable
17
SCREW BUTTON HEAD STEP M6X1
J900000601404
Unavailable
16
Rubber grommet
95835016000
Unavailable
15
screw butn hd-m6x1xl10xblkxste
J031060101
Unavailable
21
Rubber bushing
93014017000
Unavailable
29
TANK ASSEMBLY EXPANSION
94535065033
Unavailable
24
COMPENSATING TANK O-RING
90102055000
Unavailable
27
CLAMP 10MM
90107018011
Unavailable
28
Spring clip 9.5
J300000801000
Unavailable
25
PIPE TANK EXPANSION-CONNECTOR
J6000000517000
Unavailable
23
PLUG F. EXPANSION TANK
90135066000
Unavailable
26
Hose
J600000645500
Unavailable
30
COVER FAN LH
94835044010
Unavailable
22
SCREW TAPPING PAN DIA 4.8
J900000501900
Unavailable
4
SILENTBLOCK M6
93335001000
Unavailable
6
nut hex flange-m6x1xht.6xcl4xb
J926060003
Unavailable
5
Spring ring B6
J127060001
Unavailable
32
Strap-clip swivel
95835068000
Unavailable
7
washer plain-id6.5xod16xthk1xb
J125070004
Unavailable
31
GROMMET EXPANSION TANK
90135065050
Unavailable
9
COOLANT PIPE T
90635071033
Unavailable
33
Range change metal nut M6
93008084010
Unavailable
36
O-RING 18,5X3
J770018530
Unavailable
35
Hex collar screw M6X14
J025060141
Unavailable
