Description

Price

1

Clutch cover complete

93530026044

$69.28

2

Clutch cover gasket

93530027100

$5.79

3

Shaft

93532048033

Unavailable

4

SPRING F. RELEASE LEVER

90132048004

$2.05

5

WASHER 12,5X24X0,8MM

90132048005

$1.49

6

OIL SEAL RING

90132051000

$3.08

7

needle bearing

90132050000

$5.23

8

OIL PLUG CPL.

90130020000

$1.49

9

O-RING 13,8X2,4

J770013824

$1.49

10

WIRE CIRCLIP 28X1,5

90130095001

$2.05

11

OIL GAUGE GLASS

90130095100

$5.60

12

HH COLLAR SCREW M6X30

J025060301

$1.49

13

PUSH ROD

90132054000

$2.05

14

Seal - Oil

90134027000

$2.05

15

Plate Position

90130026003

$1.49

16

Hex collar screw, M6x12

J01665060123S

$11.68

17

PIN DOWEL 8X6,4X14MM

90130024000

$1.49

18

OIL JET

90130064000

$6.07

19

Retaining bracket

93030059000

Unavailable

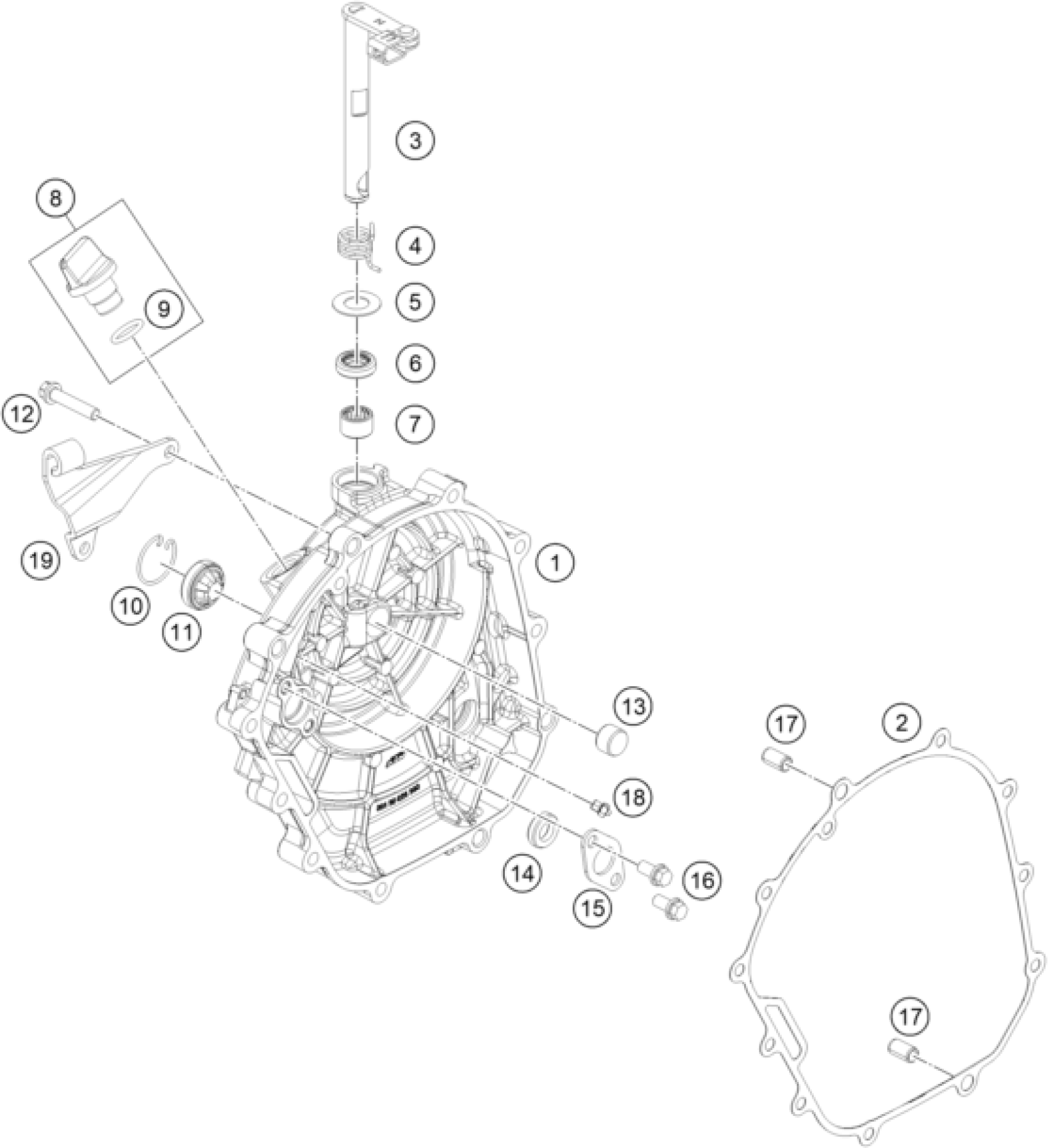

KTM RC 125, black 2022 CLUTCH COVER Diagram

Clutch cover complete

Clutch cover gasket

Shaft

SPRING F. RELEASE LEVER

WASHER 12,5X24X0,8MM

OIL SEAL RING

needle bearing

OIL PLUG CPL.

O-RING 13,8X2,4

WIRE CIRCLIP 28X1,5

OIL GAUGE GLASS

HH COLLAR SCREW M6X30

PUSH ROD

Seal - Oil

Plate Position

Hex collar screw, M6x12

PIN DOWEL 8X6,4X14MM

OIL JET

Retaining bracket
