10- Battery And Electrical Accessories

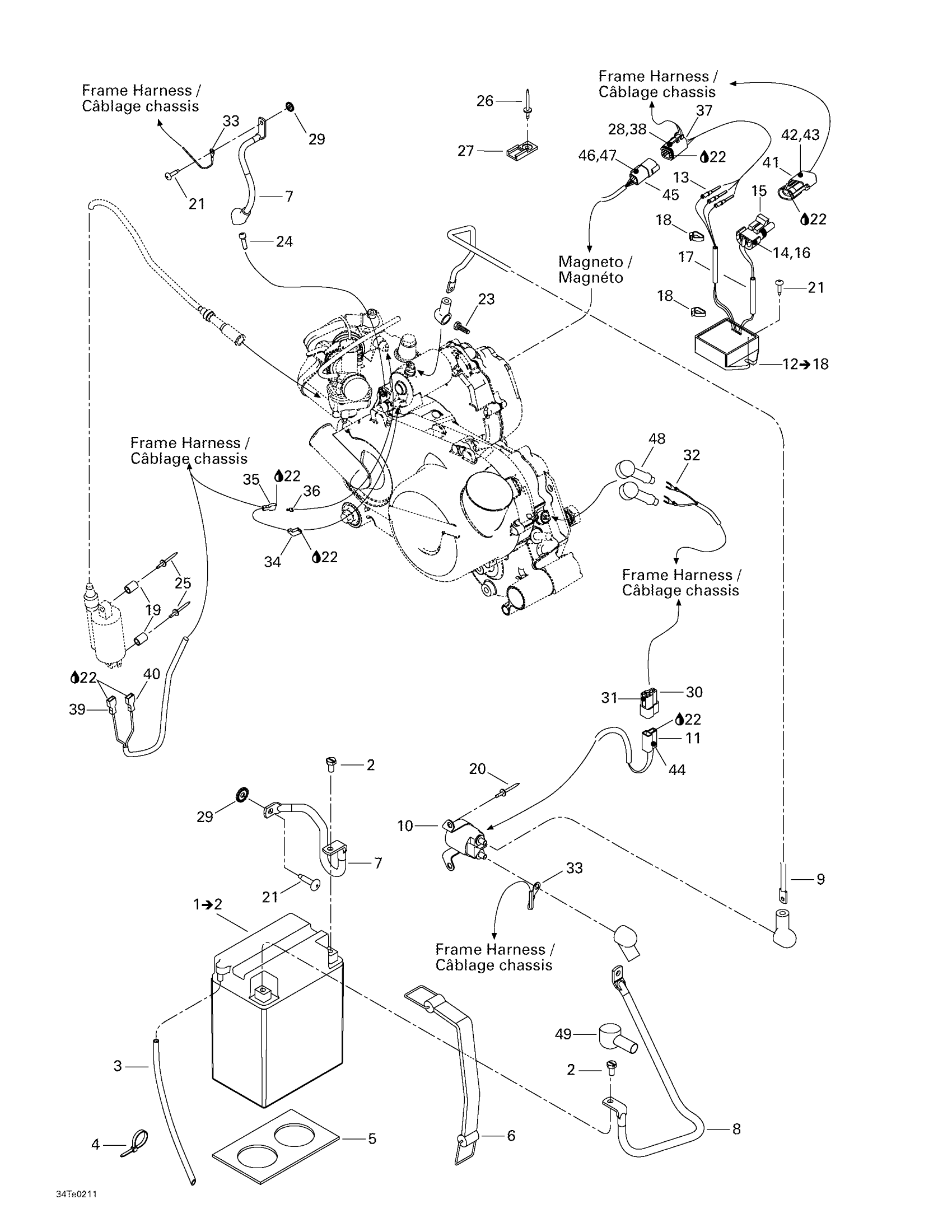

Can-Am Rally, 2003 10- Battery And Electrical Accessories Diagram
#
1
Battery, 13 Amperes
715000194
Unavailable
2
Battery Fastener Kit
703500179
Unavailable
3
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
4
Tie-Rap 180 mm
414115200
Unavailable
5
RUBBER PROTECTOR - Call your local BRP dealership
710000241
Unavailable
6
Battery Strap
515176044
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
POSITIVE CABLE - Call your local BRP dealership
710000232
Unavailable
10
Starter Relay
515176011
Unavailable
11
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
12
Voltage regulator | Includes 12 - 18.
710000234
Unavailable
13
FEMALE TERMINAL - Call your local BRP dealership
278001661
Unavailable
14
Female Terminal
409007300
Unavailable
15
Male Connector, 2 Circuits
278000220
Unavailable
16
Wire Seal
278000218
Unavailable
17
LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership
409901300
Unavailable
18
Tie Wrap 94 mm | 4X4
293750001
Unavailable
19
Spacer
293900046
Unavailable
20
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
21
Torx Screw M6 X 25 | XT Models
250000728
Unavailable
22
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
23
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
210251180
Unavailable
24
Socket Head Screw M6 X 20
205062044
Unavailable
25
Pop Rivet 3/16”
293150093
Unavailable
26
Pop Rivet 3/16"
390402200
Unavailable
27
Clip
270000141
Unavailable
28
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
29
External Serrated Lock Washer 6 mm
234461608
Unavailable
30
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
31
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
32
Spade Terminal
710000289
Unavailable
33
Open Barrel Terminal
278001392
Unavailable
34
Female Terminal
409010300
Unavailable
35
RH High Light Support
710001115
Unavailable
36
FEMALE TERMINAL - Call your local BRP dealership
710000114
Unavailable
37
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
38
Female Terminal
278000632
Unavailable
39
Female Terminal
409010700
Unavailable
40
Female Terminal
710000082
Unavailable
41
Female Housing, 2 Circuits
278000217
Unavailable
42
Male Terminal
409004300
Unavailable
43
Wire Seal
278000218
Unavailable
44
Female Terminal
561503100
Unavailable
45
Male Terminal Housing, 6 Circuits
710001539
Unavailable
46
Male Terminal
278000631
Unavailable
47
Female Lock, 6 Circuits
278000735
Unavailable
48
Cap
710000352
Unavailable
49
Protector Cap
710000319
Unavailable
