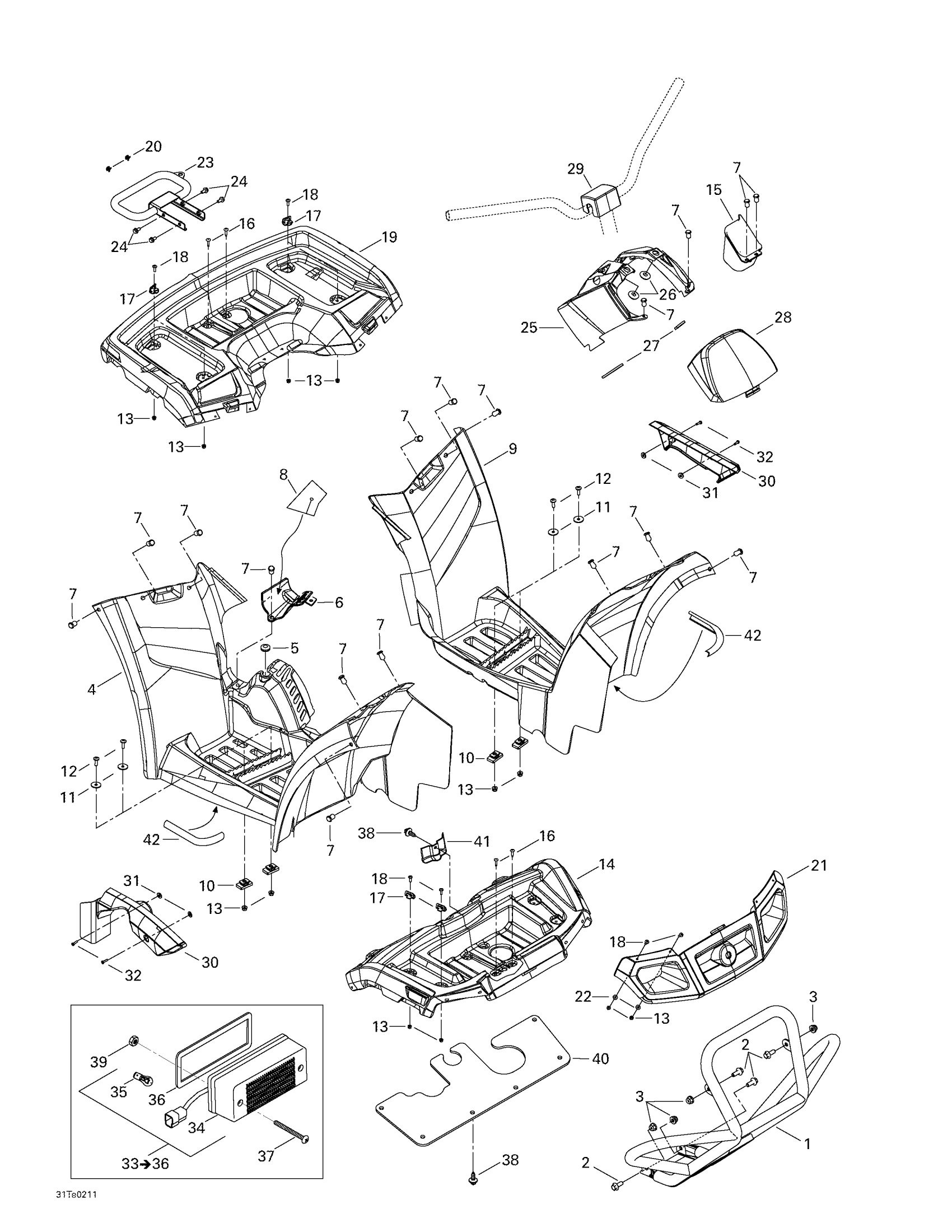

Can-Am Rally, 2003 09- Body And Accessories Diagram

#

Description
Price

1

Front Bumper

705000346

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

Unavailable

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

RH Foot-well, artillery Green, b-204)

705000348

Unavailable

Viper Red, RH Foot-Well

705000515

Unavailable

RH Foot-Well, Yellow B-190

705000516

Unavailable

5

Grommet

293720062

Unavailable

6

Chain Cover

705000410

Unavailable

7

Tuflok Plastic Rivet

293150230

Unavailable

8

Reflective Sheet

705000563

Unavailable

9

LH Foot-well, artillery Green, b-204)

705000349

Unavailable

Viper Red, LH Foot-Well

705000521

Unavailable

LH Foot-Well, Yellow B-190

705000522

Unavailable

10

Rubber Stopper

705000407

Unavailable

11

Washer M6

250200029

Unavailable

12

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

14

Front Luggage Rack

705000350

Unavailable

15

Cup

705000451

Unavailable

16

Torx Screw M6 X 25 | XT Models

250000728

Unavailable

17

HOOK - Call your local BRP dealership

705000560

Unavailable

18

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

19

Rear Fender, green, b-204)

705000351

Unavailable

20

Nut

250010035

Unavailable

21

Front Fascia (Artillery Green (B-204))

705000352

Unavailable

Viper Red, Front Fascia

705000524

Unavailable

Front Fascia (Yellow (B-190))

705000525

Unavailable

22

Flat Washer

224060201

Unavailable

23

Rear Bumper

705000353

Unavailable

24

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

25

Dash Board, green, b-204)

705000364

Unavailable

Viper Red, Dash Board

705000527

Unavailable

Dash Board, Yellow B-190

705000528

Unavailable

26

Oval Washer

705005156

Unavailable

27

Windshield Latch

570023800

Unavailable

28

Console Cover, green(b-204)

705000370

Unavailable

Viper Red, Console Cover

705000530

Unavailable

Console Cover, Yellow B-190

705000531

Unavailable

29

COVER - Call your local BRP dealership

705000371

Unavailable

30

RH Cover

705000564

Unavailable

LH Cover

705000565

Unavailable

31

Rubber Spacer

414454400

Unavailable

32

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

33

Tail Light Housing

710000102

Unavailable

34

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

35

Bulb

520000758

Unavailable

36

GASKET - Call your local BRP dealership

710000129

Unavailable

37

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

38

Black, Dart

293730011

Unavailable

39

Hex. Flange Elastic Nut M5

233251414

Unavailable

40

Deflector

705000632

Unavailable

41

Deflector

705000633

Unavailable

42

Gasket, Neoprene 2000Mm Long

219704476

Unavailable
